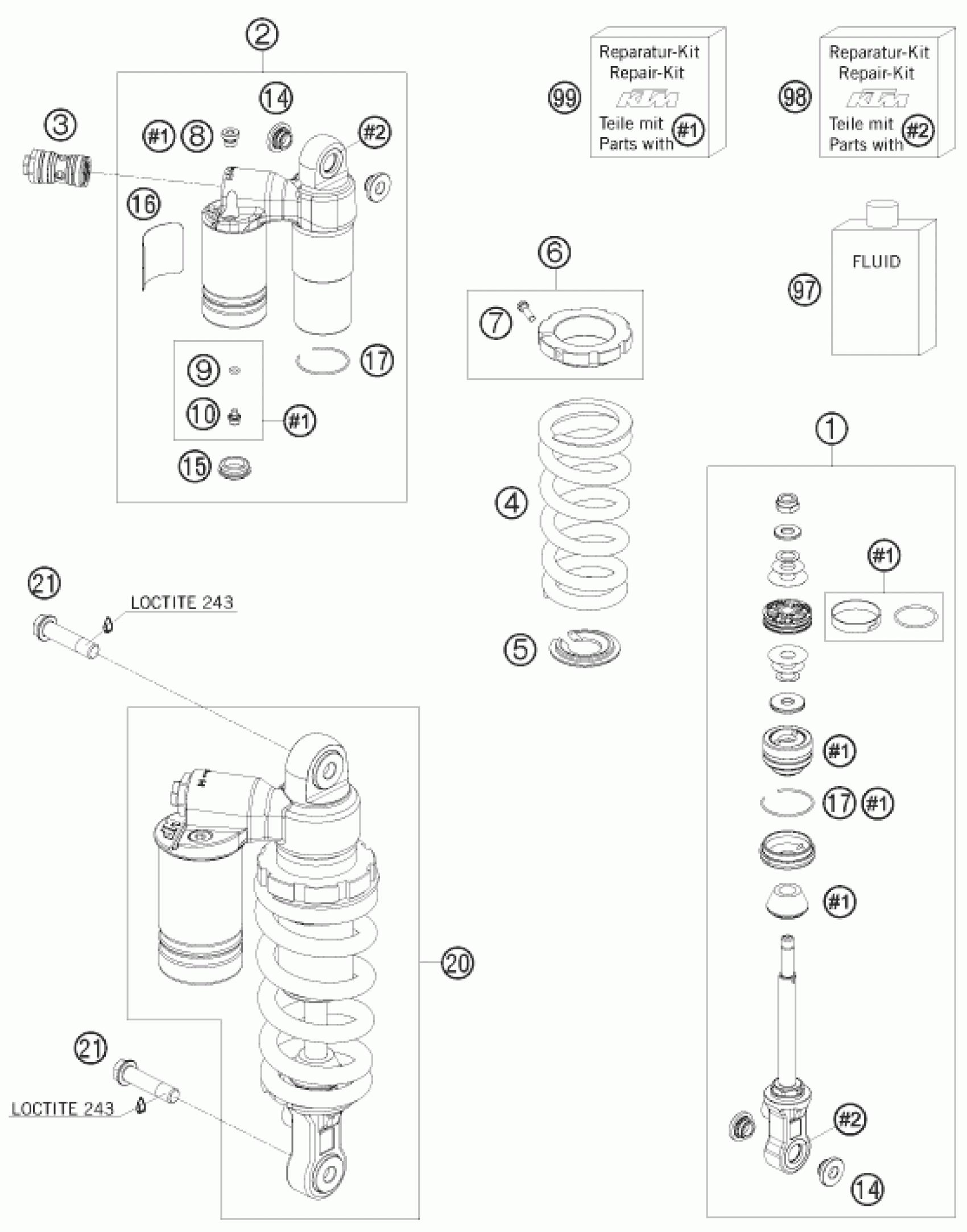

KTM 1190 RC8 BLACK 2010 SHOCK ABSORBER Diagram

#

Description
Price

1

MONOSHOCK LOWER PART CPL.

36120781SA

Unavailable

2

MONOSHOCK TOP PART CPL. 08

40140331S1

Unavailable

3

Compression cpl.

46180533S1

Unavailable

4

SPRING (55) 95N/MM 160 D=10,75

91750002S

Unavailable

5

SPRING RETAINER

36120559

Unavailable

6

ADJUSTING RING + SCREW M5

40140342S

Unavailable

7

AH SCREW DIN0912-M 5X20

0912050203

Unavailable

8

HS cylinder-head screw R1/8 l8

50180095

Unavailable

9

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

10

HS lock screw M5x6

36120151

Unavailable

14

ADAPTER BUSHING 10X24

40140337

Unavailable

15

Rubber cap do not open 22x5,5

46811208

Unavailable

16

STICKER WP KTM

52000079

Unavailable

17

Round-wire snap ring 43x1,5

40140332

Unavailable

20

MONOSHOCK RC8 09

17187E07

Unavailable

21

HH COLLAR SCREW M10X42 WS13 08

69004089000

Unavailable

97

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

Unavailable

98

REPAIR KIT BEARING/SEAL

R12019

Unavailable

99

REPAIR KIT

R17005

Unavailable
