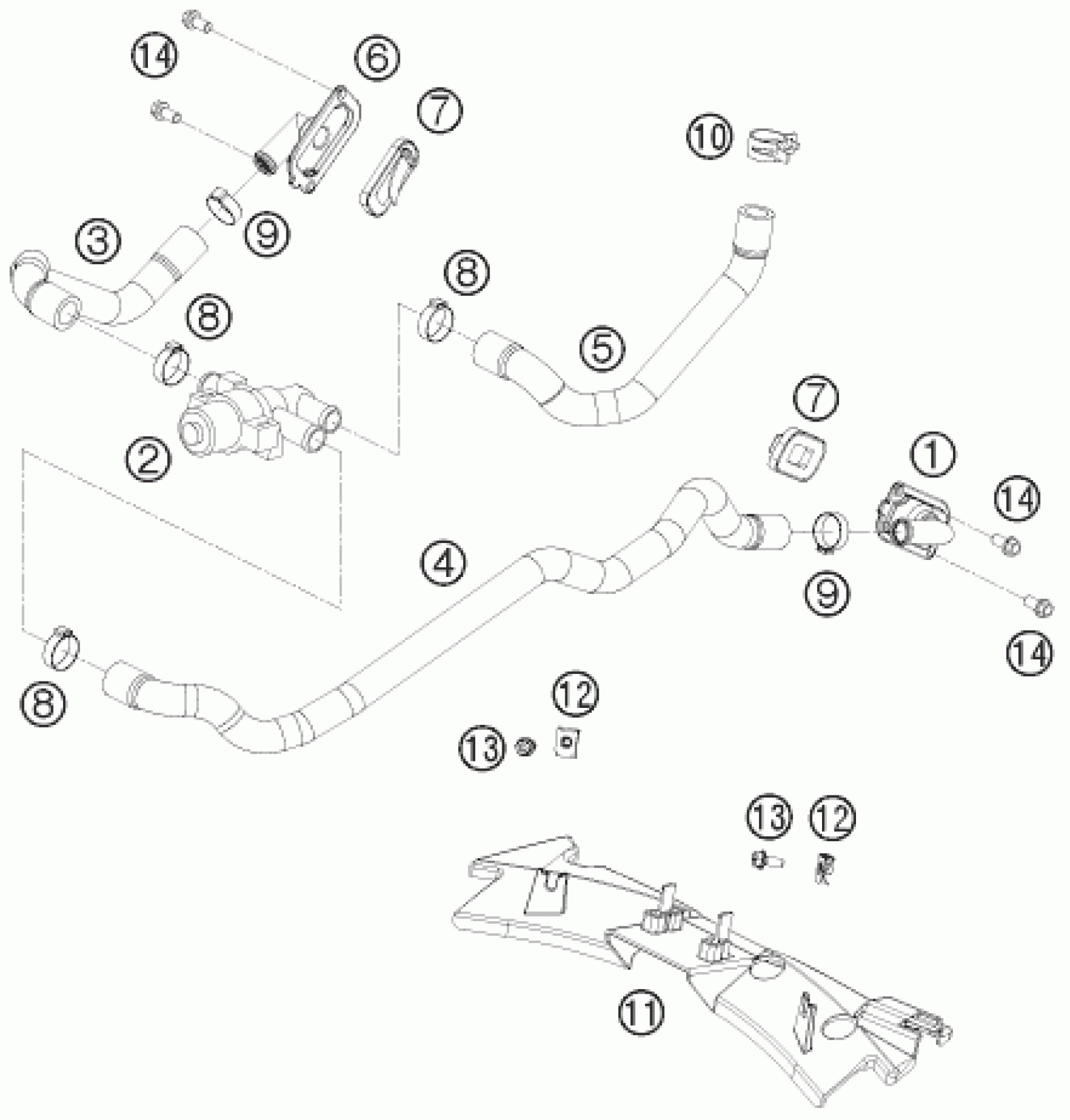

KTM 1190 RC8 BLACK 2010 SECONDARY AIR SYSTEM SAS Diagram

#

Description

Price

1

SAS-FLANGE

61205032000

Unavailable

2

CONTROL VALVE SAS 05

61005026000

Unavailable

3

SAS HOSE-CYLINDER FRONT

69005035021

Unavailable

4

SAS HOSE-CYLINDER REAR

69005035022

Unavailable

5

SAS HOSE-AIR FILTER BOX

69005035023

Unavailable

6

SAS flange

61205022000

Unavailable

7

SAS Reed Valve

60005026000

Unavailable

8

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

Unavailable

9

VARIABLE ONE-EAR CLAMP 21,0MM

00050210706

Unavailable

10

CLAMP STD DN20

00049200121

Unavailable

11

SAS-SUPPORT RC8 08

69005028100

Unavailable

12

clip nut M5

69008021080

Unavailable

13

HH collar screw M5x12 TX30

0025050126

Unavailable

14

HH collar screw M6x12 TX30

0025060126

Unavailable
