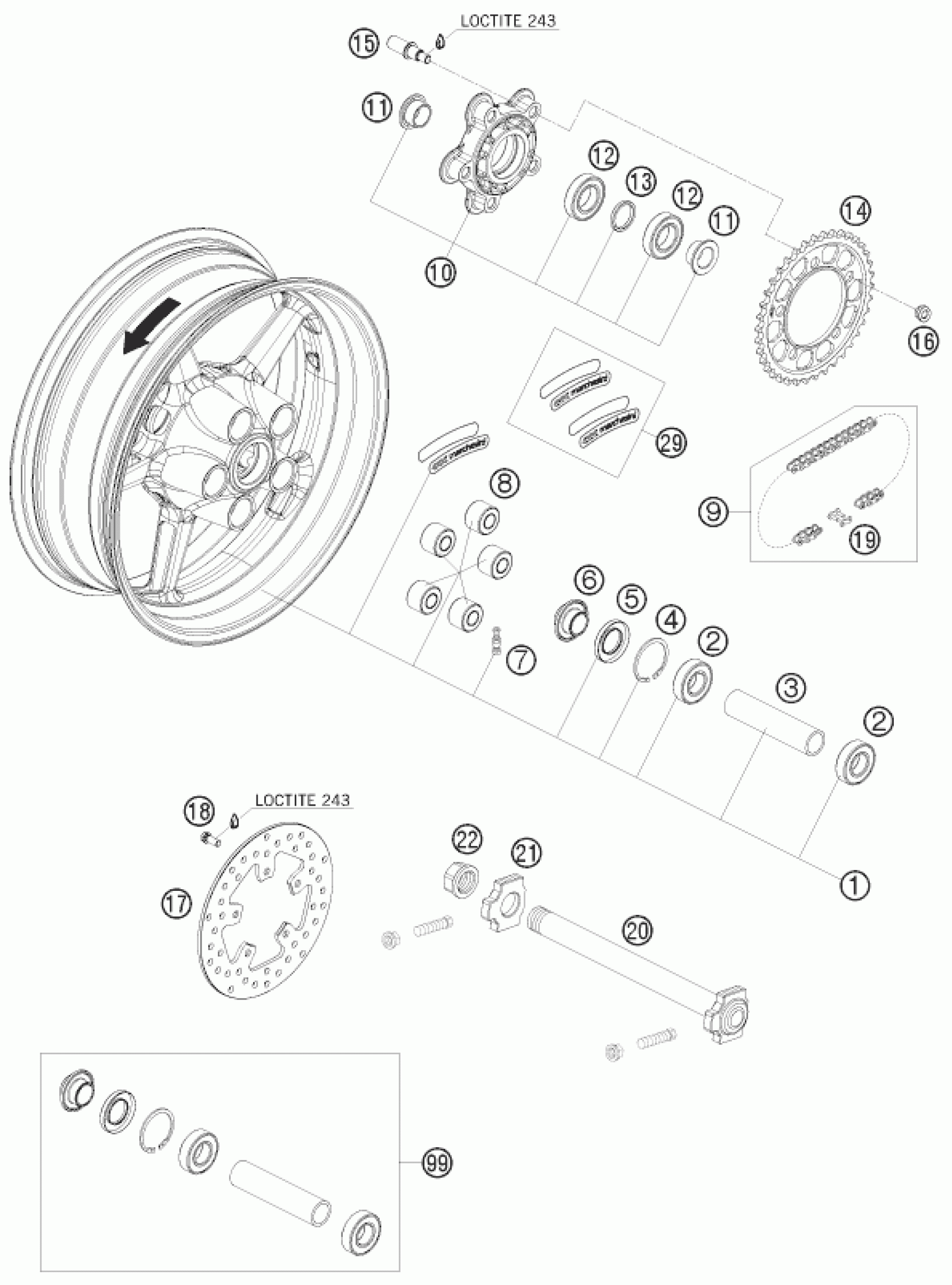

KTM 1190 RC8 BLACK 2010 REAR WHEEL Diagram

#

Description
Price

4

CIRCLIP DIN0472-52X2

0472052200

$3.39

5

Radial shaft seal 30X52X7

0760305271

$5.23

6

DIST.BUSHING REAR WHEEL R/S 08

69010013000

$42.81

7

VALVE CPL. BREMBO DUKE 2003

58709076000

$8.69

1

REARWHEEL ALU BLACK 6,0X17

6901000104430

Unavailable

2

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

3

BEARING SPACER TUBE

69010011000

Unavailable

8

DAMPING RUBBER 05

61010059000

$93.58

9

CHAIN DID 525 HV2 108 ROLLS

69010065108

Unavailable

10

SPROCKET SUPPORT CPL. BLACK

6901005004430

Unavailable

11

SPACER CHAIN WHEEL SUPPORT

69010012000

Unavailable

12

BALL BEARING 6006 DDU2CG23S6NM

0625060060

$18.69

13

BEAR.DIST. RING 30,3X37,8X4,65

69010054000

Unavailable

14

REAR SPROCKET 38-T STEEL 05

61010051138

$75.45

15

BOLT FOR SPROCKET SUPPORT 05

61010056000

$6.35

16

NUT REAR SPROCKET 05

61010057000

$4.24

17

BRAKE DISC KTM 690 08

69010060000

$150.25

18

SPECIAL SCREW M8X18 05

61009062018

$4.24

19

CONNECTING LINK F. 69010065108

69010066000

$29.72

20

WHEEL SPINDLE REAR 08

69010081044

Unavailable

21

Chain tension adjuster, right,

60010084000

$22.81

22

Collar nut M25X1.5 WS=32 05

61010086000

$17.20

29

STICKER MARCH. 2L/S+2R/S WHITE

00050000120

$13.74

99

REAR WHEEL REPAIR KIT

69010015000

$89.28
