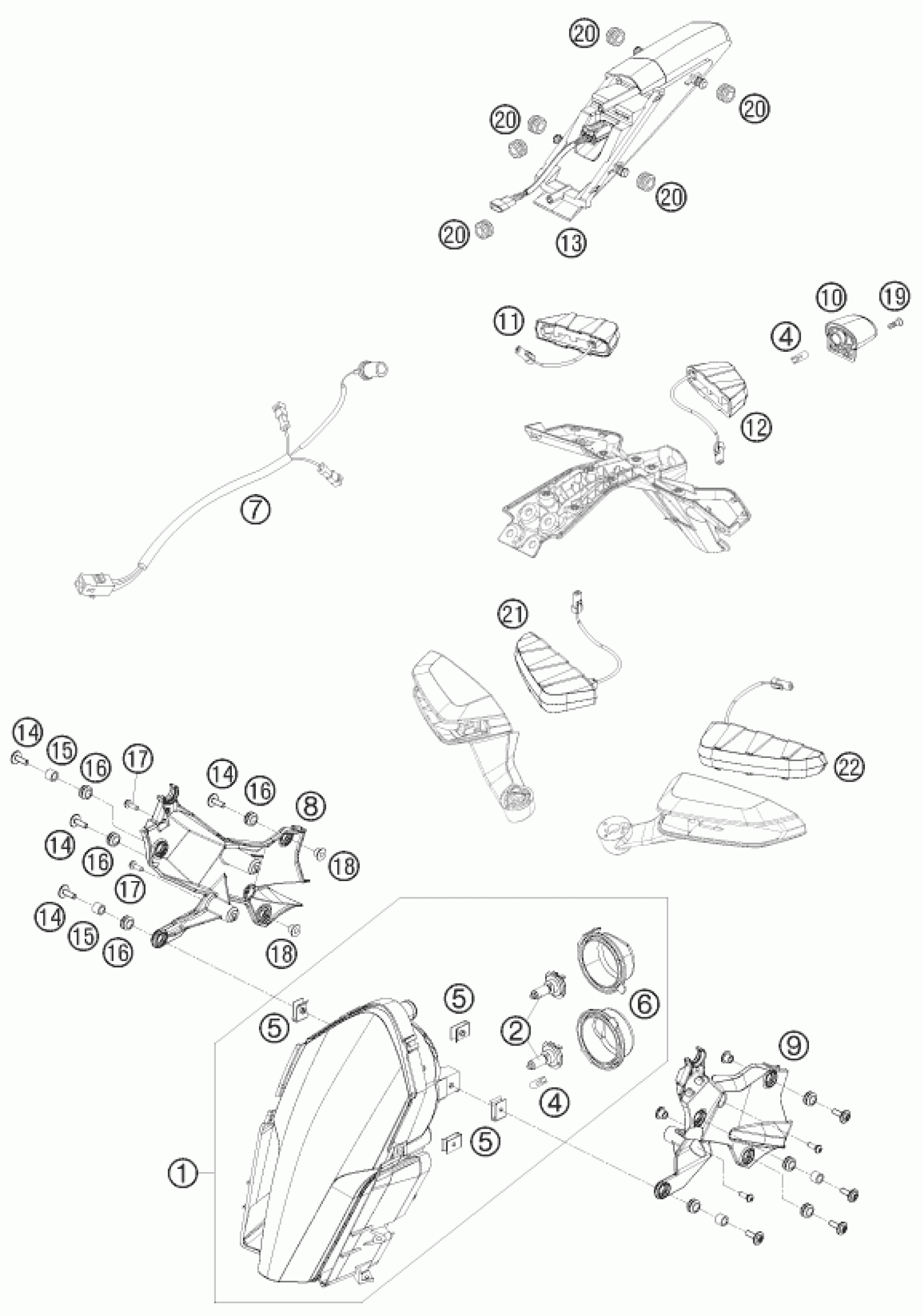

KTM 1190 RC8 BLACK 2010 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEADLIGHT RC8

69014001100

Unavailable

2

BULB H7 12V 55W

60014003100

$30.38

4

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

5

clip nut M5

69008021080

$3.39

6

RUBBER CAP FOR HEADLIGHT 08

69014001050

Unavailable

7

WIRING HARN. NUMB.-PLATE ILLU.

69011076000

$28.98

8

HEAD LIGHT BRACKET R/S RC8

6901401110033

$38.89

9

HEAD LIGHT BRACKET L/S 08

6901401000033

$38.89

10

LICENSE PLATE ILLUMINATION 07

75014047000

Unavailable

11

FLASHER REAR R/S EU

69014025100

Unavailable

12

FLASHER REAR L/S EU

69014026100

Unavailable

13

REAR LIGHT CPL.

69014040000

$186.62

14

SPECIAL SCREW M6X18 ISA30 08

69014017000

$4.24

15

Bushing 6.1X9.2X7.5 08

69014014000

Unavailable

16

rubber grommet 9x11x16x8.5 mm

60006001022

$2.54

17

EJOT PT SCREW K50X16 1451

0081050161

$1.69

18

collar bushing 6.1x9.2x15x8.5x

69014015000

$5.23

19

SCREW FOR PLASTIC K40X16 T20

0081040161

$1.69

20

RUBBER SLEEVE 10X14X20 08

69014078000

$2.54

21

FLASHER FR.R/S RE.L/S USA 08

69014526000

Unavailable

22

FLASHER FR.L/S / RE.R/S US 08

69014525000

Unavailable
