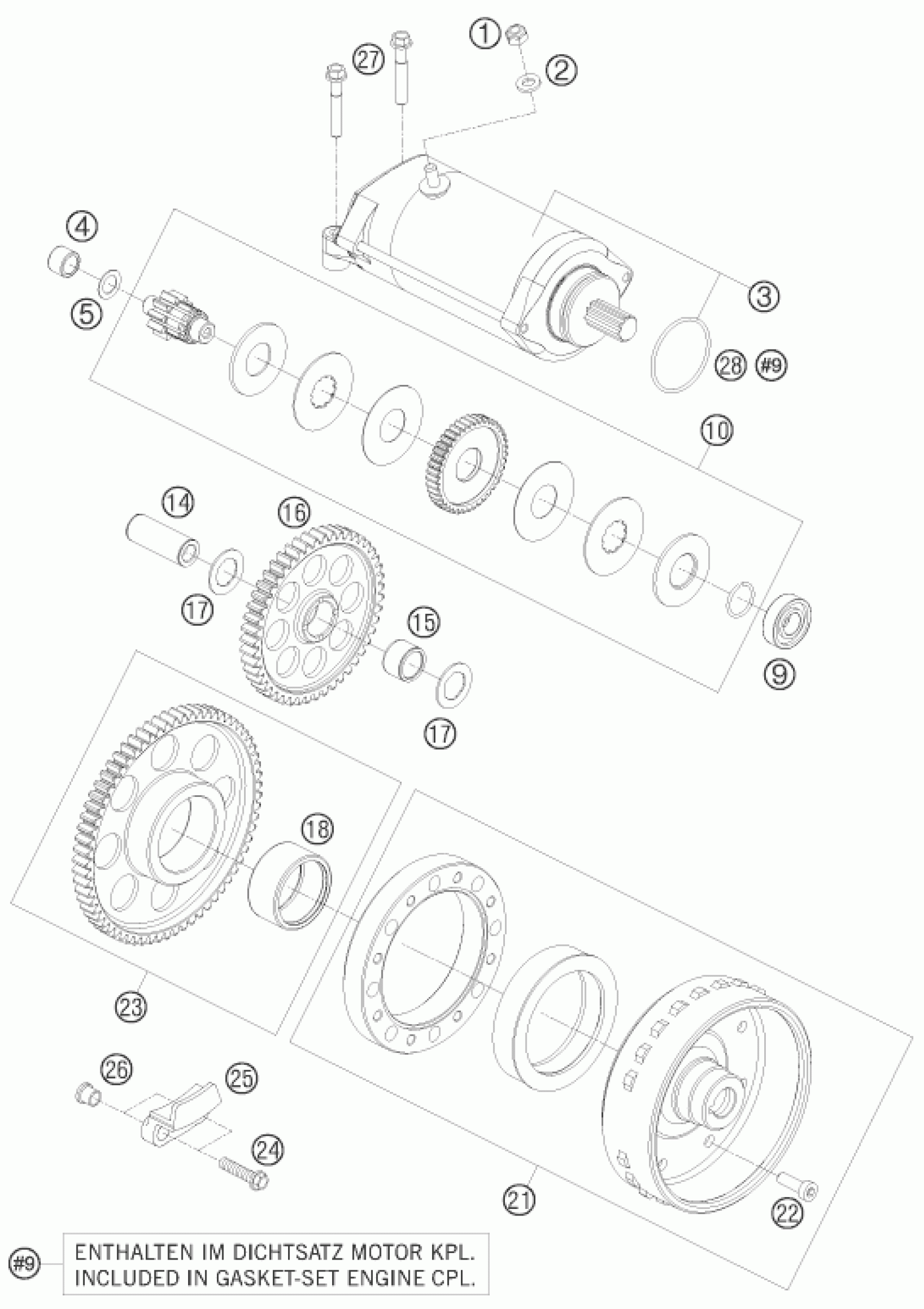

KTM 1190 RC8 BLACK 2010 ELECTRIC STARTER Diagram

#

Description
Price

1

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

2

WASHER DIN0125-A 6,4

0125060003

Unavailable

3

E-STARTER ENGINE 9T 08

61240001000

Unavailable

4

needle sleeve HK 1010 10x14x10

0618101410

Unavailable

5

washer 10x16x0.5

60038007010

Unavailable

9

deep groove ball bearing 6001.

0625060016

Unavailable

10

TORQUE LIMITER 10/45 CPL.

61240017100

Unavailable

14

BEARING BOLT 15X39 08

61230058050

Unavailable

15

needle roller and cage assy. K

0405151913

Unavailable

16

INTERMEDIATE GEAR 43T

61240022100

Unavailable

17

STOP DISK 15,2X25X1

61230057060

Unavailable

18

NEEDLE BUSH HK3520 35/42/20

0618354220

Unavailable

21

FLYWHEEL CPL. 08

61239005000

Unavailable

22

AH SCREW DIN912 M6x18

0912060183

Unavailable

23

FREEWHEEL GEAR 66-T

61240020300

Unavailable

24

HH collar screw M6x25 TX30

0025060256

Unavailable

25

FREEWHEEL HOLDER 03

60040027000

Unavailable

26

SUPPORTING SLEEVE 03

60040027050

Unavailable

27

HH collar screw M6x30 TX30

0025060306

Unavailable

28

O-RING 33,75X2,00

0770033020

Unavailable
