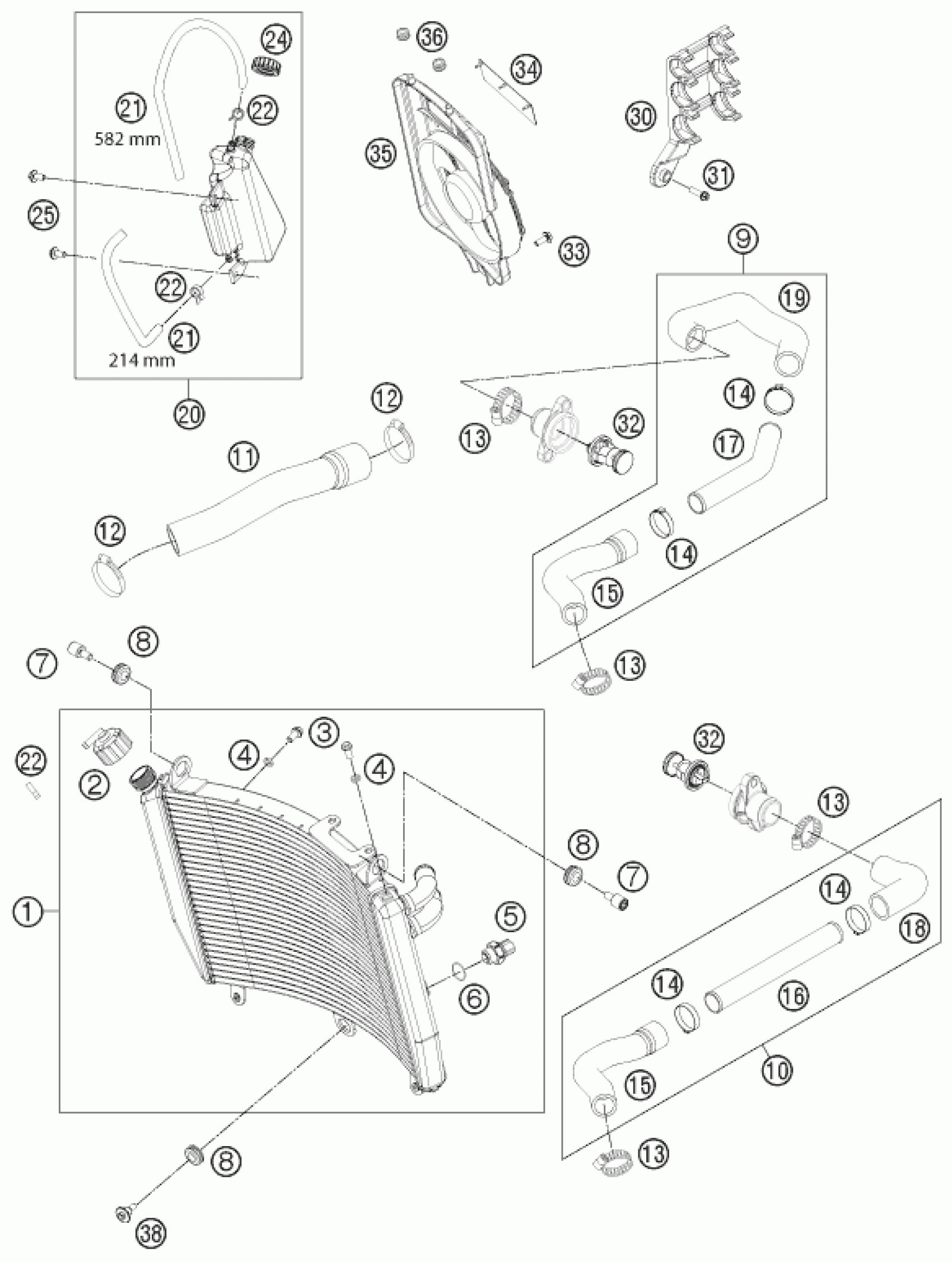

KTM 1190 RC8 BLACK 2010 COOLING SYSTEM Diagram

#

Description
Price

1

COOLER ''VW1585'' CPL. 08

69035010000

$440.47

2

RADIATOR CAP 1,4 BAR

62535009000

$25.42

3

HH collar screw M6x12 TX30

0025060126

$3.08

4

ALU-GASKET 6X10X1.5

60035048000

$3.08

5

THERMOSWITCH LC8 102DG '03

60035045000

$40.48

6

O-ring 17X1.5

0770017015

$1.49

7

STUD BOLT M6 11X11 ISA45

69035001000

$7.28

8

RUBBER SLEEVE D=12MM

41001052000

$4.11

9

RADIATOR HOSE CPL. CYL.-FRONT

69035091000

$77.97

10

RADIATOR HOSE CPL. CYL.-REAR

69035092000

$57.88

11

PREFORMED HOSE COOLER/WAPU 08

69035023000

$23.70

12

HOSE CLAMP 30-45 SGT

54305058000

$5.23

13

Hose clamp GEMI 20-32

76235028000

$4.11

14

Stufenlose Einohrklemme 33,1mm

00050331706

$3.08

15

PREFORMED HOSE COOLER INLET 08

69035024000

$17.66

16

WATER PIPE CYL. REAR 08

69035028000

$55.16

17

WATER PIPE CYL. FRONT 08

69035027000

$64.32

18

PREFORMED HOSE CYL. REAR 08

69035026000

$13.74

19

PREFORMED HOSE CYL. FRONT 08

69035025000

$26.17

20

EXPANSION TANK CPL.

69035065000

$37.90

21

HOSE 6X10 EPDM 03

60035067001

Unavailable

22

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

24

PLUG F. EXPANSION TANK

60035066000

$6.72

25

HH collar screw M6x13 TX30

0024060136

$3.08

30

HOSE CLAMP 19/25 CPL. 08

69035030000

$10.65

31

HH collar screw M6x20 TX30

0024060206

$3.08

32

THERMOSTAT 70 DEGREE

61235017000

$33.65

33

HH collar screw M6x15 TX30

0024060156

$3.08

34

FAN CLACK RUBBER 08

62635044050

$8.03

35

FAN COWL WITH FAN 08

69035044000

$138.65

36

rubber grommet D=8mm open

31008060000

$2.05

38

special screw M5x17

69008021060

$3.08
