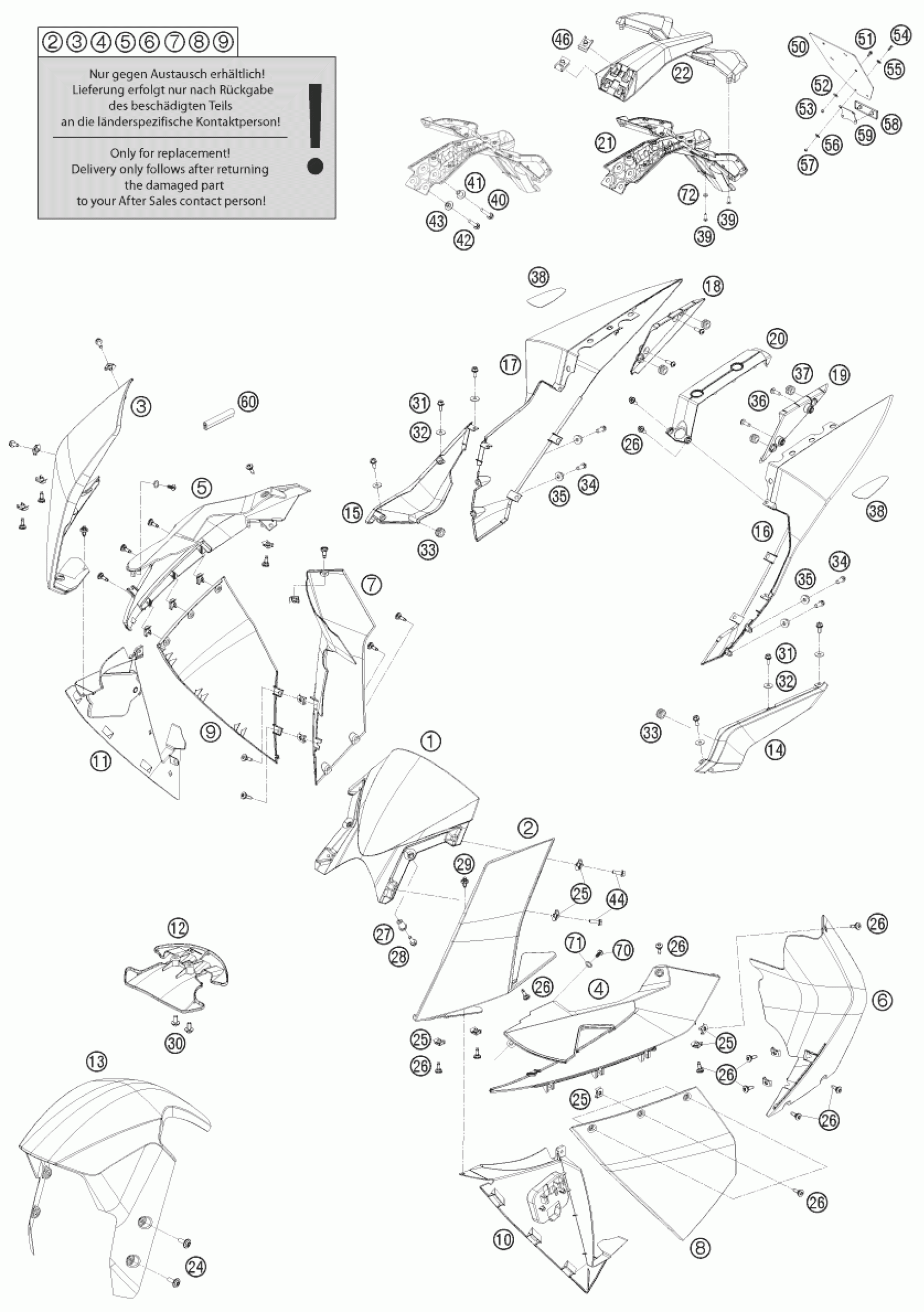

KTM 1190 RC 8R LIM.ED. RED BULL 09 <2009> MASK, FENDERS Diagram

#

Description
Price

26

special screw M5x17

69008021060

Unavailable

27

blind plug nut M5 WN16A

60008008050

$3.73

28

HH collar screw M5x16 TX30

0025050166

$2.05

29

Spread rivet cmpl. 6.2mm

76503075000

$3.08

30

HH collar screw M6x13 TX30

0024060136

$3.08

31

SCREW TORX M5X10 05

58605083010

$2.05

32

Washer tail section UT D=14mm

75008023000

$3.08

33

rubber grommet D=8mm open

31008060000

$2.05

34

HH collar screw M8x20

0025080206

$2.05

1

FAIRING SCREEN HIGH

69108008000

$54.13

2

FR. FAIR. UP PART ORANGE

6900800110004A

Unavailable

3

FR. FAIR. UP PART ORANGE

6900800210004A

Unavailable

4

FR. FAIR. LO. PART BLACK

6900800300030C

Unavailable

5

FR. FAIR. LO. PART BLACK

6900800400030C

Unavailable

6

EXHAUST SHAFT BLACK

6900805200030A

Unavailable

7

EXHAUST SHAFT BLACK

6900805300030A

Unavailable

8

COOLER FAIRING BLACK

6900805000030B

Unavailable

9

COOLER FAIRING BLACK

6900805100030B

Unavailable

10

FRESH-AIR SHAFT L/S BL. MA. 10

6900802210033

$58.06

11

FRESH-AIR SHAFT R/SBL. MA.08

6900802300033

$33.54

12

UP. FRESH-AIR SHAFT BLACK MA.

6900802110033

$8.59

13

FRONT FENDER CARBON

6930801000049

$362.94

14

SIDE COVER L/S BL. BR. RC8

6900804300030A

$97.08

15

SIDE COVER R/S BL. GL. RC8

6900804400030A

$92.45

16

REAR FAIRING ORANGE RC8

6900804100004A

Unavailable

17

REAR FAIRING ORANGE RC8

6900804200004A

Unavailable

18

REAR LIGHT ADAPTER R/S

69008039000

$7.47

19

REAR LIGHT ADAPTER L/S

69008038000

$7.47

20

UPPER REAR END PANEL

6900803100033

$15.98

21

LICENSE PLATE BRACKET LO. PART

69008018000

Unavailable

22

LICENSE PLATE BRACKET UP. PART

69008017000

Unavailable

24

SPECIAL SCREW M6X18 ISA30 08

69014017000

$4.11

25

clip nut M5

69008021080

Unavailable

35

WASHER MOUNT. REAR FAIRING

6900300405001

$7.10

36

EJOT PT SCREW K50X16 1451

0081050161

$1.49

37

RUBBER SLEEVE 10X14X20 08

69014078000

$2.05

38

PASSENGER´S SEAT PLATE KIT

69007047050

$15.79

39

SCREW FOR PLASTIC K40X16 T20

0081040161

$1.49

40

HH collar screw M6x25 TX30

0025060256

$3.08

41

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

$5.23

42

HH collar screw M6x20 TX30

0025060206

$3.08

43

BUSHING LICENSE PLATE BRACKET

69008020000

$4.11

44

HH collar screw M5x20 TX30

0025050206

$2.05

46

clip nut M6

54603048100

$4.11

50

license plate mouning plate

60012081200

$8.41

51

HH collar screw M6x15 TX30

0024060156

$3.08

52

Washer DIN9021-A 6.4

0021060003

$2.05

53

Self lock. nut DIN985-M6-A2

0985060003

$2.05

54

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

55

WASHER 6MM

40006006000

$1.49

56

WASHER DIN0125-A 5,3

0125050003

$1.49

57

Self locking nut DIN 985 M5

0985050003

$2.05

58

REFLECTOR RED

58412080000

$5.23

59

BRACKET FOR REFLECTOR

58412080050

$6.07

60

EDGE PROTECTOR 14X9,5X66 MM 06

60114010070

$3.08

70

EJOT PT SCREW K60X12 1451

0081060121

$2.05

71

WASHER PA 8,3X12X5

69008003050

$3.08

72

WASHER DIN9021-A 4,3

0021040003

$1.49
