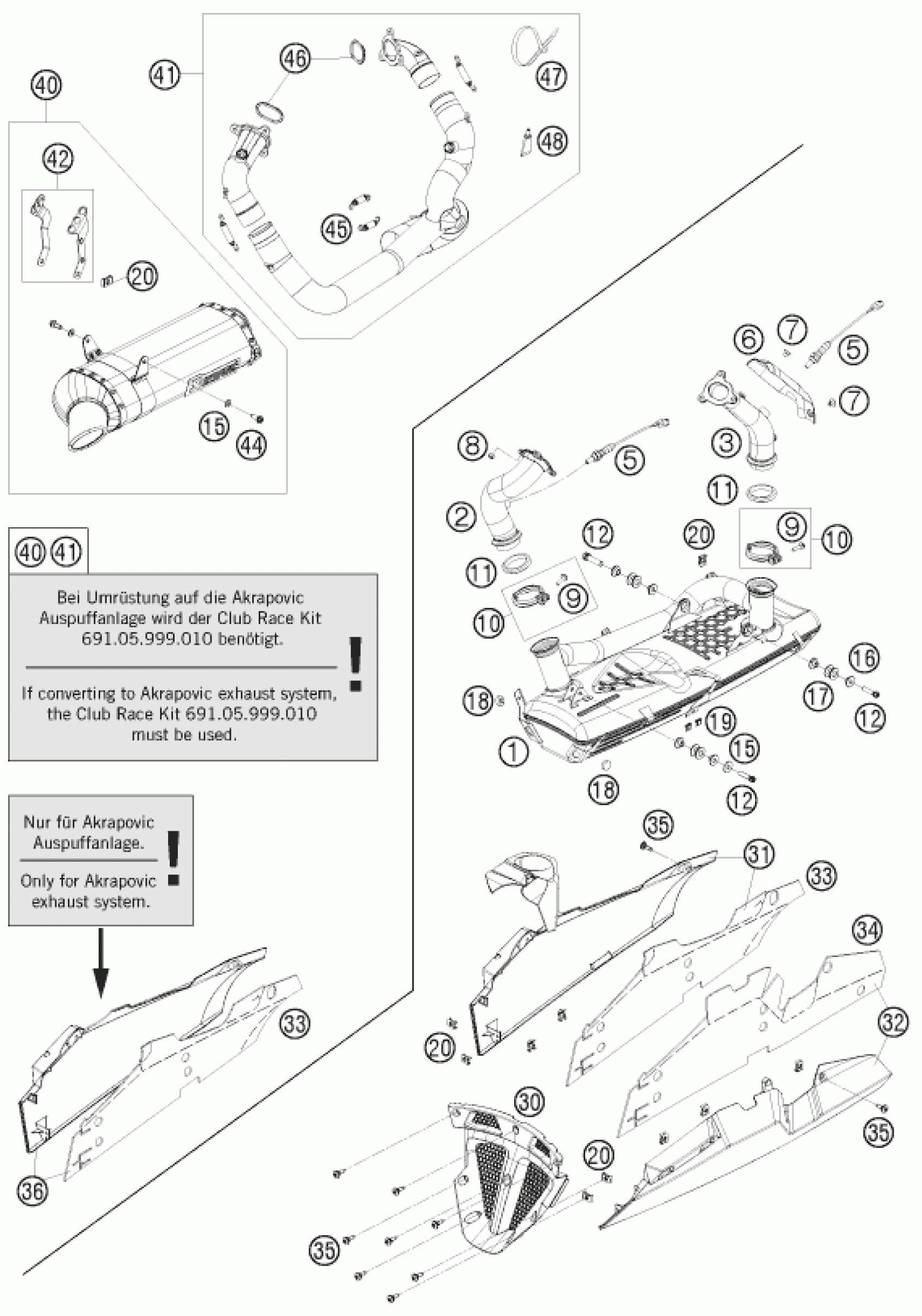

KTM 1190 RC 8R LIM.ED. RED BULL 09 <2009> EXHAUST SYSTEM Diagram

#

Description
Price

1

SILENCER CPL. RC8 EU

69005083200

Unavailable

2

EXHAUST MANIFOLD FRONT CPL.

69005007100

Unavailable

3

EXHAUST PIPE REAR CPL.

69005008000

Unavailable

5

LAMBDA SENSOR 05

61041090000

Unavailable

6

HEAT SHIELD REAR

69005011000

Unavailable

7

FLAT H.SCREW M6X8 DIN7991 NIRO

0991060082

Unavailable

8

self-locking nut M8 Cu

51010086100

Unavailable

9

HH COLLAR SCREW M6X25 TX30

0024060256

Unavailable

10

CLAMP CPL.

69005050000

Unavailable

11

MANIFOLD GASKET

69005005005

Unavailable

12

HH COLLAR SCREW M8X35 TX40

0025080356S

Unavailable

15

WASHER DIN9021-A 8,4

0021080003

Unavailable

16

collar bushing 8.5x12x23.5x10

58405050065

Unavailable

17

damp. component silicone grey

54305068100

Unavailable

18

RUBBER BUFFER

54308042000

Unavailable

19

DAMP. COMPON. SILICONE GREY 05

61005091000

Unavailable

20

clip nut M5

69008021080

Unavailable

30

KEEL COVER BLACK MATT

6900806010033

Unavailable

31

EXH. COVER ORANGE RC8

6900805633304A

Unavailable

32

EXH. COVER ORANGE RC8

6900805523304A

Unavailable

33

HEAT SHIELD F. EXH. COVER R/S

69005083192

Unavailable

34

HEAT SHIELD F. EXH. COVER L/S

69005083193

Unavailable

35

special screw M5x17

69008021060

Unavailable

36

EXHAUST PROTECTOR ORANGE

6900815603304A

Unavailable

40

MAIN SILENCER EVO 4

69105283100

Unavailable

41

TITANIUM SUPERSTOCK HEADER

69105907000

Unavailable

42

FITTING ASSEMBLY

69005283060

Unavailable

44

HH collar screw M8x25

0025080256

Unavailable

45

EXHAUST-SPRING WITH RUBBER 02

57305016000

Unavailable

46

EXHAUST PIPE FLANGE GASKET

69005005100

Unavailable

47

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

48

COPPER PASTE

76505099060

Unavailable
