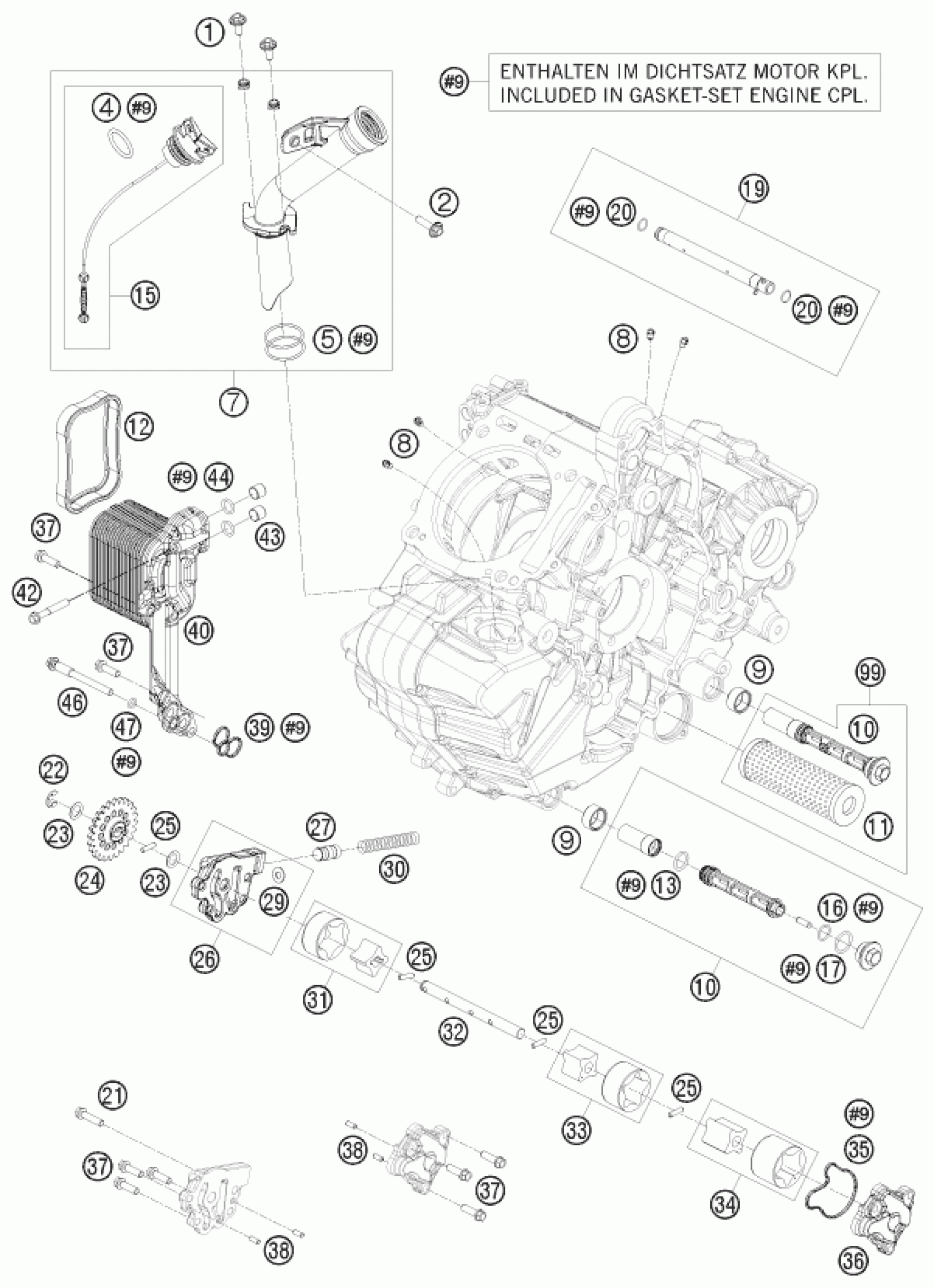

KTM 1190 RC 8 R TNT EDIT. 2009 LUBRICATING SYSTEM Diagram

#

Description
Price

1

HH collar screw M6x15 TX30

0024060156

Unavailable

2

HH collar screw M6x20 TX30

0024060206

Unavailable

4

O-RING 25,00X3,00 NBR 70

0770250030

Unavailable

5

O-RING 30X2,0 FPM

0770300020

Unavailable

7

OILFILLTUBE CPL.

61238085200

Unavailable

12

RUBBER COVER OIL COOLER

69038050010

Unavailable

15

OIL DIPSTICK CPL. W. O-RING

61238085244

Unavailable

8

oil jet 70 M5

60030063070

Unavailable

9

OIL SCREEN BUSHING 08

61238017000

Unavailable

10

oil screen cpl.

61238021100

Unavailable

11

OIL FILTER 03

60038015000

Unavailable

13

O-RING 14,00X2,00

0770140200

Unavailable

16

O-RING 12,5X1,5 NBR

0770125015

Unavailable

17

O-RING 17,00X2,00

0770170200

Unavailable

19

OIL INJECTION TUBE CPL. 08

61230065000

Unavailable

20

o-ring 10.00x1.00 NBR70

0770010010

Unavailable

21

HH collar screw M6x25 TX30

0025060256

Unavailable

22

retaining washer DIN 6799 - 8

0799080000

Unavailable

23

washer 10x16x0.5

60038007010

Unavailable

24

OIL PUMP GEAR 24-T

60038001124

Unavailable

25

needle roller NRB 4x15.8 G2

0402041580

Unavailable

26

PRESSURE PUMP COVER CPL.

61238009144

Unavailable

27

CONTROL PISTON LC8 03

60038028000

Unavailable

29

shim

50337073000

Unavailable

30

CONTROL SPRING

61238026000

Unavailable

31

ROTOR-SET 19MM 03

60038009000

Unavailable

32

OIL PUMP SHAFT 08

61238002000

Unavailable

33

ROTOR-SET 22MM 08

61238011000

Unavailable

34

ROTOR-SET 30MM 08

61238010000

Unavailable

35

MOLDED RING SUCTION PUMP COVER

61238008150

Unavailable

36

SUCTION PUMP COVER

61238008200

Unavailable

37

HH collar screw M6x20 TX30

0025060206

Unavailable

38

needle roller DIN 5402 5x9.8

0402050980

Unavailable

39

MOLDED RING

61238051000

Unavailable

40

OIL COOLER CPL.

6923805000033

Unavailable

42

HH collar screw M6x50 TX30

0025060506

Unavailable

43

BUSHING

61238052000

Unavailable

44

O-RING 12X2 VITON GREEN

0770012021

Unavailable

46

REGULATING SCREW

61238055000

Unavailable

47

O-RING 6,00X2,00 NBR 70

0770060020

Unavailable

99

OILFILTER SERVICE KIT

00050000068

Unavailable
