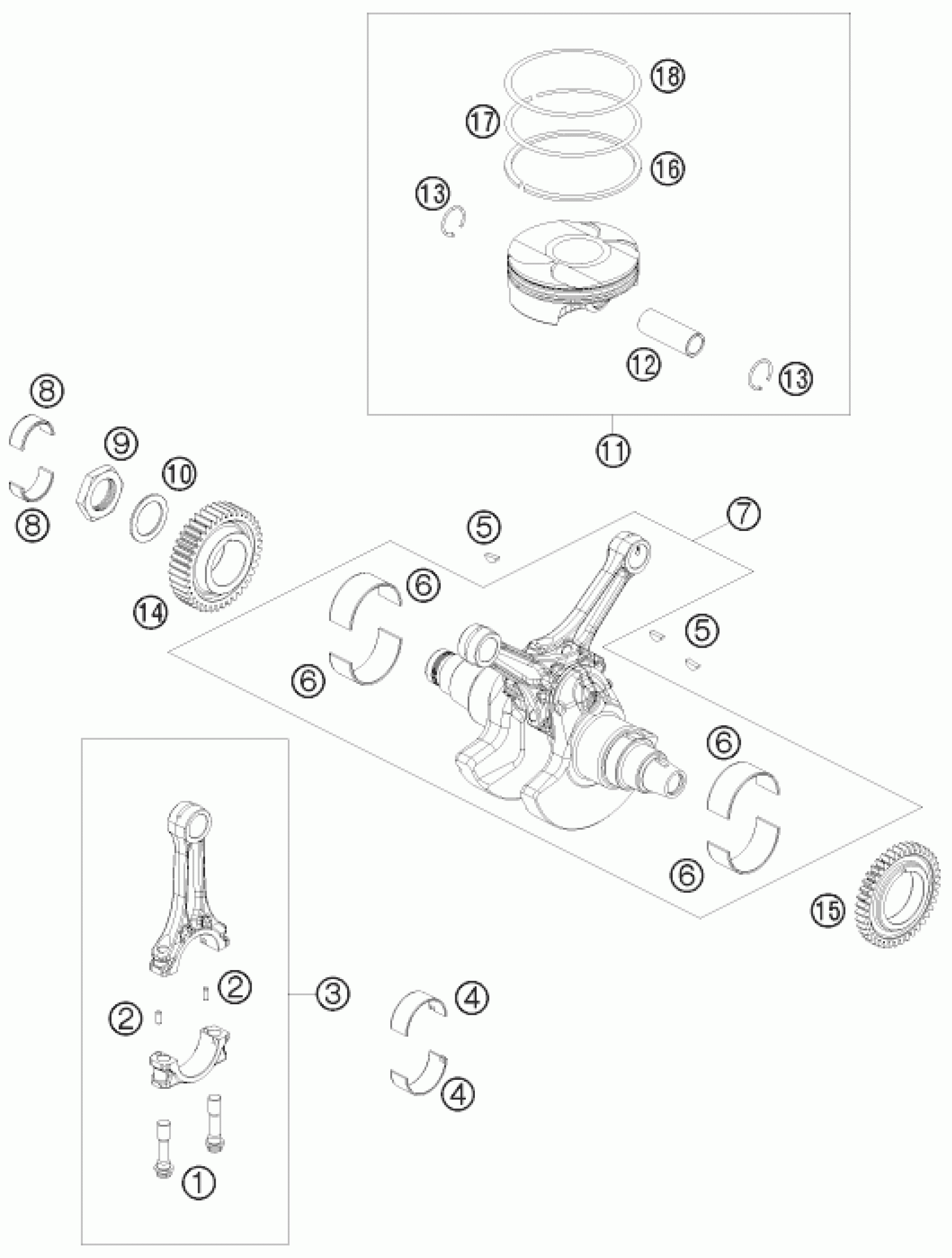

KTM 1190 RC 8 R TNT EDIT. 2009 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CONNECTING-ROD SCREW MJ10X108

61230015000

Unavailable

2

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

3

CONNECTING ROD CPL. 122 MM

69130013000

Unavailable

4

SPLIT BEAR. BUSH RED 08

612300150101

Unavailable

4

SPLIT BEAR. BUSH BLUE 08

612300150102

Unavailable

4

SPLIT BEAR. BUSH YELLOW 08

612300150103

Unavailable

5

woodruff key DIN 6888 4x5x13

0888040050

Unavailable

6

SPLIT BEAR. BUSH RED 08

612300820001

Unavailable

6

SPLIT BEAR. BUSH BLUE 08

612300820002

Unavailable

6

SPLIT BEAR. BUSH YELLOW 08

612300820003

Unavailable

7

CRANKSHAFT CPL.

69130018100

Unavailable

8

BUSHING BOWL 28X32X13 03

60030026010

Unavailable

9

HH-NUT M33X1,5 L/S WS46 03

60032009050

Unavailable

10

WASHER 33,2X46X2 03

60032009040

Unavailable

11

PISTON CPL.

69130007000 I

Unavailable

11

PISTON CPL.

69130007000 II

Unavailable

12

PISTON PIN D=20 08

61230033000

Unavailable

13

CIRCLIP

77630074000

Unavailable

14

PRIMARY GEAR

61230055000

Unavailable

15

DRIVE WHEEL BALANCER SHAFT 08

61230056000

Unavailable

16

OIL SCRAPER PISTON RING

69130032100

Unavailable

17

TAPERED COMP. PISTON RING

69130031000

Unavailable

18

RECTANGULAR RING

69130030000

Unavailable
