COOLING SYSTEM

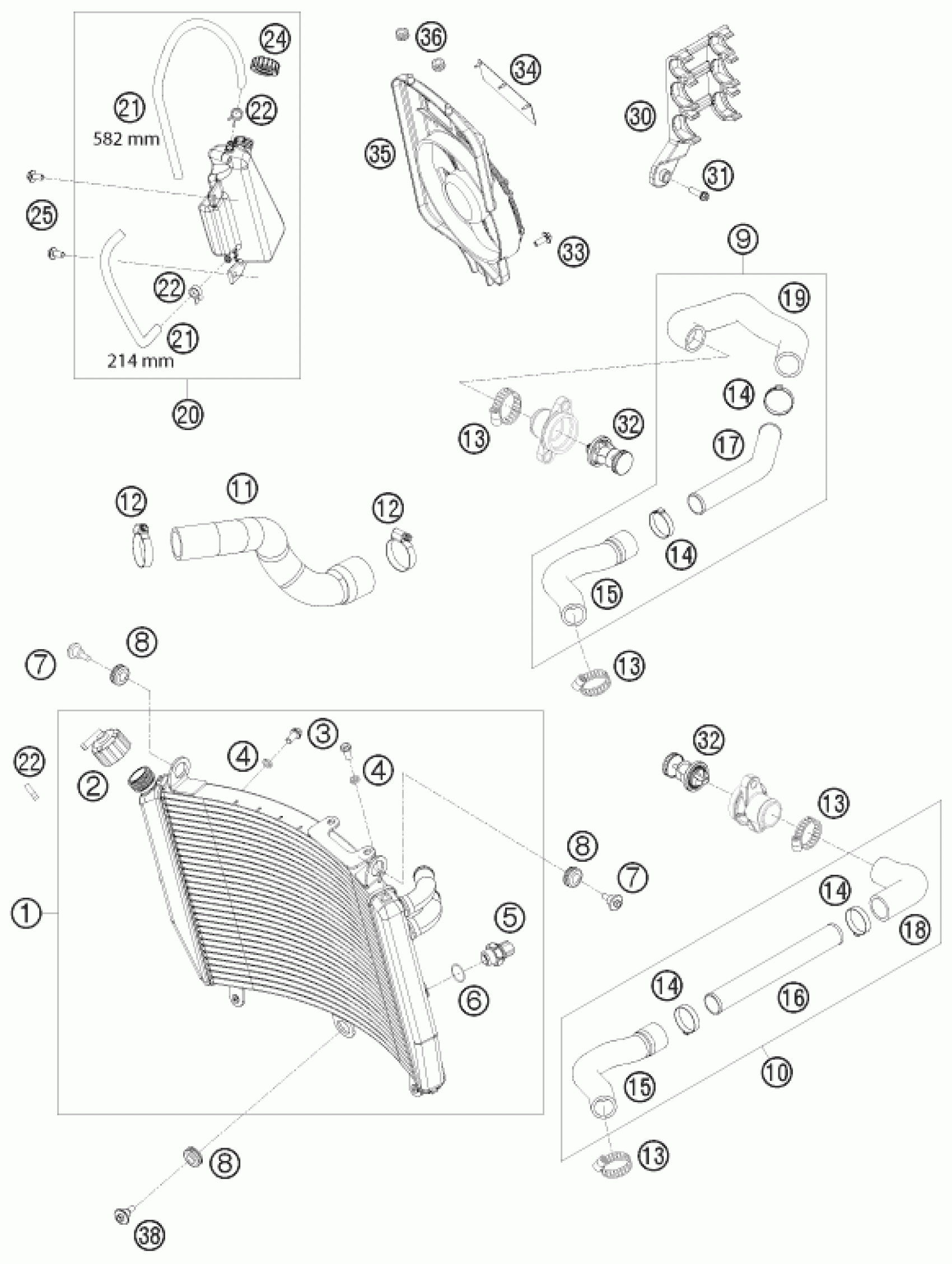

KTM 1190 RC 8 R TNT EDIT. 2009 COOLING SYSTEM Diagram
#
2
RADIATOR CAP 1,4 BAR
62535009000
Unavailable
1
COOLER ''VW1585'' CPL. 08
69035010000
Unavailable
5
THERMOSWITCH LC8 102DG '03
60035045000
Unavailable
3
HH collar screw M6x12 TX30
0025060126
Unavailable
4
ALU-GASKET 6X10X1.5
60035048000
Unavailable
6
O-ring 17X1.5
0770017015
Unavailable
7
SPECIAL SCREW M6X21 WS=8
60035001000
Unavailable
8
RUBBER SLEEVE D=12MM
41001052000
Unavailable
9
RADIATOR HOSE CPL. CYL.-FRONT
69035091000
Unavailable
10
RADIATOR HOSE CPL. CYL.-REAR
69035092000
Unavailable
11
PREFORMED HOSE COOLER/WAPU
69135023000
Unavailable
12
HOSE CLAMP 30-45 SGT
54305058000
Unavailable
13
Hose clamp GEMI 20-32
76235028000
Unavailable
14
Stufenlose Einohrklemme 33,1mm
00050331706
Unavailable
15
PREFORMED HOSE COOLER INLET 08
69035024000
Unavailable
16
WATER PIPE CYL. REAR 08
69035028000
Unavailable
17
WATER PIPE CYL. FRONT 08
69035027000
Unavailable
18
PREFORMED HOSE CYL. REAR 08
69035026000
Unavailable
19
PREFORMED HOSE CYL. FRONT 08
69035025000
Unavailable
20
EXPANSION TANK CPL.
69035065000
Unavailable
21
HOSE 6X10 EPDM 03
60035067001
Unavailable
22
YDNAC-CLAMP 10107 10MM
58007117000
Unavailable
24
PLUG F. EXPANSION TANK
60035066000
Unavailable
25
HH collar screw M6x13 TX30
0024060136
Unavailable
30
HOSE CLAMP 19/25 CPL. 08
69035030000
Unavailable
31
HH collar screw M6x20 TX30
0024060206
Unavailable
32
THERMOSTAT 70 DEGREE
61235017000
Unavailable
33
HH collar screw M6x15 TX30
0024060156
Unavailable
34
FAN CLACK RUBBER 08
62635044050
Unavailable
35
FAN COWL WITH FAN 08
69035044000
Unavailable
36
rubber grommet D=8mm open
31008060000
Unavailable
38
special screw M5x17
69008021060
Unavailable
