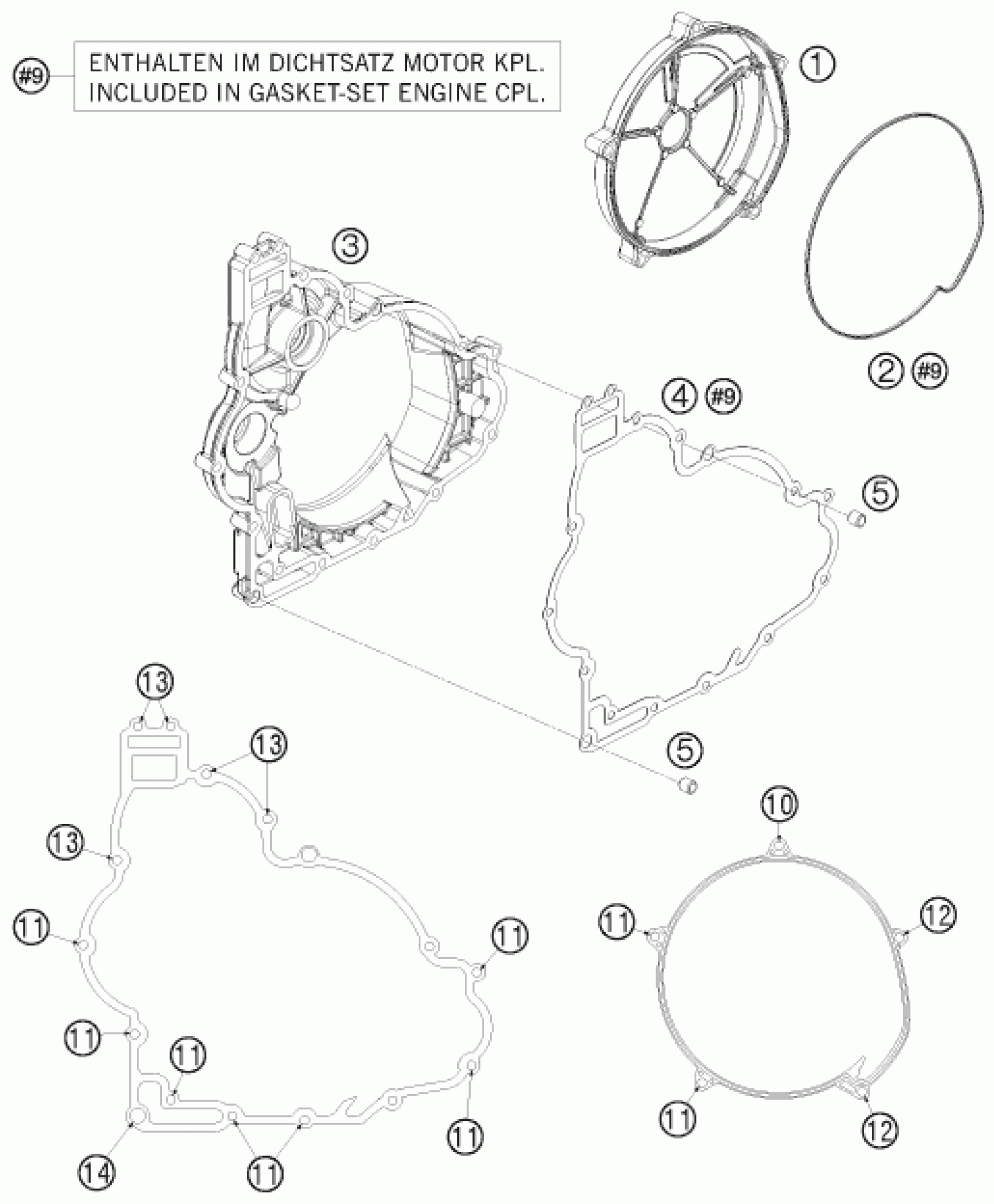

KTM 1190 RC 8 R TNT EDIT. 2009 CLUTCH COVER Diagram

#

Description

Price

1

OUTER CLUTCH COVER 09

6123002600041

Unavailable

2

MOLDED RING OUTER CLUTCH COVER

61230027000

Unavailable

3

CLUTCH CASE WITH BEARINGS

6123000104441

Unavailable

4

CLUTCH COVER GASKET 08

61230025000

Unavailable

5

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

10

HH COLLAR SCREW M6X95 TX30

0025060956

Unavailable

11

HH collar screw M6x30 TX30

0025060306

Unavailable

12

HH COLLAR SCREW M6X90 TX30

0025060906

Unavailable

13

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

14

HH collar screw M6x35 TX30

0025060356

Unavailable
