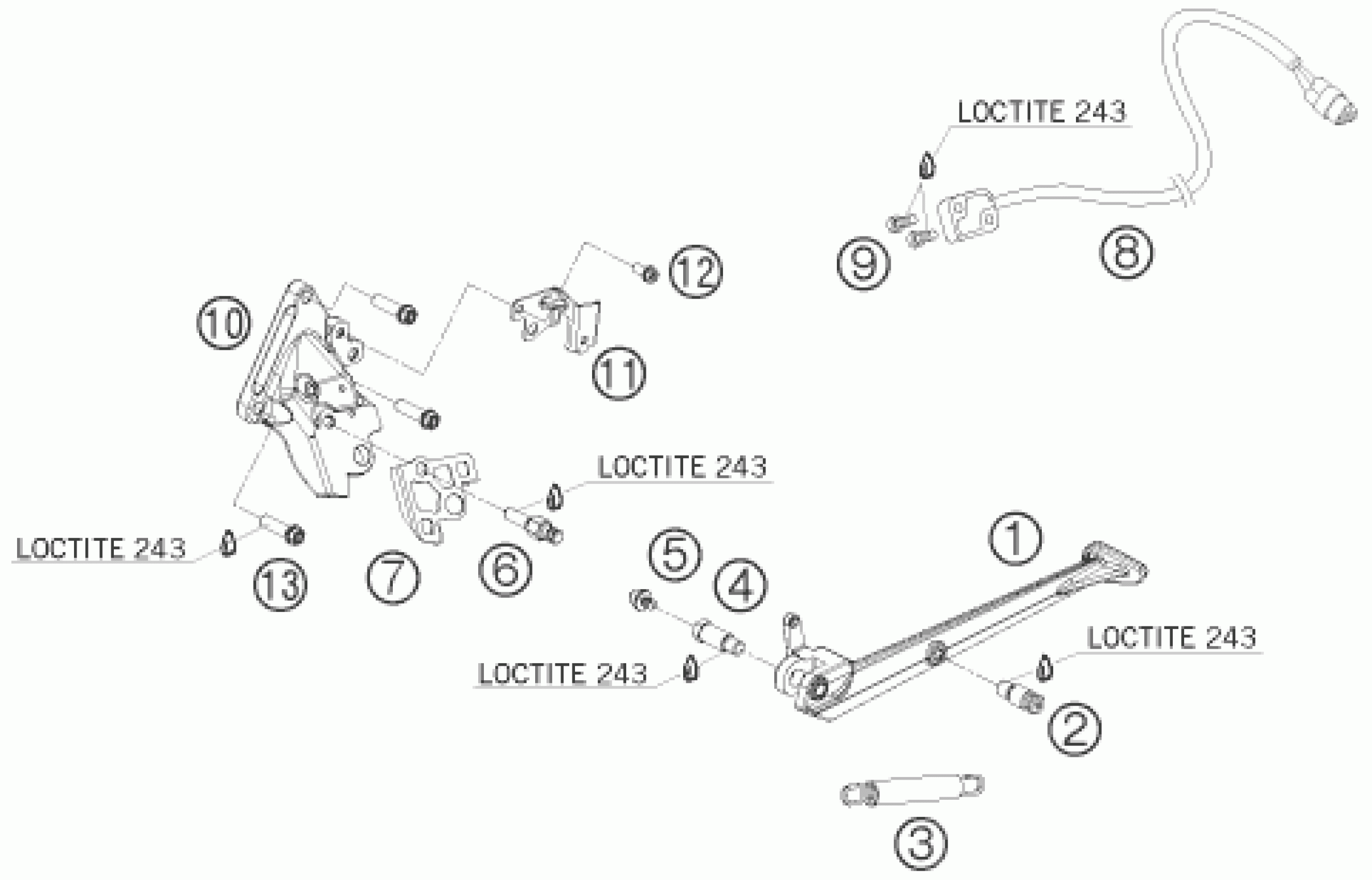

KTM 1190 RC 8 R 2009 SIDE / CENTER STAND Diagram

#

Description
Price

1

SIDE STAND CPL. BLACK 09

6900302303333S

Unavailable

2

BOLT F. SIDE STAND SPRING

75603023011

Unavailable

3

SPRING L=116 MM 05

61003024000

Unavailable

4

SCREW F. SIDE STAND M10

69003027050

Unavailable

5

DISTANCE RUBBER D=14X10,5

69003027060

Unavailable

6

SCREW SIDE STAND SPRING 05

61003028001

Unavailable

7

CONSOLE INTERMEDIATE METAL

69003027000

Unavailable

8

Side stand sensor

61011045000

Unavailable

9

CYL.HEAD SCREW DIN84A M4x12

0084040123

Unavailable

10

SIDE STAND CONSOLE BLACK 09

6900302600033S

Unavailable

11

KEEL RETAINING BRACKET

69003029000

Unavailable

12

HH collar screw M6x12 TX30

0025060126

Unavailable

13

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable
