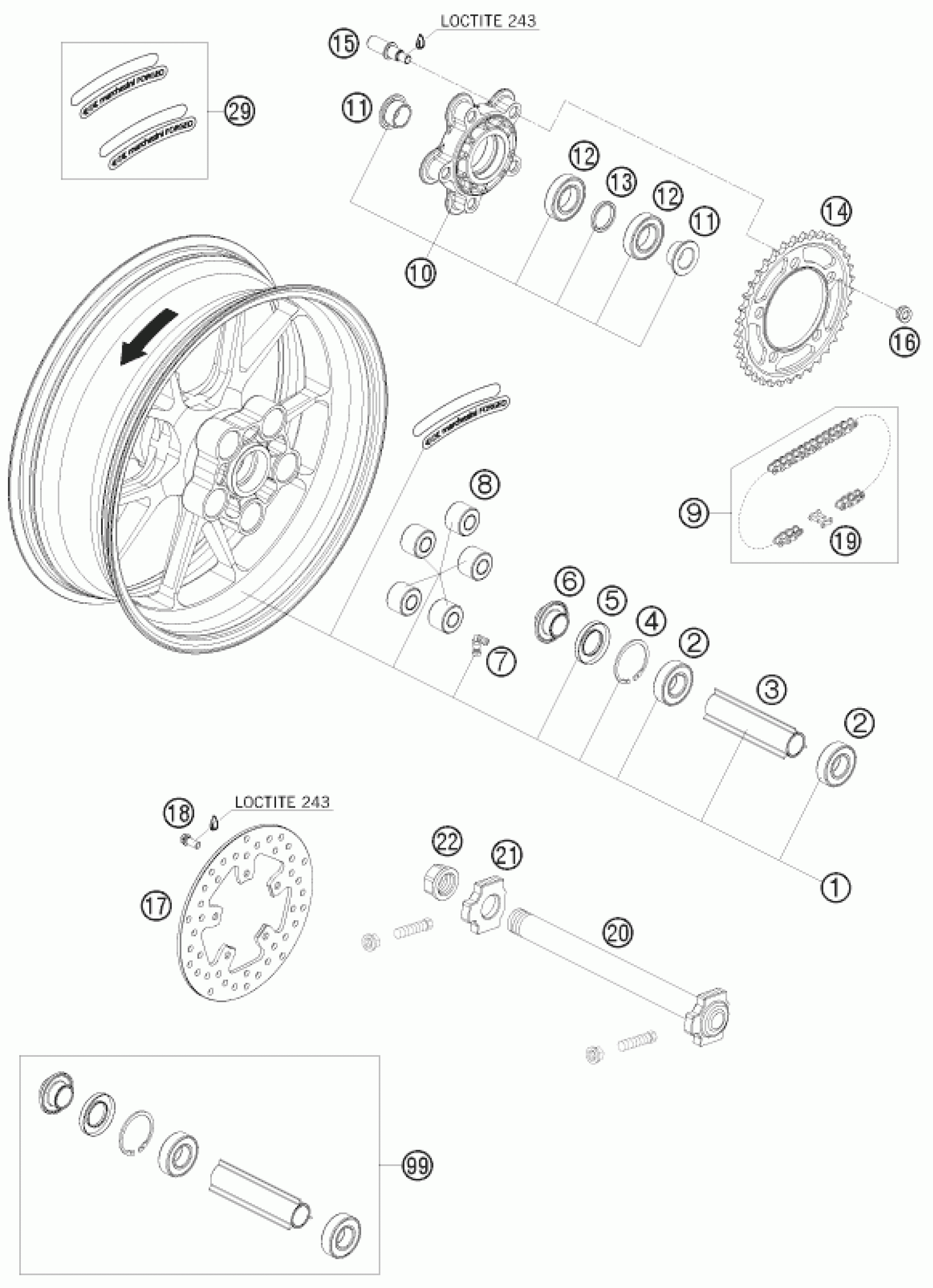

KTM 1190 RC 8 R 2009 REAR WHEEL Diagram

#

Description
Price

29

STICKER MARCH. 2L/S+2R/S YELL.

00050000121

Unavailable

14

REAR SPROCKET 38-T STEEL 05

61010051138

Unavailable

1

REAR WHEEL RC8-CPL. BLACK

6911000104430

Unavailable

2

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

3

BEARING SPACER TUBE

69010011000

Unavailable

4

CIRCLIP DIN0472-52X2

0472052200

Unavailable

5

Radial shaft seal 30X52X7

0760305271

Unavailable

6

DIST.BUSHING REAR WHEEL R/S 08

69010013000

Unavailable

7

VALVE ANGLED 90° 05

61009076000

Unavailable

8

DAMPING RUBBER 05

61010059000

Unavailable

9

CHAIN DID 525 HV2 108 ROLLS

69010065108

Unavailable

10

SPROCKET SUPPORT CPL. BLACK

6901005004430

Unavailable

11

SPACER CHAIN WHEEL SUPPORT

69010012000

Unavailable

12

BALL BEARING 6006 DDU2CG23S6NM

0625060060

Unavailable

13

BEAR.DIST. RING 30,3X37,8X4,65

69010054000

Unavailable

15

BOLT FOR SPROCKET SUPPORT 05

61010056000

Unavailable

16

NUT REAR SPROCKET 05

61010057000

Unavailable

17

BRAKE DISC KTM 690 08

69010060000

Unavailable

18

SPECIAL SCREW M8X18 05

61009062018

Unavailable

19

CONNECTING LINK F. 69010065108

69010066000

Unavailable

20

WHEEL SPINDLE REAR 08

69010081044

Unavailable

21

Chain tension adjuster, right,

60010084000

Unavailable

22

Collar nut M25X1.5 WS=32 05

61010086000

Unavailable

99

REAR WHEEL REPAIR KIT

69010015000

Unavailable
