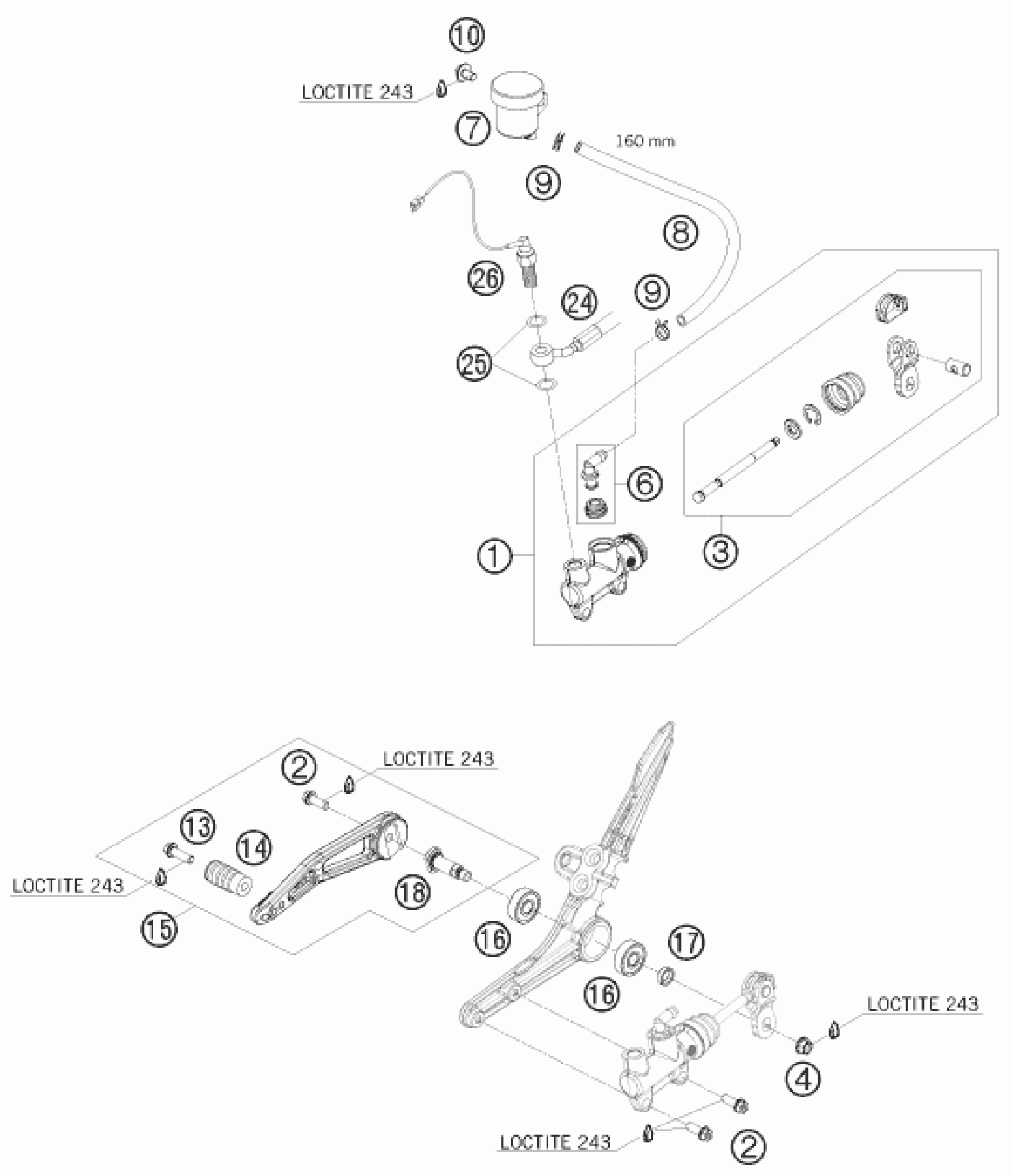

KTM 1190 RC 8 R 2009 REAR BRAKE CONTROL Diagram

#

Description
Price

2

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

3

PUSH ROD SET

69013062000

Unavailable

25

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

4

COLLAR NUT M8

49030028000

Unavailable

6

ANGLE PIECE

54513155000

Unavailable

7

reservoir, rear cpl.

61013069000

Unavailable

8

HOSE FOR RESERVOIR 6X1,5

69013069001

Unavailable

9

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

10

Screw for expansion tank

69013099050

Unavailable

13

HH collar screw M6x20 TX30

0025060206S

Unavailable

14

Brake lover pedal Duke 94

58303060051

Unavailable

15

BRAKE LEVER CPL. RC8

6901305004433S

Unavailable

16

deep groove ball bearing SKF 6

0625060002

Unavailable

17

SPACER F. BRAKE-LEV.-REDIRECT.

69013054000

Unavailable

18

SHAFT F. BRAKE-LEVER-REDIRECT.

69013051000

Unavailable

24

BRAKE TUBE REAR

6901307200030

Unavailable

26

BRAKE LIGHT SWITCH REAR 05

61011051000

Unavailable

1

MAIN BRAKE CYLINDER REAR CPL.

6901306004430

Unavailable
