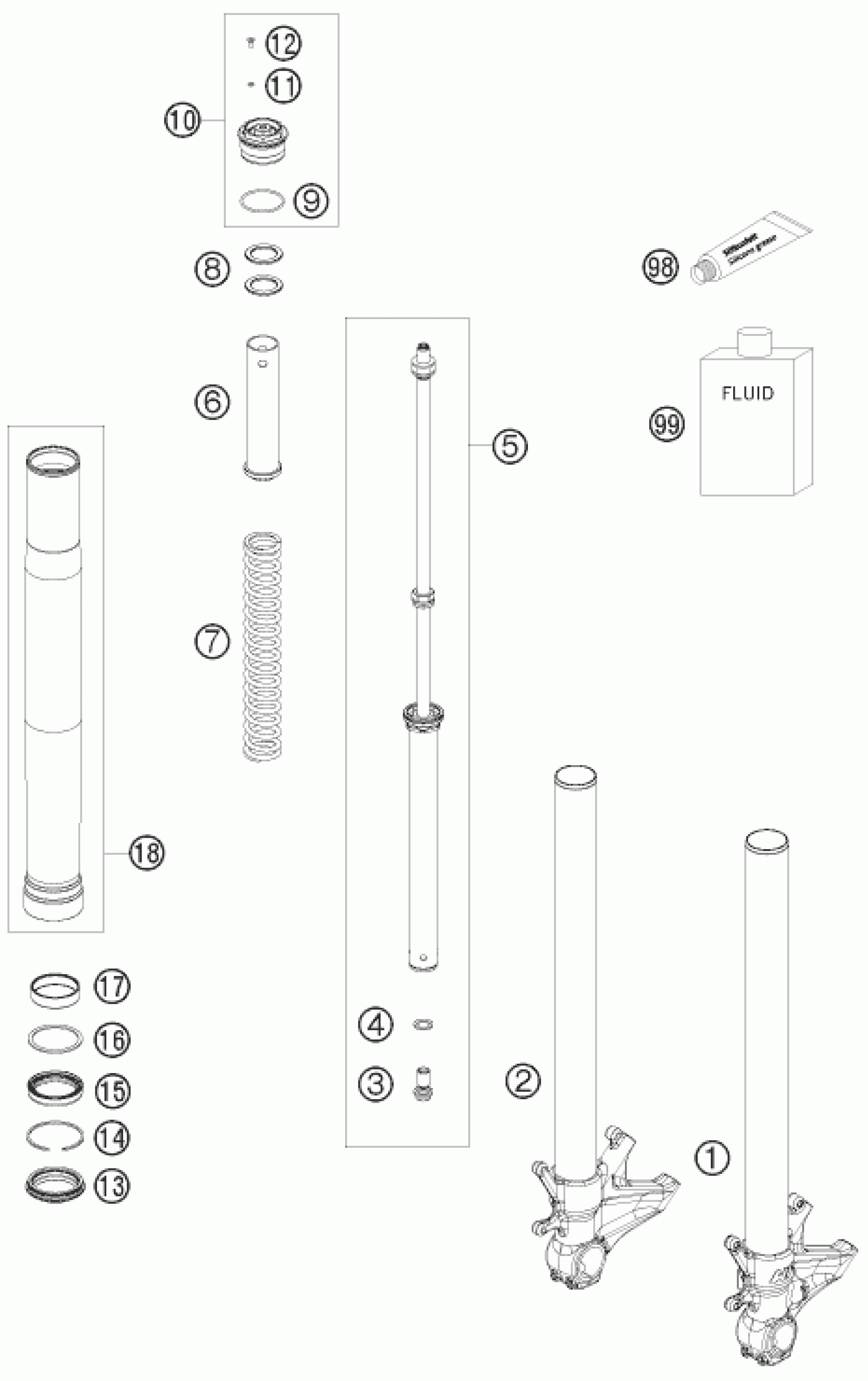

KTM 1190 RC 8 R 2009 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

AXLE-CLAMP L/S CPL. W. TUBE

43570523SA

Unavailable

2

AXLE-CLAMP R/S CPL. W. TUBE

43570522SA

Unavailable

3

HH collar screw M12x1x23

48600176

Unavailable

4

SEALING RING COPPER 12X18X1,5

48600704

Unavailable

5

CARTRIDGE CPL. RC 8 2009

43570453S2

Unavailable

6

Alu spacer D32XD28X145 cmpl.

43570445S

Unavailable

7

Spring set D38 L250 9.5N/MM

95010034S

Unavailable

8

Preload bush 26,5x38x2,5

43570133

Unavailable

8

Preload bush 26x35x4

43570134

Unavailable

8

Preload bush 26x38x10

43570135

Unavailable

8

Preload bush 26,5x38x1,5

43570136

Unavailable

9

O-ring 41x2 NBR70 siliconized

43570023

Unavailable

10

SCREW CAP M46X1 PA CPL.

43570447SA

Unavailable

11

O-ring 3x1,5 NBR70

48600046

Unavailable

12

Cross countersunk head screw M

48600481

Unavailable

13

Dirtscarper NOK 43mm

43570202

Unavailable

14

Snap ring SB53x1,5 acc drawing

43570008

Unavailable

15

Seal ring 43x52,9x9,5

43570201

Unavailable

16

Supportwasher 45x52,5x1,5

43570092

Unavailable

17

pilot bushing 43x47x12

43570204

Unavailable

18

OUTER TUBE 51/54L500 2LCPL.

43570454S

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

99

FORK OIL SAE5 5L 2008

48600765S1

Unavailable
