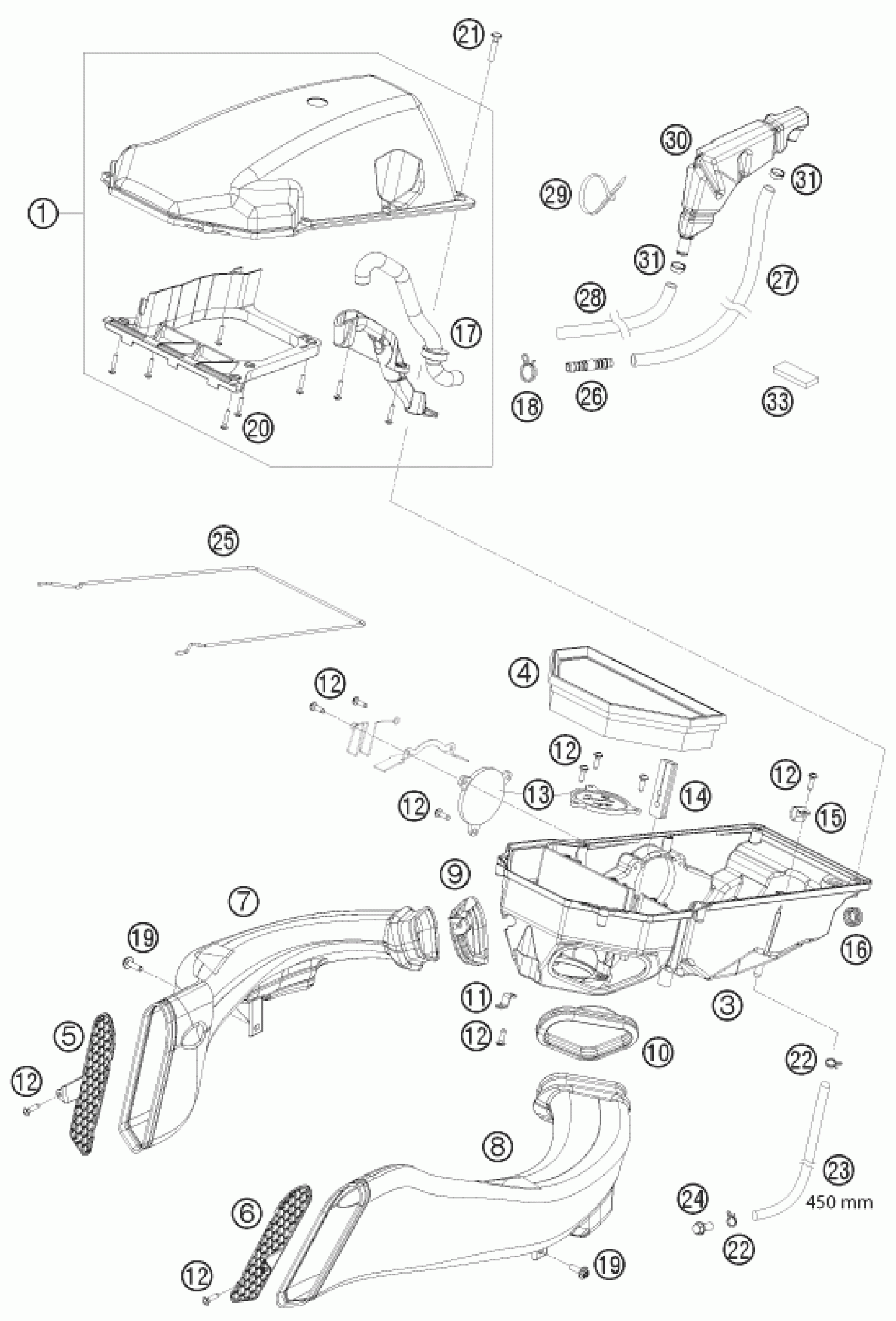

KTM 1190 RC 8 R 2009 AIR FILTER Diagram

#

Description
Price

1

FILTER BOX UPPER PART CPL 09

69006002144

Unavailable

3

FILTER BOX LOWER PART 09

69006001100

Unavailable

4

FILTER ELEMENT

69006015100

Unavailable

5

PROT. GRILL INTAKE SNORKEL R/S

69006041060

Unavailable

6

PROT. GRILL INTAKE SNORKEL L/S

69006040060

Unavailable

7

INTAKE SNORKEL R/S

69006041000

Unavailable

8

INTAKE SNORKEL L/S

69006040000

Unavailable

9

SNORKEL SEALING R/S

69006041050

Unavailable

10

SNORKEL SEALING L/S

69006040050

Unavailable

11

BRACKET F. EFI-PLUG

69006015050

Unavailable

12

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

13

FILTER BOX COVER R/S

69006004000

Unavailable

14

THROTTLE ROPE CHANNEL

69006001030

Unavailable

15

PVC-CLAMP HEYCO 13,9 3379

69007029000

Unavailable

16

PROTECTION SLEEVE FUEL HOSE

69006001040

Unavailable

17

MOLDED HOSE ENGINE BREATHER 08

69006088000

Unavailable

18

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

19

HH collar screw M6x20 TX30

0024060206

Unavailable

20

PLASTIC SCREW KA40X25WN1412

0081400253

Unavailable

21

SPECIAL SCREW T60 6X30 WS=6

0017060303

Unavailable

22

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

23

HOSE NBR 7X11 PER METER

60015019001

Unavailable

24

HH collar screw M8x12 TX40

0025080126

Unavailable

25

GASKET F. AIRBOX

69006001060

Unavailable

33

OIL SEPARATOR FOAM RUBBER

69030093000

Unavailable

31

VARIABLE ONE-EAR CLAMP 18,5MM

00050185706

Unavailable

26

OIL SCRAPER CONNECTOR RING

69030089000

Unavailable

27

OIL SEPARATOR FOAM TUBE 720

69030091720

Unavailable

28

OIL SEPARATOR FOAM TUBE 505

69030090505

Unavailable

29

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

30

OIL SEPARATOR

69030088000

Unavailable
