MASK, FENDERS

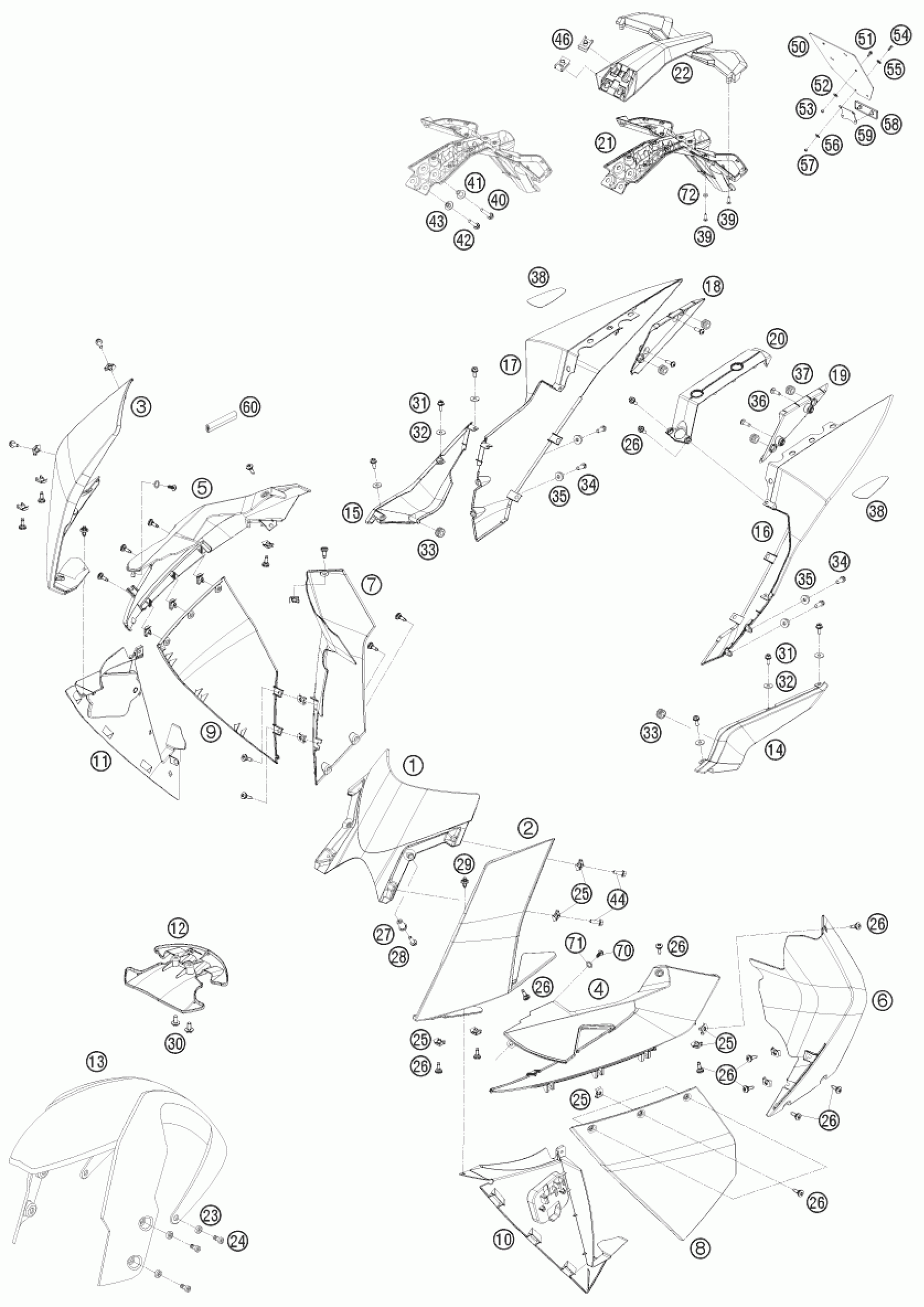

KTM 1190 RC 8 ORANGE 2009 MASK, FENDERS Diagram
#
1
FAIRING SCREEN HIGH 08
69008008000
$43.48
2
FR.FAIR.UP.PART L/S ORBR RC8
6900800100077A
$257.30
3
FR.FAIR.UP.PART R/S OR.BRRC8
6900800200077A
$257.30
4
FR.FAIR.LO.PART L/S OR.MA. RC8
6900800300075A
$201.96
5
FR.FAIR.LO.PART R/S OR.MA. RC8
6900800400075A
$218.47
6
EXIT-AIR SHAFT L/S BL.MATT RC8
6900805200033A
$252.46
7
EXIT-AIR SHAFT R/S BL.MATT RC8
6900805300033A
$252.46
8
COOLER FAIRING L/S OR. BR. RC8
6900805000077A
$363.54
9
COOLER FAIRING R/S OR. BR. RC8
6900805100077A
$363.54
10
FRESH-AIR SHAFT L/S BL. MA.08
6900802200033
$58.06
11
FRESH-AIR SHAFT R/SBL. MA.08
6900802300033
$33.54
12
UP. FRESH-AIR SHAFT BL. MA. 08
6900802100033
$8.59
13
FRONT FENDER OR. MATT 08
6110801000075A
$255.08
14
SIDE COVER L/S BL. BR. RC8
6900804300030A
$97.08
46
clip nut M6
54603048100
$4.11
15
SIDE COVER R/S BL. GL. RC8
6900804400030A
$92.45
16
REAR FAIRING L/S BL. BR. RC8
6900804100030A
$254.02
17
REAR FAIRING R/S BL. BR. RC8
6900804200030A
$258.74
18
REAR LIGHT ADAPTER R/S
69008039000
$7.47
19
REAR LIGHT ADAPTER L/S
69008038000
$7.47
20
UPPER REAR END PANEL
6900803100033
$15.98
21
LICENSE PLATE BRACKET LO. PART
69008018000
Unavailable
22
LICENSE PLATE BRACKET UP. PART
69008017000
Unavailable
23
SPECIAL WASHER
61108045000
$4.11
24
Cap head bold ISO 14580 M6x16
014580060166
$2.05
25
clip nut M5
69008021080
Unavailable
26
special screw M5x17
69008021060
Unavailable
27
blind plug nut M5 WN16A
60008008050
$3.73
28
HH collar screw M5x16 TX30
0025050166
$2.05
29
Spread rivet cmpl. 6.2mm
76503075000
$3.08
30
HH collar screw M6x13 TX30
0024060136
$3.08
31
SCREW TORX M5X10 05
58605083010
$2.05
32
Washer tail section UT D=14mm
75008023000
$3.08
33
rubber grommet D=8mm open
31008060000
$2.05
34
HH collar screw M8x20
0025080206
$2.05
35
WASHER MOUNT. REAR FAIRING
6900300405001
$7.10
36
EJOT PT SCREW K50X16 1451
0081050161
$1.49
37
RUBBER SLEEVE 10X14X20 08
69014078000
$2.05
38
PASSENGER´S SEAT PLATE KIT
69007047050
$15.79
39
SCREW FOR PLASTIC K40X16 T20
0081040161
$1.49
40
HH collar screw M6x25 TX30
0025060256
$3.08
41
COLLAR BUSH. 6,2X10X21X14MM 08
69007028000
$5.23
42
HH collar screw M6x20 TX30
0025060206
$3.08
43
BUSHING LICENSE PLATE BRACKET
69008020000
$4.11
44
HH collar screw M5x20 TX30
0025050206
$2.05
50
license plate mouning plate
60012081200
$8.41
51
HH collar screw M6x15 TX30
0024060156
$3.08
52
Washer DIN9021-A 6.4
0021060003
$2.05
53
Self lock. nut DIN985-M6-A2
0985060003
$2.05
54
OVAL HEAD SCREW DIN0966-M 5X16
0966050163
$1.49
55
WASHER 6MM
40006006000
$1.49
56
WASHER DIN0125-A 5,3
0125050003
$1.49
57
Self locking nut DIN 985 M5
0985050003
$2.05
58
REFLECTOR RED
58412080000
$5.23
59
BRACKET FOR REFLECTOR
58412080050
$6.07
70
EJOT PT SCREW K60X12 1451
0081060121
$2.05
71
WASHER PA 8,3X12X5
69008003050
$3.08
72
WASHER DIN9021-A 4,3
0021040003
$1.49
60
EDGE PROTECTOR 14X9,5X66 MM 06
60114010070
$3.08
