CYLINDER HEAD REAR

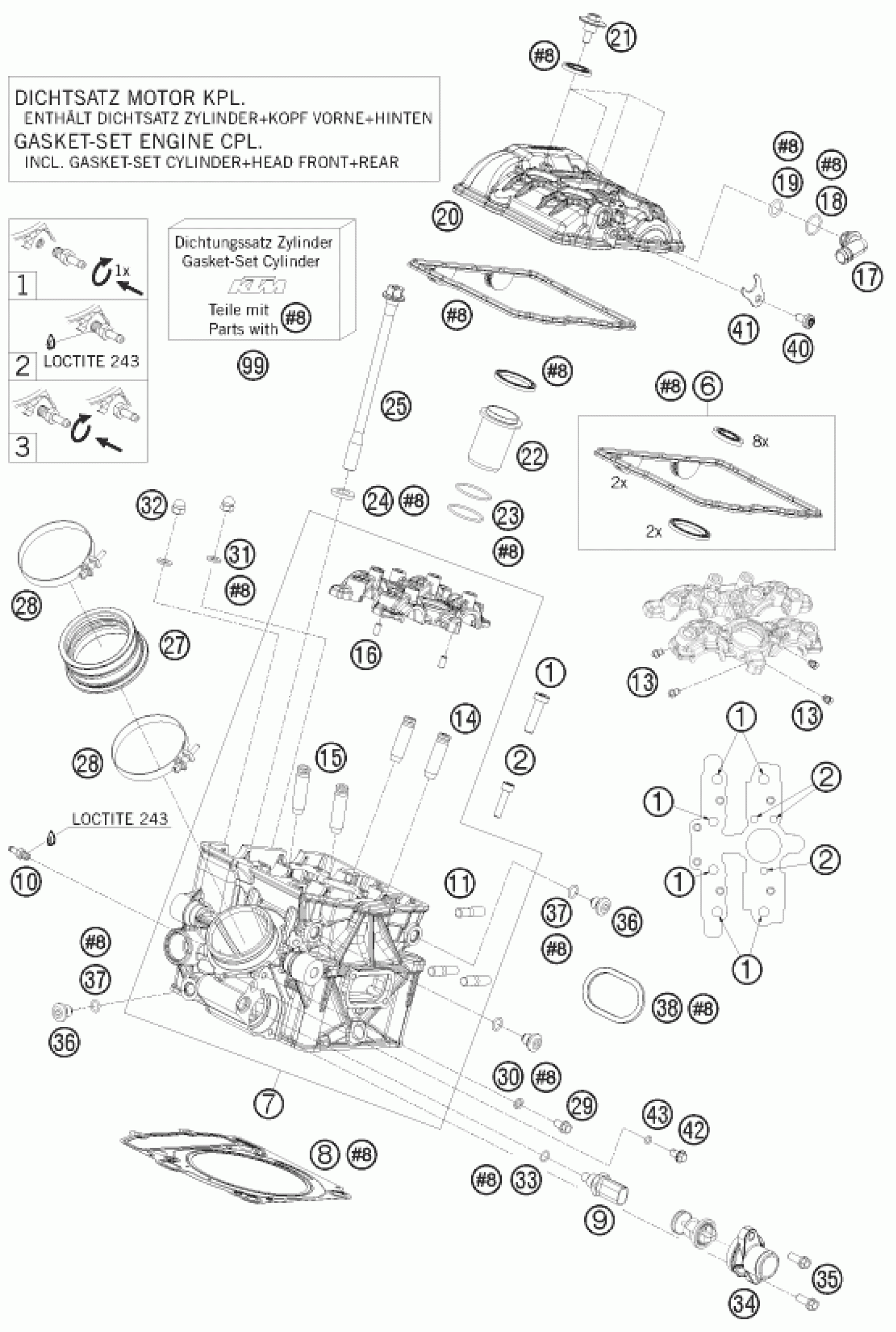

KTM 1190 RC 8 ORANGE 2009 CYLINDER HEAD REAR Diagram
#
Description
Price
1
AH SCREW DIN7984-M 8X30 10.9
0984080305
$1.49
2
AH SCREW DIN0912-M 6X25 10.9
0912060255
$1.49
6
VALVE COVER GASKET SET
61236099100
$55.25
7
CYL.HEAD RC8 REAR 09
6123612010024
$987.40
8
CYLINDER HEAD GASKET 08
61230036000
$27.76
9
TEMPERAT.-SENSOR WATER LC8 02
60011252000
$36.64
10
VACUUM CONECTION 2006
61036023100
$10.46
11
STUD M 8X16 10.9
0835080165
$3.08
13
oil jet 50 M5
60030063050
$9.44
14
VALVE GUIDE EXHAUST 08
61236026000
$25.70
15
VALVE GUIDE INTAKE 08
61236025000
$22.43
16
needle roller DIN 5402 5x9.8
0402050980
$1.49
17
CONNECTING ANGLE
61236082100
$5.23
18
O-RING 15,00X1,50 VITON
0770150151
$3.08
19
O-RING 12,00X2,00 NBR 70
0770120020
$2.05
20
VALVE COVER REAR 09
6123615210033
$41.13
21
collar screw M 6 WS=10 03
60036052020
$3.08
22
INSERT SPARK-PLUG SHAFT 08
61236075000
$19.44
23
O-RING 29,87X1,78 VITON
0770298178
$2.05
24
WASHER 11,1X20X3 08
61236079050
$5.51
25
CYLINDER HEAD SCREW 08
61236079000
$15.79
27
RUBBERSLEEVE INTAKE FLANGE 08
61236044000
$37.11
28
hose clamp Gemi 66
61236048000
$9.53
29
HH collar screw M6x10 TX30
0025060106
$3.08
30
CU-SEAL RING DIN7603-6X10X1
0603061001
$2.05
31
WASHER DIN0125-A 6,4
0125060003
$1.49
32
HH CAP NUT DIN1587-M 6 SS.
0587060002
$2.05
33
o-ring 10.00x2.00 silicone
0770100020
$2.05
34
WATER CONNECTION CPL.
61235019100
$22.43
35
HH collar screw M6x20 TX30
0025060206
$3.08
36
SCREW PLUG
77336056095
$7.00
37
O-RING 9X1,5 NBR
0770090015
$2.05
38
EXHAUST PIPE FLANGE GASKET
69005005100
$18.69
40
EJOT ALtracs 60x12 TX30
0080060123
$1.49
41
connecting angle retaining pla
61236082150
$5.23
99
GASKET KIT CYLINDER+HEAD F+R
61230097100
$262.17
42
VENT SCREW M6X10 CPL.
59036006090
$4.11
43
O-RING 5,0X1,2 NBR 70
0770050012
$1.49
