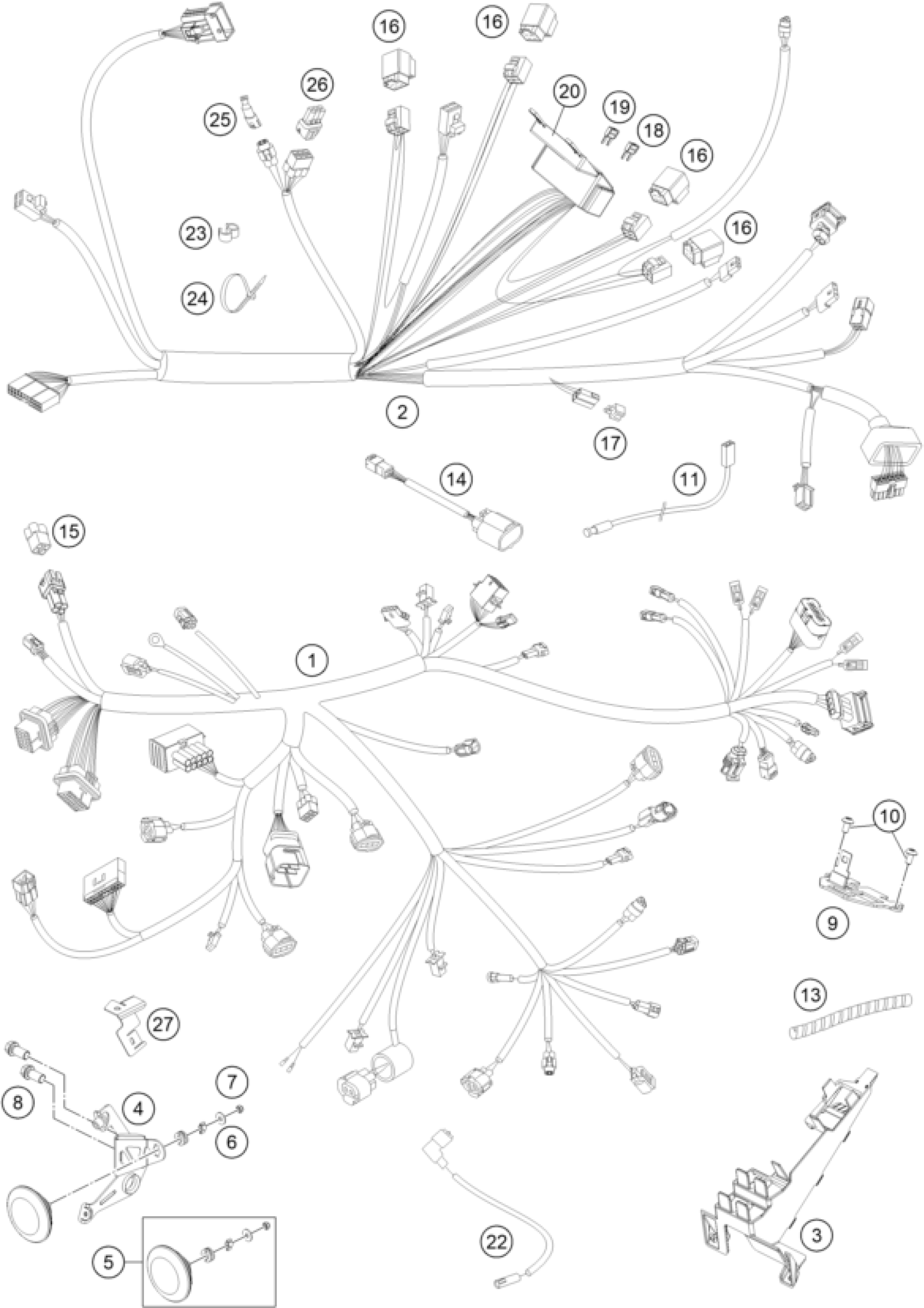

KTM 1190 RC 8 ORANGE 2008 WIRING HARNESS Diagram

#

Description
Price

1

MAIN WIRING HARNESS

69011075000

Unavailable

2

WIRING HARNESS FRAME REARPART

69011077000

Unavailable

3

BRACKET FOR PLUGS

69011048000

Unavailable

4

HORN BRACKET RC8 CPL.

69011060010

$78.25

5

HORN CPL.

69011060000

$28.70

6

washer DIN 9021 A - 5.3

0021050003

$1.69

7

Self locking nut DIN 985 M5

0985050003

$2.54

8

HH collar screw M8x16 TX40 SL

0025080166S

$3.39

9

PLUG BORD STEERING HEAD

69011049000

$38.61

10

SCREW TORX M5X10 05

58605083010

$2.54

11

TEMPERATURE SENSOR 07

61111018000

Unavailable

13

SPIRAL HOSE D=9MM PER METER

58513001000

Unavailable

14

STARTER INTERLOCK

61111020000

$97.89

15

SPARE CONNECTOR AN 4-PINS

000700000AN

$13.83

16

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

17

DIODE S3H-15 97

58411096100

$9.81

18

FUSE 15A 07

75011088015

Unavailable

19

FUSE 10A 07

75011088010

Unavailable

20

RUBBER CASING FOR FUSE BOX

75011087050

$11.59

22

OIL-PRESSURE SWITCH CABLE 03

60011092000

$4.24

23

CLIP 5/7 MM 06

60111094000

$3.39

24

Cable tie w. socket D=6.5

69011092000

$1.69

25

END PLUG CAN-BUS 08

69011040000

Unavailable

26

SPARE CONNECTOR BH 6-PINS

000700000BH

$22.15

24

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

24

Cable tie 200/4.6mm black

44011076200

Unavailable

24

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

27

BRACKET F. PLUG RC8 08

69011078050

$13.64
