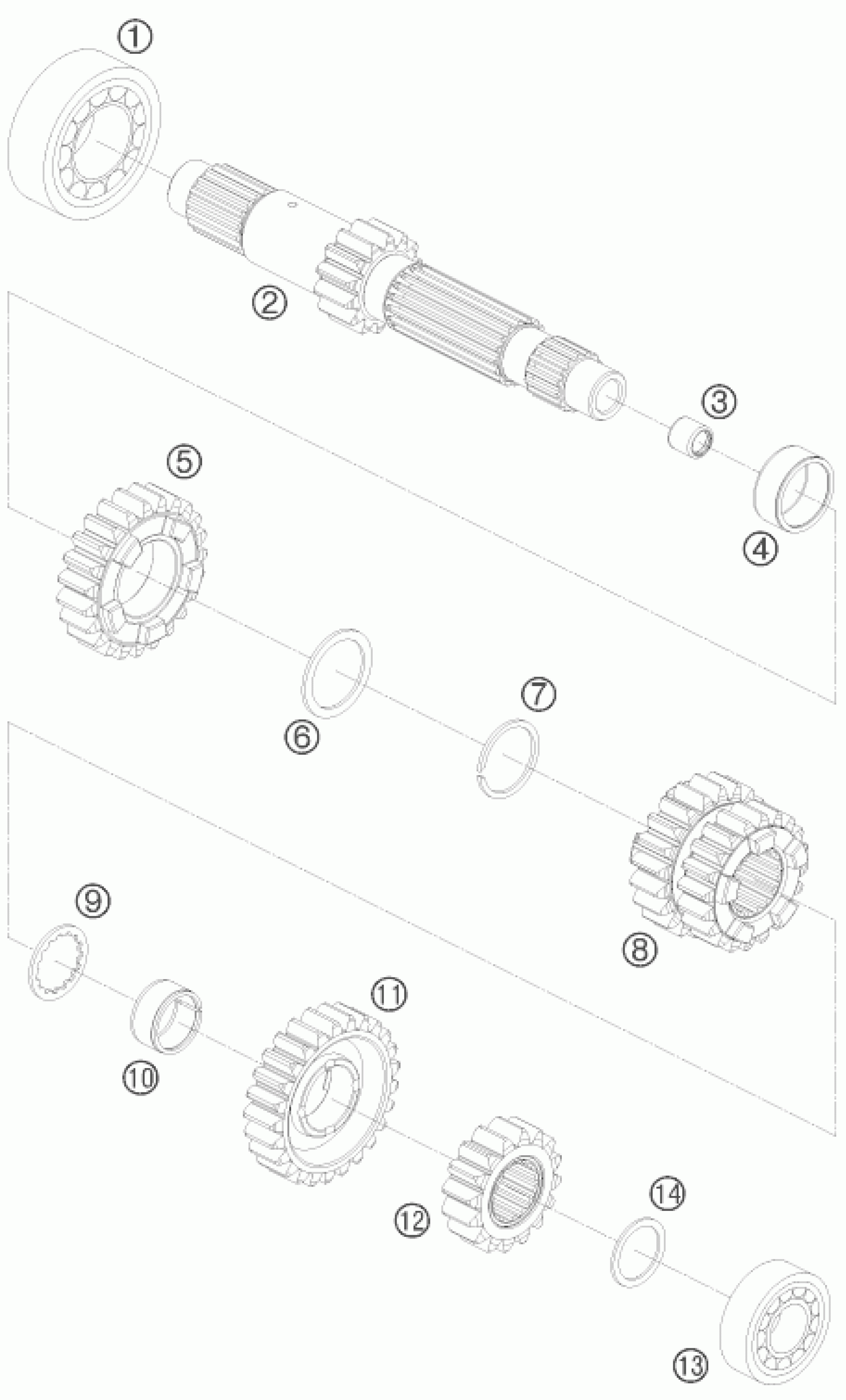

KTM 1190 RC 8 ORANGE 2008 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

14

STOP DISK 20,2X28X1,5

60033040015

Unavailable

14

STOP DISK 20,2/28/1,6

60033040016

Unavailable

14

STOP DISK 20,2/28/1,7

60033040017

Unavailable

14

STOP DISK 20,2/28/1,8

60033040018

Unavailable

14

STOP DISK 20,2/28/1,9

60033040019

Unavailable

14

STOP DISK 20,2/28/2,0

60033040020

Unavailable

14

STOP DISK 20,2/28/2,1

60033040021

Unavailable

14

STOP DISK 20,2/28/2,2

60033040022

Unavailable

1

BALL BEARING 6206 C3 J1 NSK

0625062062

Unavailable

2

MAIN SHAFT 14T

61233001000

Unavailable

8

SLIDING GEAR 3./4.G

61233003000

Unavailable

3

NEEDLE BUSH HK0912 9/13/12 03

0618091312

Unavailable

4

NEEDLE BEAR. K 26-31-13

0405263113

Unavailable

5

IDLER GEAR 5.G

61233005000

Unavailable

6

STOP DISK 27,9/35,75/1,5

61233042000

Unavailable

7

LOCK RING SW 27

0417270150

Unavailable

9

STOP DISK 22,2/30,2/1,5

61233041000

Unavailable

10

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

11

IDLER GEAR 6.G

61233006000

Unavailable

12

SOLID GEAR 2.G

61233002000

Unavailable

13

BALL BEARING 6204 DU J1 C3

0625062040

Unavailable
