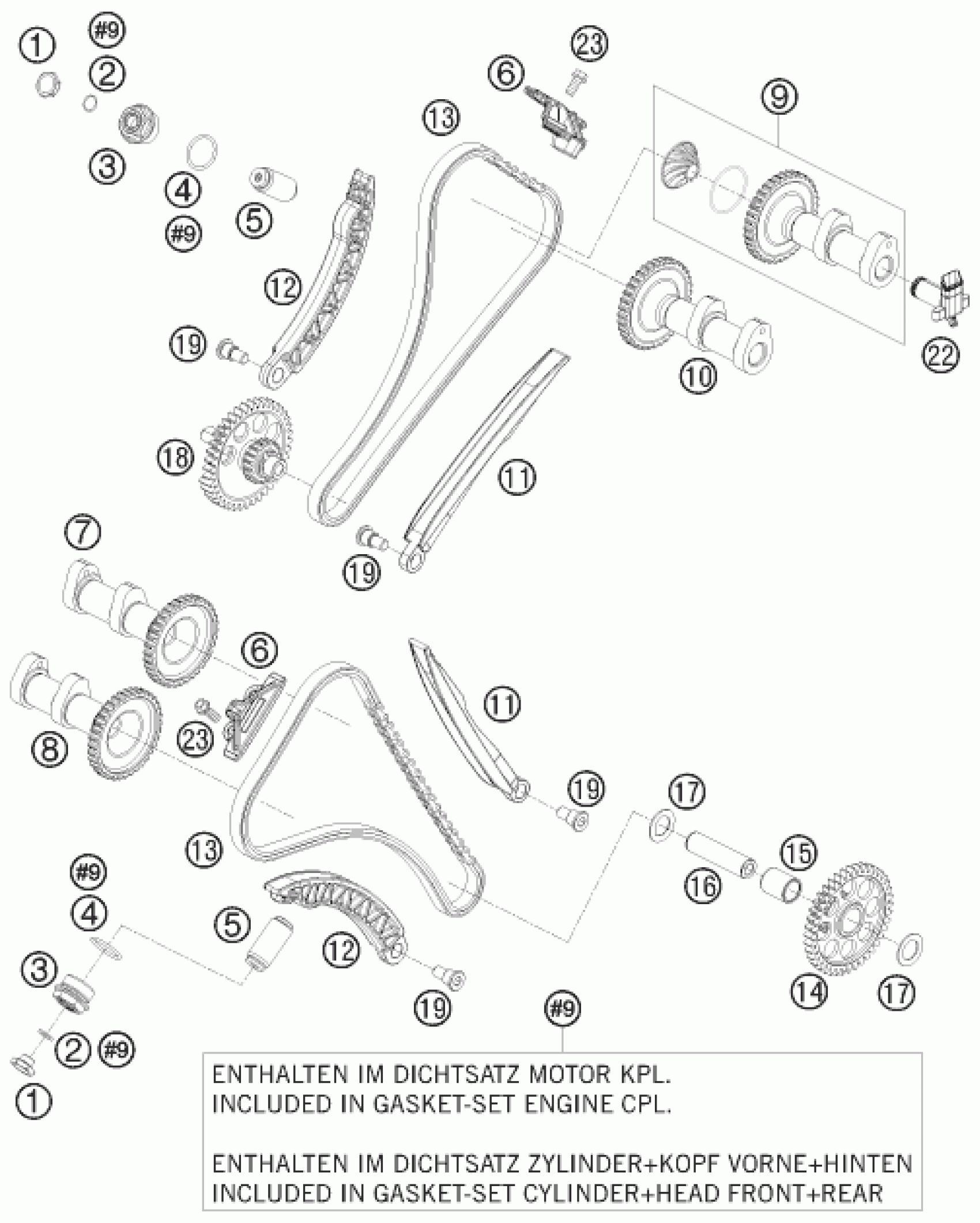

KTM 1190 RC 8 ORANGE 2008 TIMING DRIVE Diagram

ANGLE PIECE F. BREATHER SYSTEM

61236081000

$6.07

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

HOLDING BOLT

77336008010

$8.31

o-ring 10.00x1.00 NBR70

0770010010

$2.05

SCR. PLUG TIM. CHAIN TENS. CPL

61236008100

$9.53

o-ring 22.00X2.00 NBR70

0770220020

$2.05

CHAIN ADJUSTER HYD. 05

77036003000

$73.86

GUIDE RAIL TOP 08

61236005000

$17.48

CAMSHAFT INTAKE 08

61236009000

Unavailable

CAMSHAFT EXHAUST 08

61236010000

Unavailable

CAMSHAFT IN/RE CPL.

61236109144

$110.23

CAMSHAFT EXHAUST 08

61236110000

$103.67

GUIDE RAIL 08

61236001000

$7.00

TENSIONER RAIL 08

61236002000

$5.79

TIMING CHAIN 08

61236013000

$41.69

IDLER GEAR L/S

61230057000

$69.97

NEEDLE BEARING K 15X19X24ZW

0405151924

$17.76

BEARING BOLT 15X57,5 08

61230057050

$15.98

STOP DISK 15,2X25X1

61230057060

$4.11

IDLER GEAR R/S

61230157000

$114.51

hex socket head shoulder screw

61236002050

$5.23

O-RING 34X1,5 VITON

0770034015

$3.08

CENTRIFUGE CONE

61236080100

$5.88
