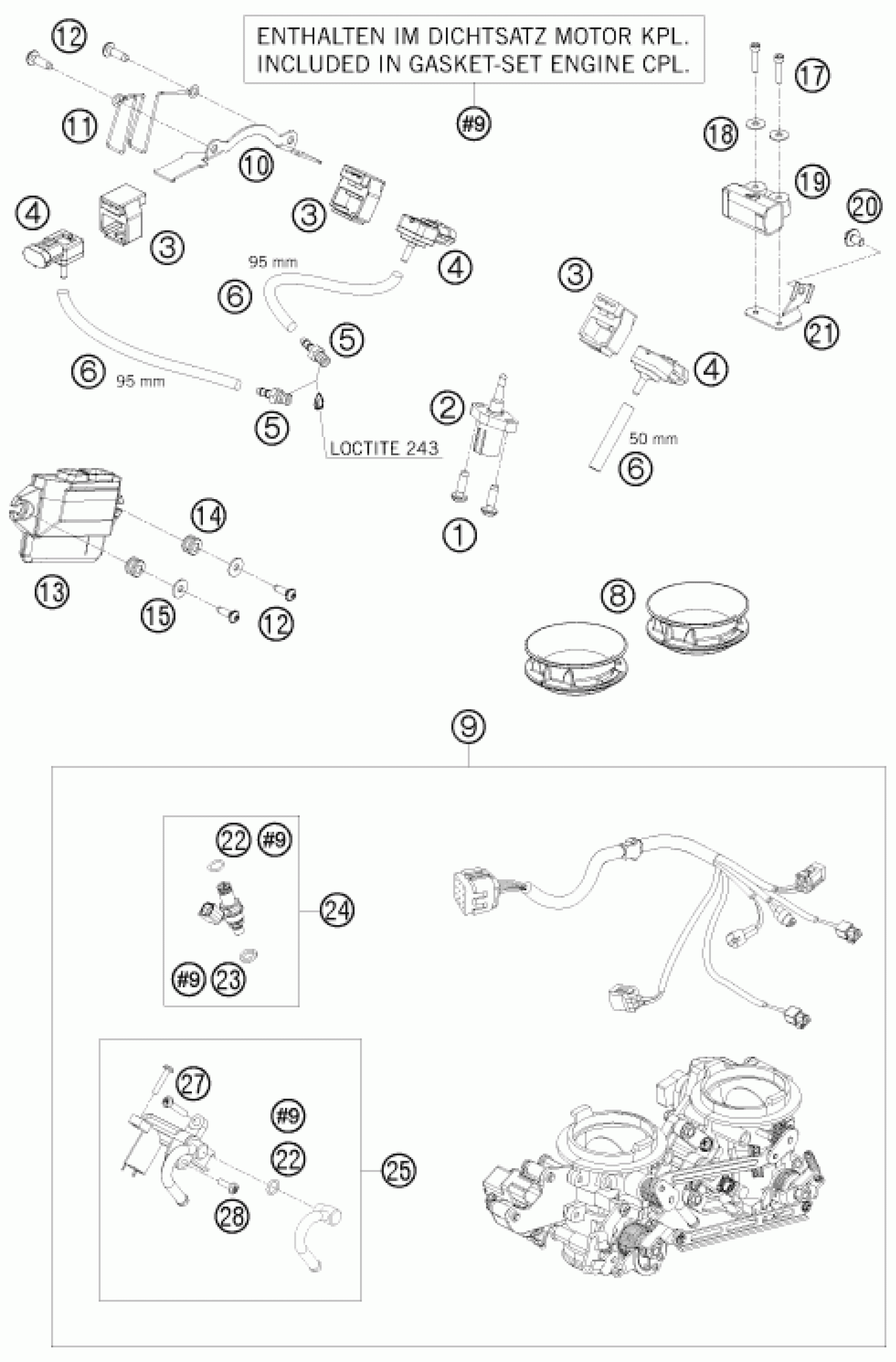

KTM 1190 RC 8 ORANGE 2008 THROTTLE BODY Diagram

#

Description
Price

22

O-RING 7,2x2,2

75041023020

$9.06

23

SEAL RING

75041023010

$11.49

25

FUEL PIPE CPL.

61241013044

$130.33

27

SCREW SHOULDER

61241013060

Unavailable

28

SCREW FOR SUPPORT STEPPER MOT.

61041060040

$4.24

2

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

3

RUBBER SUPP. PRESSURE SENS. 06

61041085150

$5.23

4

PRESSURE SENSOR 06

61041085100

$144.36

5

VACUUM CONECTION 2006

61036023100

$10.46

6

HOSE 3,2X8,5 PER METER

60031098001

Unavailable

8

INTAKE TRUMPET 08

61241040000

$7.56

9

THROTTLE BODY CPL. DK52

61241001000

Unavailable

10

SENSOR-RETAIN. PLATE AIRBOX 08

69006001031

$9.72

11

HOLDER WIRING HARNESS REAR

69006001032

$14.11

12

EJOT PT SCREW K50X16 1451

0081050161

$1.69

13

ELECTRONIC CONTROL UNIT

61041031200

$703.02

14

VIBRATION DAMPER DIGITALBOX 03

60039030000

$3.39

15

washer DIN 9021 A - 5.3

0021050003

$1.69

17

AH SCREW DIN 912-M 4X20

0912040203

$1.69

18

SHIM 4,3X15X1,25MM GALVANIZED

61041088050

$1.69

19

ROLLOVER SENSOR 05

61041088000

$67.69

20

HH collar screw M6x13 TX30

0024060136

$3.39

21

HOLDER ROLLOVER SENSOR

69041088050

$17.01

24

INJECTOR CPL.

61241023044

$221.96

1

SCREW FOR PLASTIC D=5X18

0081500181

Unavailable
