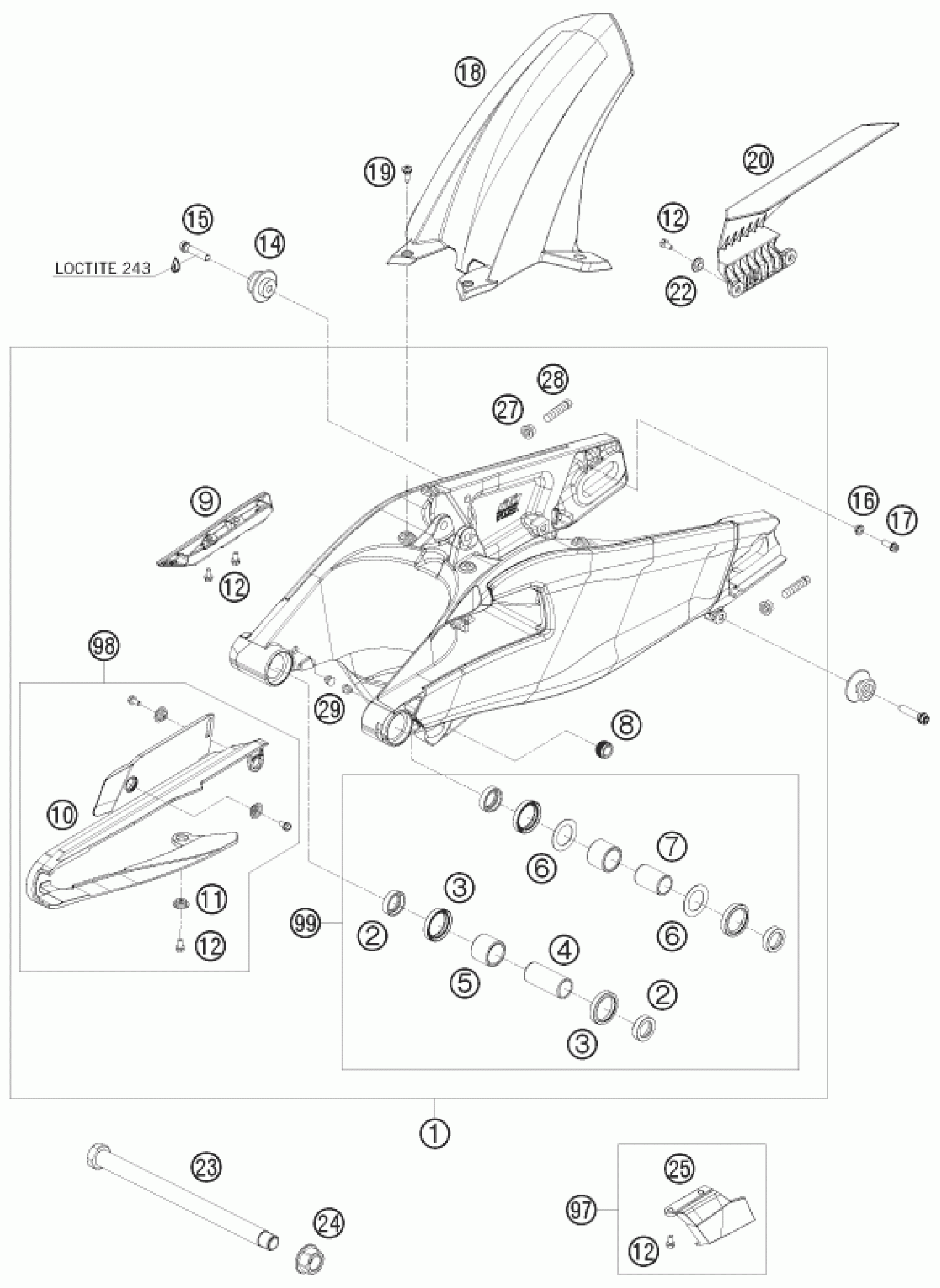

KTM 1190 RC 8 ORANGE 2008 SWING ARM Diagram

#

Description
Price

1

SWING ARM CPL. RC8 08

6900403004401

Unavailable

2

Bucket f. shaft seal ring 03

60004034000

$8.03

3

Radial shaft seal 30X40X7

0760304073

$4.24

4

Inner ring JR 20X25X56.5

69004032000

$36.08

5

NEEDLE BUSH HK2526B 03

60004031000

$10.65

6

Stop disk 03

60004033000

$2.54

7

INNER RING JR20X25X38,5 03

60004032000

$18.13

8

ADAPTOR NUT M10

69004095000

Unavailable

9

BRAKE HOSE GUIDE

69013010000

Unavailable

10

CHAIN SLIDING GUARD

69004066100

Unavailable

11

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$8.31

12

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

14

SUPPORT F. LIFITNG GEAR

69004040000

$15.33

15

HH COLLAR SCREW M8X35 TX40

0025080356S

$3.39

16

BUSHING F. BRAKE-CAL. BRACKET

69004072000

$6.82

17

HH collar screw M6x16 TX30 SL

0025060166S

$2.54

18

SPLASH PROTECTION

69004050000

$16.92

19

special screw M5x17

69008021060

$3.39

20

UPPER CHAIN GUARD RC8

6900406010033

Unavailable

22

Chain slider bushing

69004060050

Unavailable

23

SWING ARM BOLT 08

69004037044

Unavailable

99

swingarm rep. kit

69004230010

$96.30

24

COLLAR NUT M19X1,5 WS=27MM

60004038000

Unavailable

25

LOWER CHAIN GUIDE

6900406100033

Unavailable

27

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.54

28

screw M10x1.25x50 WS10

50304040100

$5.23

29

PLUG SFL12 GREY 05

60004042000

$1.69

97

CHAIN GUIDE KIT REAR RC8

6900406101033

Unavailable

98

CHAIN GUIDE KIT RC8

69004066110

Unavailable
