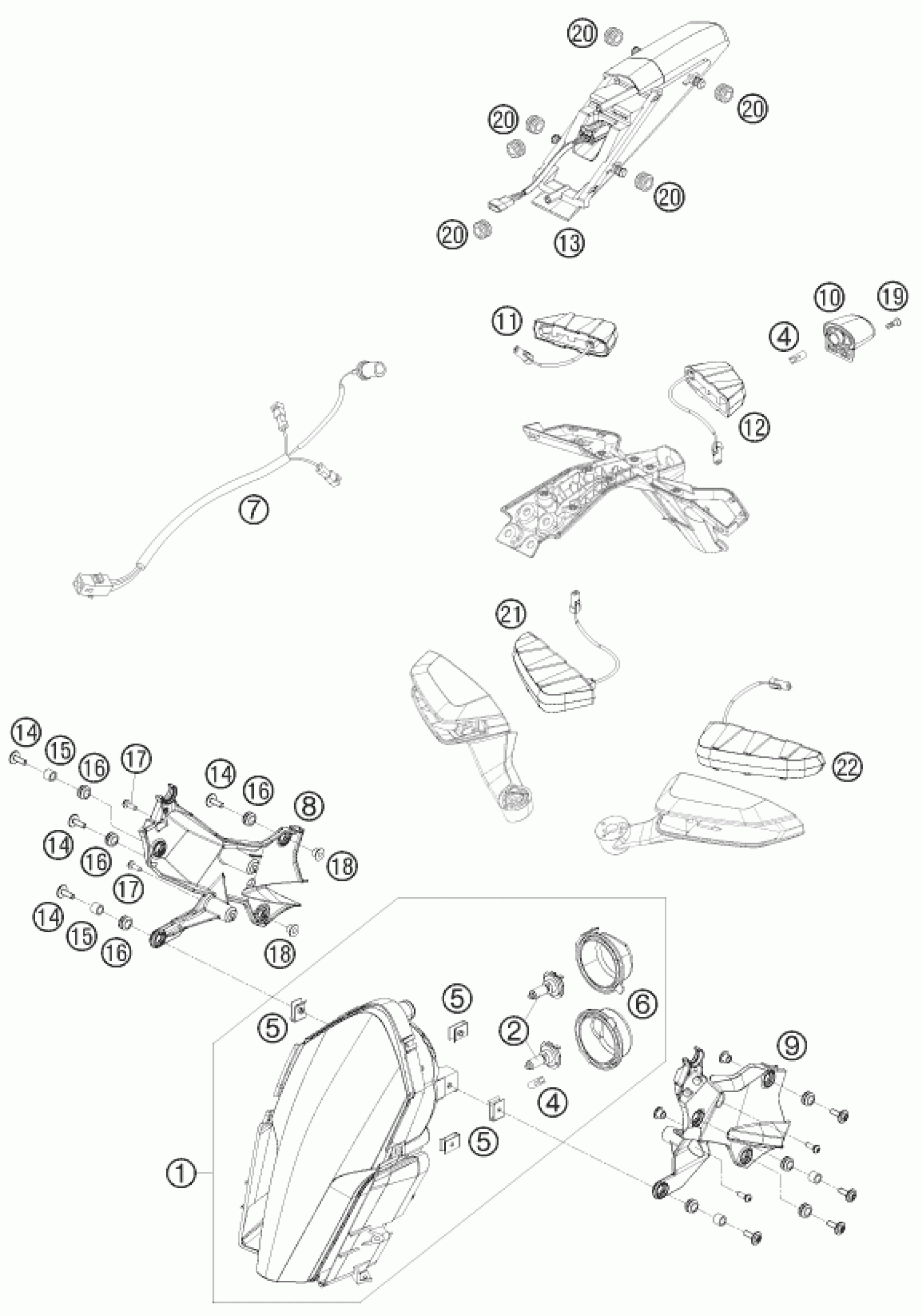

KTM 1190 RC 8 ORANGE 2008 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEADLIGHT LED

69314001000

Unavailable

2

BULB H7 12V 55W

60014003100

Unavailable

4

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

5

clip nut M5

69008021080

Unavailable

6

RUBBER CAP FOR HEADLIGHT 08

69014001050

Unavailable

8

HEAD LIGHT BRACKET R/S RC8

6901401110033

Unavailable

9

HEAD LIGHT BRACKET L/S 08

6901401000033

Unavailable

10

LICENSE PLATE ILLUMINATION 07

75014047000

Unavailable

11

FLASHER FR.L/S / RE.R/S EU 08

69014025000

Unavailable

12

FLASHER FR.R/S / RE.R/S EU 08

69014026000

Unavailable

13

REAR LIGHT CPL.

69014040000

Unavailable

14

SPECIAL SCREW M6X18 ISA30 08

69014017000

Unavailable

15

Bushing 6.1X9.2X7.5 08

69014014000

Unavailable

16

rubber grommet 9x11x16x8.5 mm

60006001022

Unavailable

17

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

18

collar bushing 6.1x9.2x15x8.5x

69014015000

Unavailable

19

SCREW FOR PLASTIC K40X16 T20

0081040161

Unavailable

20

RUBBER SLEEVE 10X14X20 08

69014078000

Unavailable

21

FLASHER FR.R/S / RE.L/S USA

69014526100

Unavailable

22

FLASHER FR.L/S / RE.R/S USA

69014525100

Unavailable

7

WIRING HARN. NUMB.-PLATE ILLU.

69011076000

Unavailable
