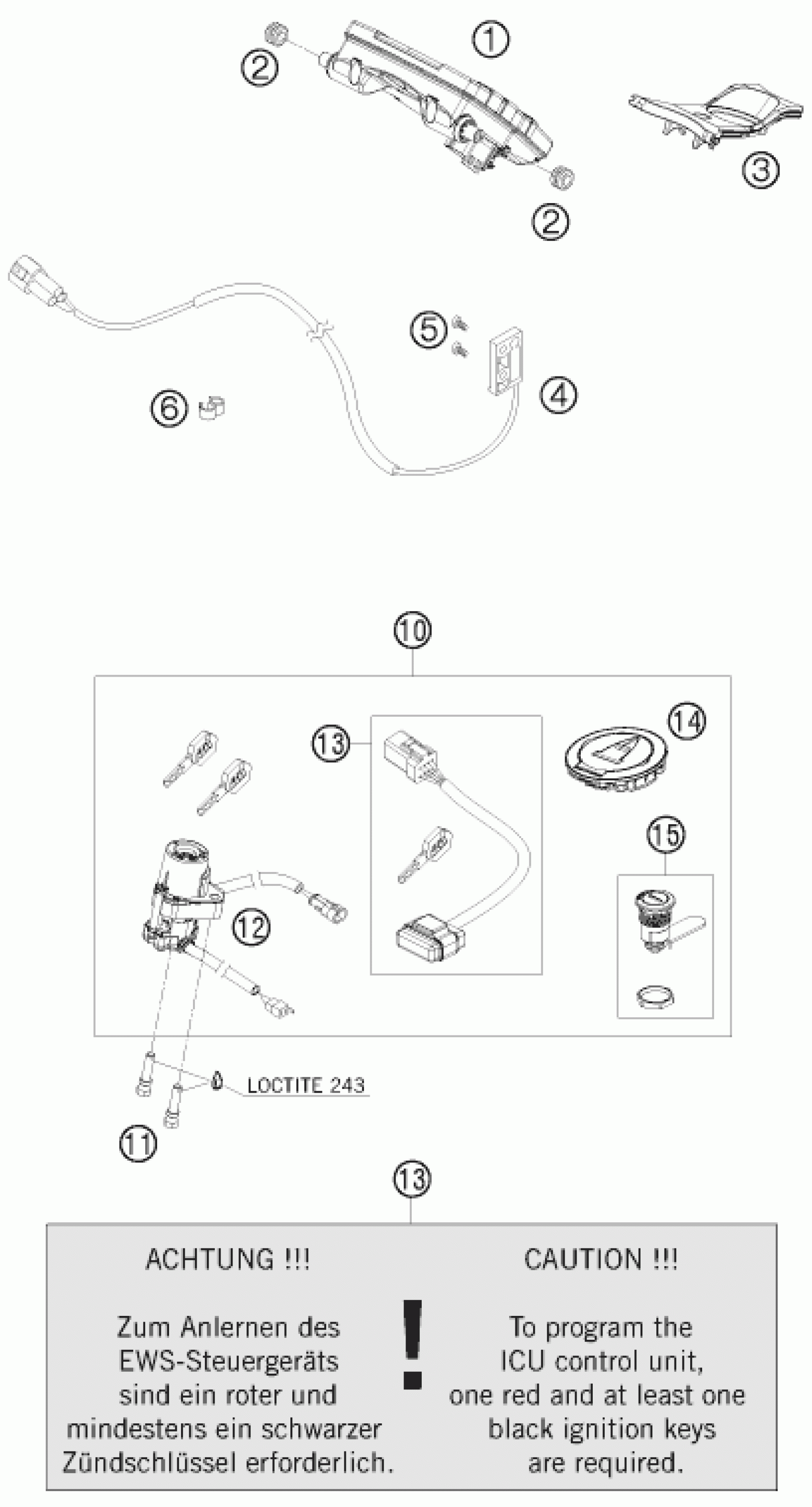

KTM 1190 RC 8 ORANGE 2008 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

1

SPEEDOMETER KM/H 07

69014069000

Unavailable

2

RUBBER SLEEVE 10X14X20 08

69014078000

Unavailable

3

COVER IGNITION LOCK 08

69014012000

Unavailable

4

SPEEDOMETER SENSOR 10

61014068100

Unavailable

5

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

Unavailable

10

LOCK KIT RC8 08

69011066044

Unavailable

11

TAMPER-PROOF SCREW 07

61111064000

Unavailable

6

CLIP 5/7 MM 06

60111094000

Unavailable

12

IGNITION LOCK RACELOCK W. ANT.

69011066000

Unavailable

14

TANK CAP

69007008000

Unavailable

15

SEAT LOCK

69007050000

Unavailable

13

IMMOBILIZER WITH MASTERKEY

69011021000

Unavailable

16

KTM ignition key

60411067000

Unavailable
