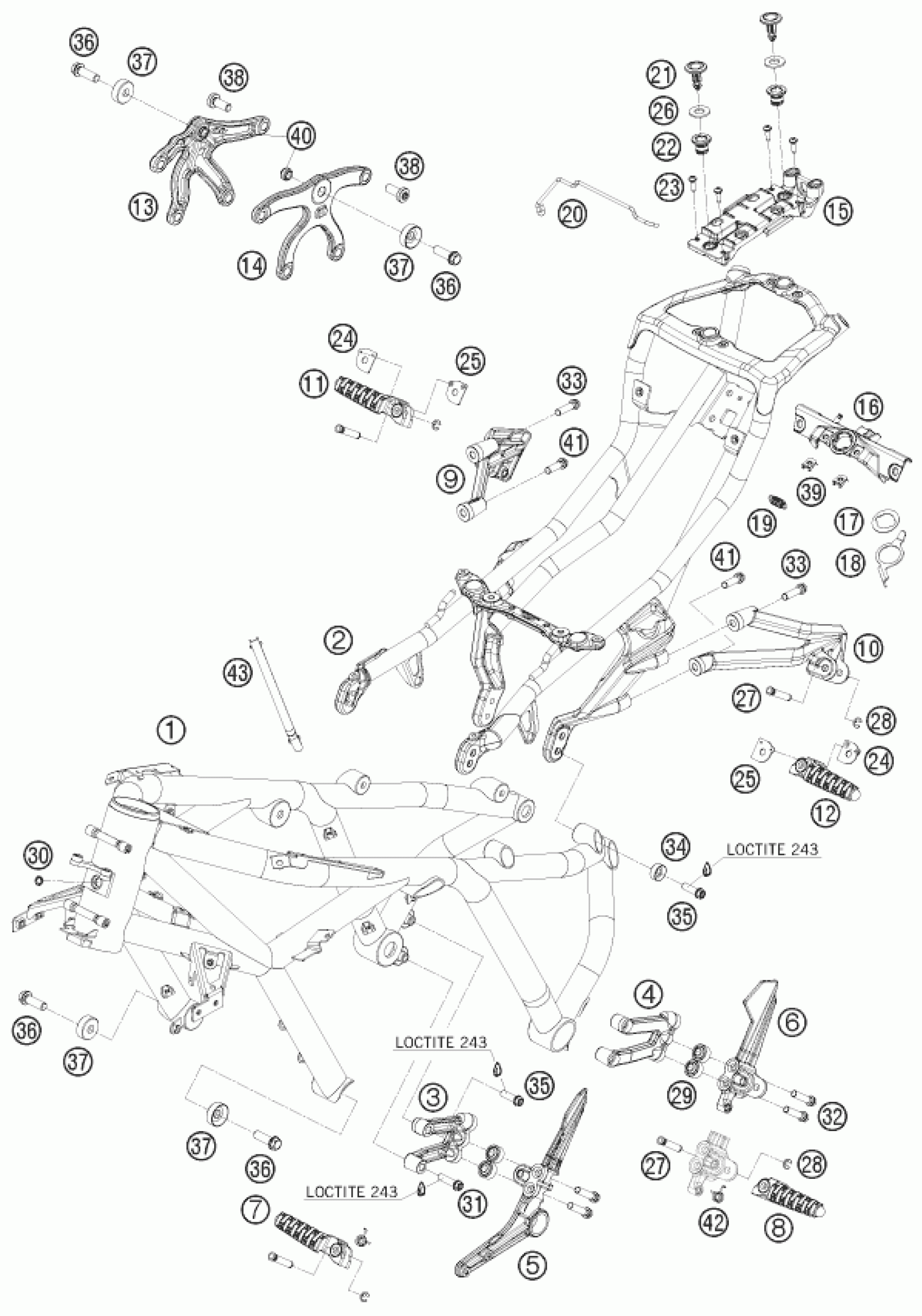

KTM 1190 RC 8 ORANGE 2008 FRAME Diagram

#

Description
Price

36

AH collar screw M10x30 ISA45

0035100309S

$3.39

37

WASHER ENGINE SUPPORT 08

6900300700001

Unavailable

38

AH collar screw M10x24 ISA45

0035100249

$3.39

39

clip nut M5

69008021080

$3.39

40

ADAPTOR NUT M10

69004095000

Unavailable

27

BOLT FOR FOOTREST REAR 03

60003044000

$8.87

1

FRAME ''OA08'' RC8

6900300100033

Unavailable

2

SUB FRAME PLATINUM 08

6900300200092

Unavailable

3

FOOTREST BRACKET R/S 08

69003039000

Unavailable

4

FOOTREST BRACKET L/S 08

69003038000

Unavailable

5

FOOTREST MOUNTING R/S 08

69003039050

Unavailable

6

FOOTREST MOUNTING L/S 08

69003038050

Unavailable

7

FOOTREST FRONT R/S 08

69003041000

Unavailable

8

FOOTREST FRONT L/S 08

69003040000

Unavailable

28

retaining washer DIN 6799 - 6

0799060003

$1.69

29

DISTANCE BUSHING 8,5X21X14 ALU

69003047000

Unavailable

9

FOOTREST BRACKET REAR R/S

6900304900001S

$121.92

10

FOOTREST BRACKET REAR L/S

6900304800001S

$100.88

11

Rear footpeg right cmpl.

69003051033

Unavailable

12

Rear footpeg left cmpl.

69003050033

$38.64

13

ENGINE SUPPORT R/S 08

69003006000

Unavailable

14

ENGINE SUPPORT L/S 08

69003005000

Unavailable

15

REAR SEAT ADJUSTMENT

69008025000

Unavailable

16

LOCK BRIDGE

69008027000

$6.44

17

WASHER LEVER REAR SEAT RELEASE

69008025070

Unavailable

18

LEVER REAR SEAT RELEASE

69008025060

Unavailable

19

SPRING F. REAR SEAT LOCK

69008025080

$4.24

30

SHAFT SEAL RING17X10X3 NBR

0760171030

$3.39

41

HH collar screw M8x50 TX40

0025080506

$3.08

43

CABLE DUCT BRAKE LIGHT SW. RC8

69011047000

$8.78

42

SPRING FOOTREST FRONT 05

61003042000

$5.23

20

ADJUSTMENT WIRE REAR SEAT

69008025050

Unavailable

21

CLOSURE CAP

69008026050

Unavailable

22

GUIDE BUSHING

69008026000

$5.51

23

EJOT PT SCREW K50X16 1451

0081050161

$1.69

24

ENGAGE PANEL FOOTREST R/S 03

60003052000

$5.23

25

ENGAGE PANEL FOOTREST L/S 03

60003152000

$5.23

31

HH COLLAR SCREW M8X30 TX40

0025080306S

$3.08

32

HH collar screw M8x35 TX40

0025080356

$4.11

33

HH collar screw M8x55 TX40

0025080556

$5.23

34

WASHER SUB FRAME MOUNTING 08

6900300400001

Unavailable

35

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

26

WASHER RC8

69008026060

$3.39
