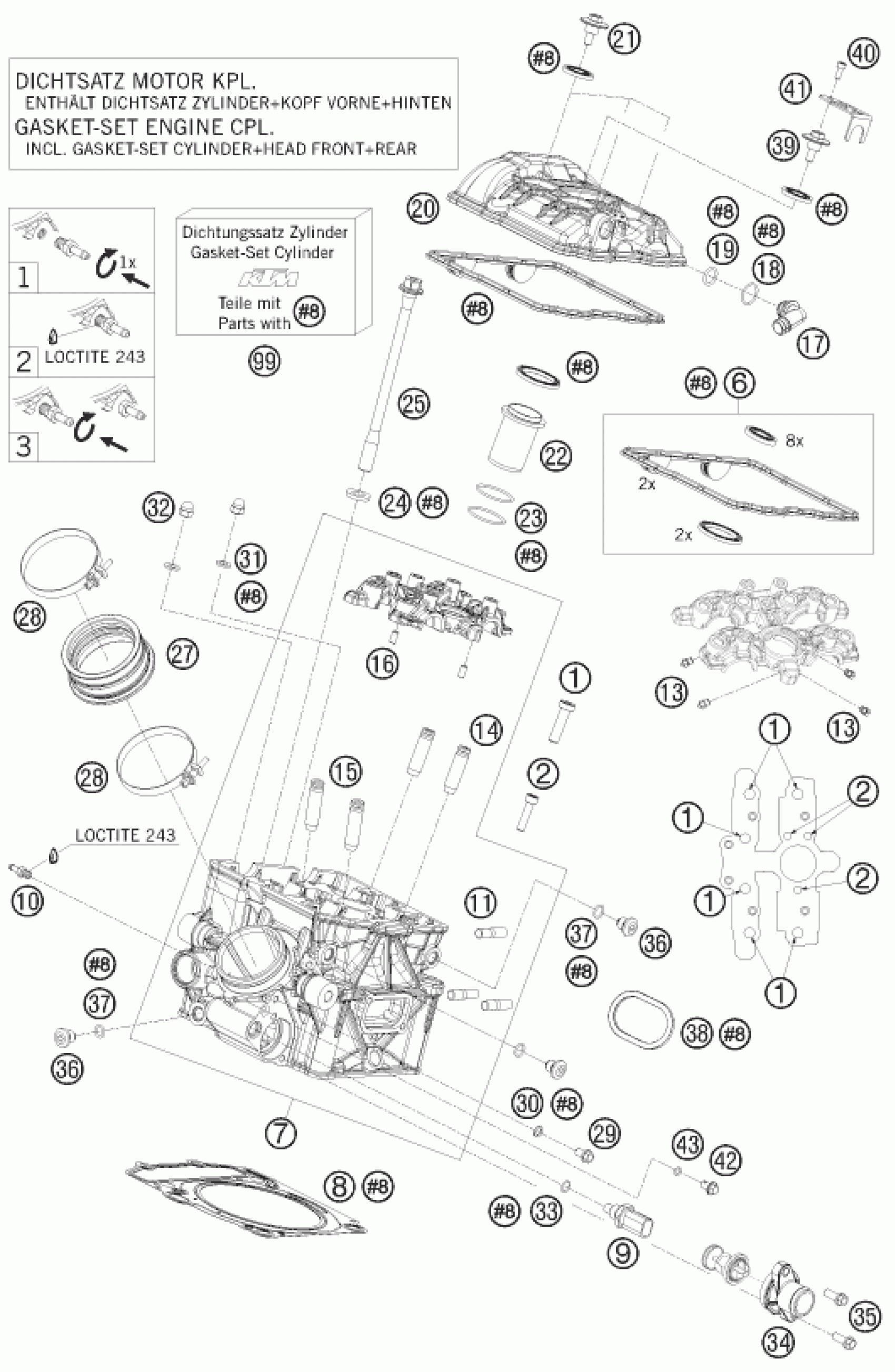

KTM 1190 RC 8 ORANGE 2008 CYLINDER HEAD REAR Diagram

#

Description
Price

6

VALVE COVER GASKET SET

61236099100

$55.25

7

CYL.HEAD RC8 REAR 08

61236120000

Unavailable

8

CYLINDER HEAD GASKET 08

61230036000

$27.76

9

TEMPERAT.-SENSOR WATER LC8 02

60011252000

$36.64

22

INSERT SPARK-PLUG SHAFT 08

61236075000

$19.44

23

O-RING 29,87X1,78 VITON

0770298178

$2.54

24

WASHER 11,1X20X3 08

61236079050

$5.51

25

CYLINDER HEAD SCREW 08

61236079000

$15.79

27

RUBBERSLEEVE INTAKE FLANGE 08

61236044000

$37.11

28

hose clamp Gemi 66

61236048000

$9.53

30

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.54

31

WASHER DIN0125-A 6,4

0125060003

$1.69

32

CAP NUT M6 STAINLESS STEEL

61230045000

$2.54

33

o-ring 10.00x2.00 silicone

0770100020

$2.54

1

AH SCREW DIN7984-M 8X30 10.9

0984080305

$1.69

2

AH SCREW DIN0912-M 6X25 10.9

0912060255

$1.69

10

VACUUM CONECTION 2006

61036023100

$10.46

11

STUD M 8X16 10.9

0835080165

$3.39

16

needle roller DIN 5402 5x9.8

0402050980

$1.69

15

VALVE GUIDE INTAKE 08

61236025000

$5.78

17

CONNECTING ANGLE

61236082100

Unavailable

18

O-RING 15,00X1,50 VITON

0770150151

$3.39

19

O-RING 12,00X2,00 NBR 70

0770120020

$2.54

13

oil jet 50 M5

60030063050

$9.44

14

VALVE GUIDE EXHAUST 08

61236026000

$5.78

20

VALVE COVER REAR 08

61236152000

Unavailable

21

collar screw M 6 WS=10 03

60036052020

$3.39

29

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

36

SCREW PLUG

77336056095

$7.00

37

O-RING 9X1,5 NBR

0770090015

Unavailable

39

COLLAR SCREW M6/M4

61236052020

Unavailable

40

AH.SCREW DIN0912-M 4X10

0912040103

$2.54

41

CONNECTING ANGLE RETAIN. PLATE

61236082050

Unavailable

34

WATER CONNECTION CPL.

61235019100

$22.43

35

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

99

GASKET SET CYLINDER+HEAD F+R

61230097000

Unavailable

38

EXHAUST PIPE FLANGE GASKET

69005005000

$23.09

42

VENT SCREW M6X10 CPL.

59036006090

$4.24

43

O-RING 5,0X1,2 NBR 70

0770050012

$1.69
