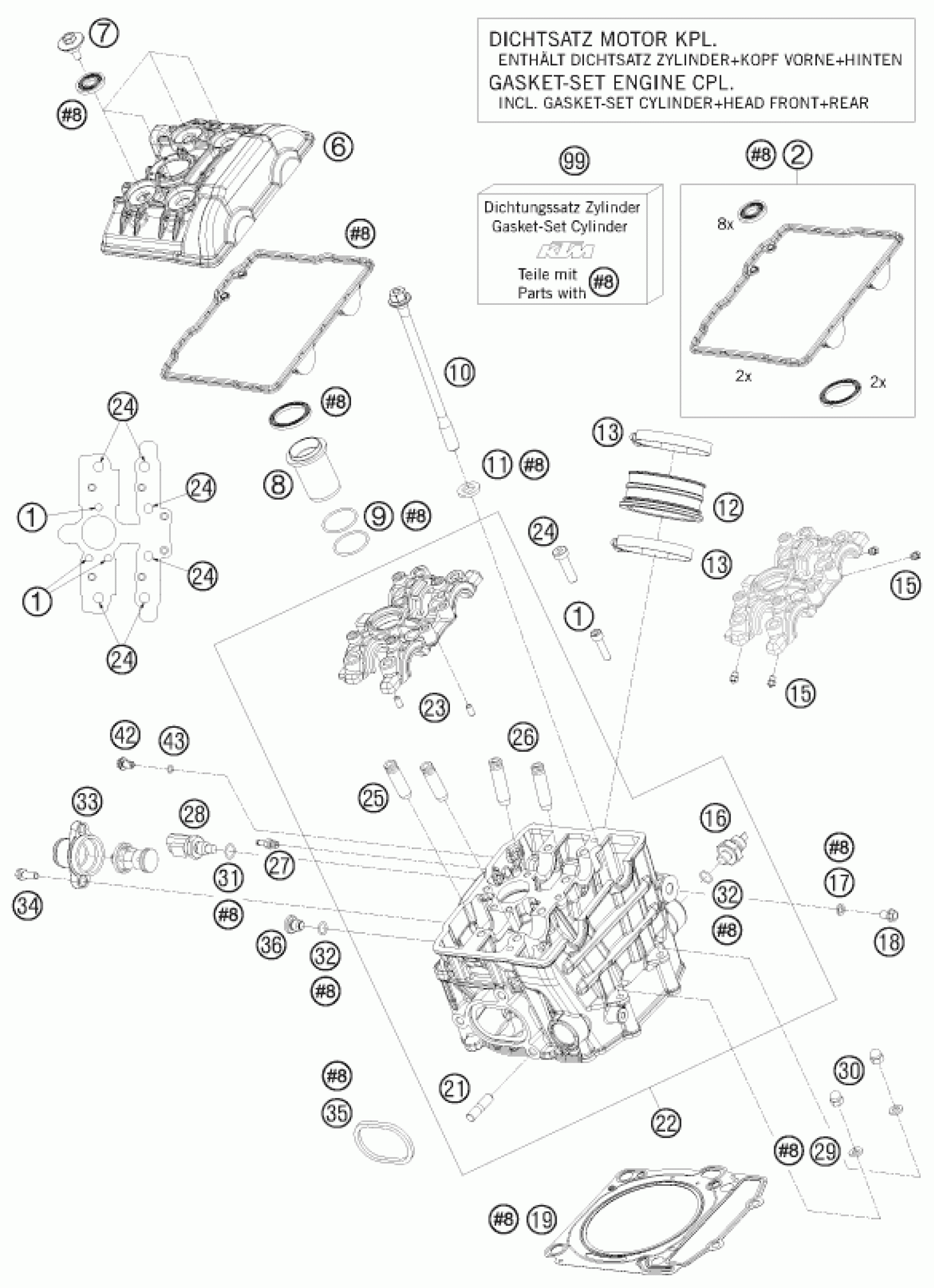

KTM 1190 RC 8 ORANGE 2008 CYLINDER HEAD FRONT Diagram

#

Description
Price

33

WATER CONNECTION CPL.

61235019100

$22.43

34

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

1

AH SCREW DIN0912-M 6X25 10.9

0912060255

$1.69

2

VALVE COVER GASKET SET

61236099100

$55.25

7

collar screw M 6 WS=10 03

60036052020

$3.39

6

VALVE COVER FRONT 08

61236052000

Unavailable

36

SCREW PLUG

77336056095

$7.00

99

GASKET SET CYLINDER+HEAD F+R

61230097000

Unavailable

8

INSERT SPARK-PLUG SHAFT 08

61236075000

$19.44

9

O-RING 29,87X1,78 VITON

0770298178

$2.54

10

CYLINDER HEAD SCREW 08

61236079000

$15.79

17

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.54

18

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

19

CYLINDER HEAD GASKET 08

61230036000

$27.76

30

CAP NUT M6 STAINLESS STEEL

61230045000

$2.54

31

o-ring 10.00x2.00 silicone

0770100020

$2.54

32

O-RING 9X1,5 NBR

0770090015

Unavailable

11

WASHER 11,1X20X3 08

61236079050

$5.51

15

oil jet 50 M5

60030063050

$9.44

16

OIL-PRESSURE SWITCH LC8 04

60038091100

$20.66

21

STUD M 8X16 10.9

0835080165

$3.39

22

CYL.HEAD RC8 FRONT 08

61236020000

Unavailable

23

needle roller DIN 5402 5x9.8

0402050980

$1.69

24

AH SCREW DIN7984-M 8X30 10.9

0984080305

$1.69

25

VALVE GUIDE EXHAUST 08

61236026000

$5.78

26

VALVE GUIDE INTAKE 08

61236025000

$5.78

27

VACUUM CONECTION 2006

61036023100

$10.46

28

TEMPERAT.-SENSOR WATER LC8 02

60011252000

$36.64

29

WASHER DIN0125-A 6,4

0125060003

$1.69

12

RUBBERSLEEVE INTAKE FLANGE 08

61236044000

$37.11

13

hose clamp Gemi 66

61236048000

$9.53

35

EXHAUST PIPE FLANGE GASKET

69005005000

$23.09

42

VENT SCREW M6X10 CPL.

59036006090

$4.24

43

O-RING 5,0X1,2 NBR 70

0770050012

$1.69
