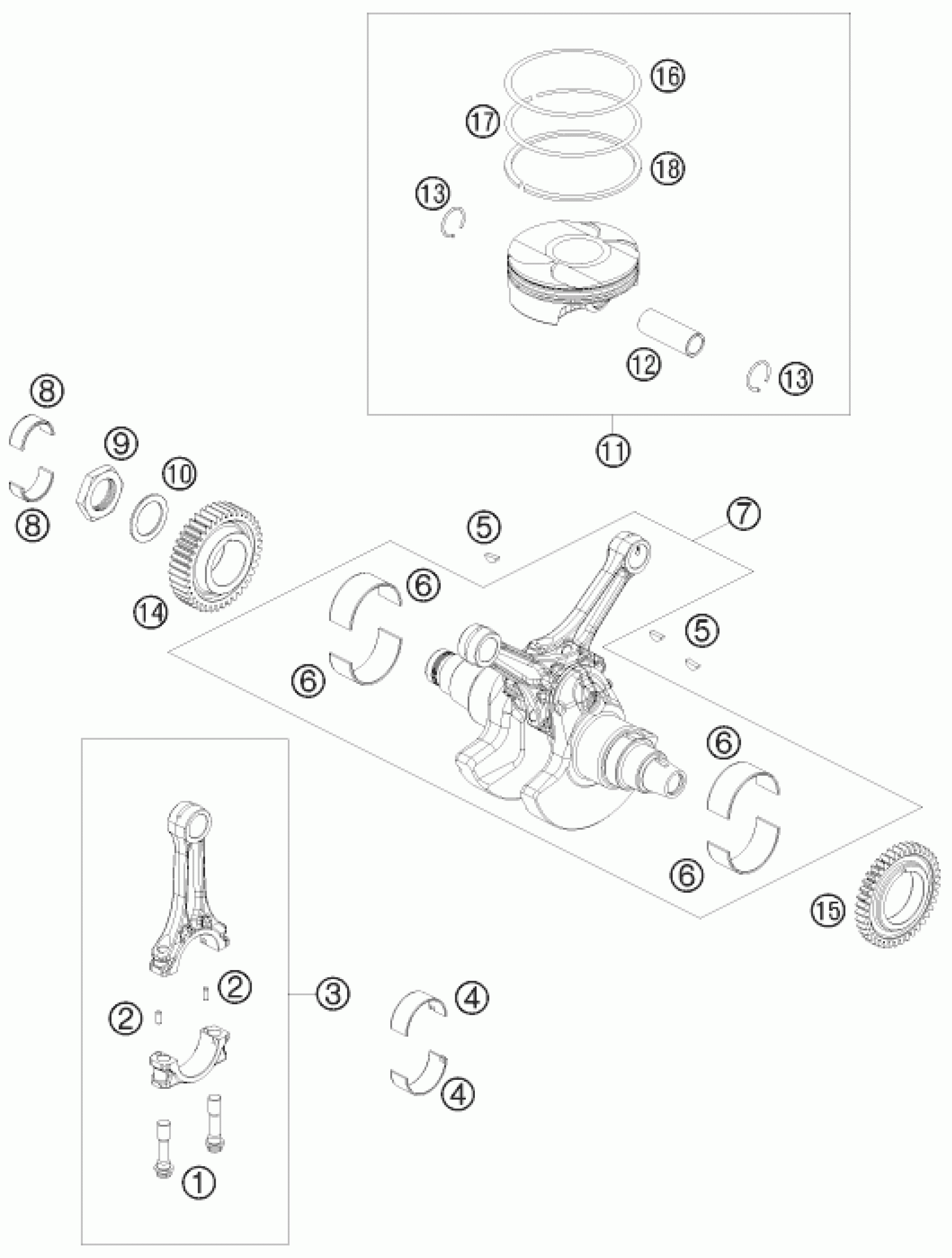

KTM 1190 RC 8 ORANGE 2008 CRANKSHAFT, PISTON Diagram

#

Description
Price

6

SPLIT BEAR. BUSH YELLOW 08

612300820003

Unavailable

1

CONNECTING-ROD SCREW MJ10X108

61230015000

Unavailable

2

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.39

7

CRANKSHAFT CPL.

61230018200

Unavailable

8

BUSHING BOWL 28X32X13 03

60030026010

$14.02

14

PRIMARY GEAR

61230055000

$98.26

12

PISTON PIN D=20 08

61230033000

$47.58

13

CIRCLIP

77630074000

$10.56

9

HH-NUT M33X1,5 L/S WS46 03

60032009050

$15.89

10

WASHER 33,2X46X2 03

60032009040

Unavailable

3

CONNECTING-ROD 08

61230013000

Unavailable

4

SPLIT BEAR. BUSH RED 08

612300150101

Unavailable

4

SPLIT BEAR. BUSH BLUE 08

612300150102

Unavailable

4

SPLIT BEAR. BUSH YELLOW 08

612300150103

Unavailable

5

woodruff key DIN 6888 4x5x13

0888040050

$4.24

6

SPLIT BEAR. BUSH RED 08

612300820001

Unavailable

6

SPLIT BEAR. BUSH BLUE 08

612300820002

Unavailable

11

PISTON SIZE 1

61230007300 I

Unavailable

11

PISTON SIZE 2

61230007300 II

Unavailable

15

DRIVE WHEEL BALANCER SHAFT 08

61230056000

$67.87

16

L-RING

61230030000

Unavailable

17

PISTON RING MN

61230031000

Unavailable

18

PISTON RING GFSOE

61230032000

Unavailable
