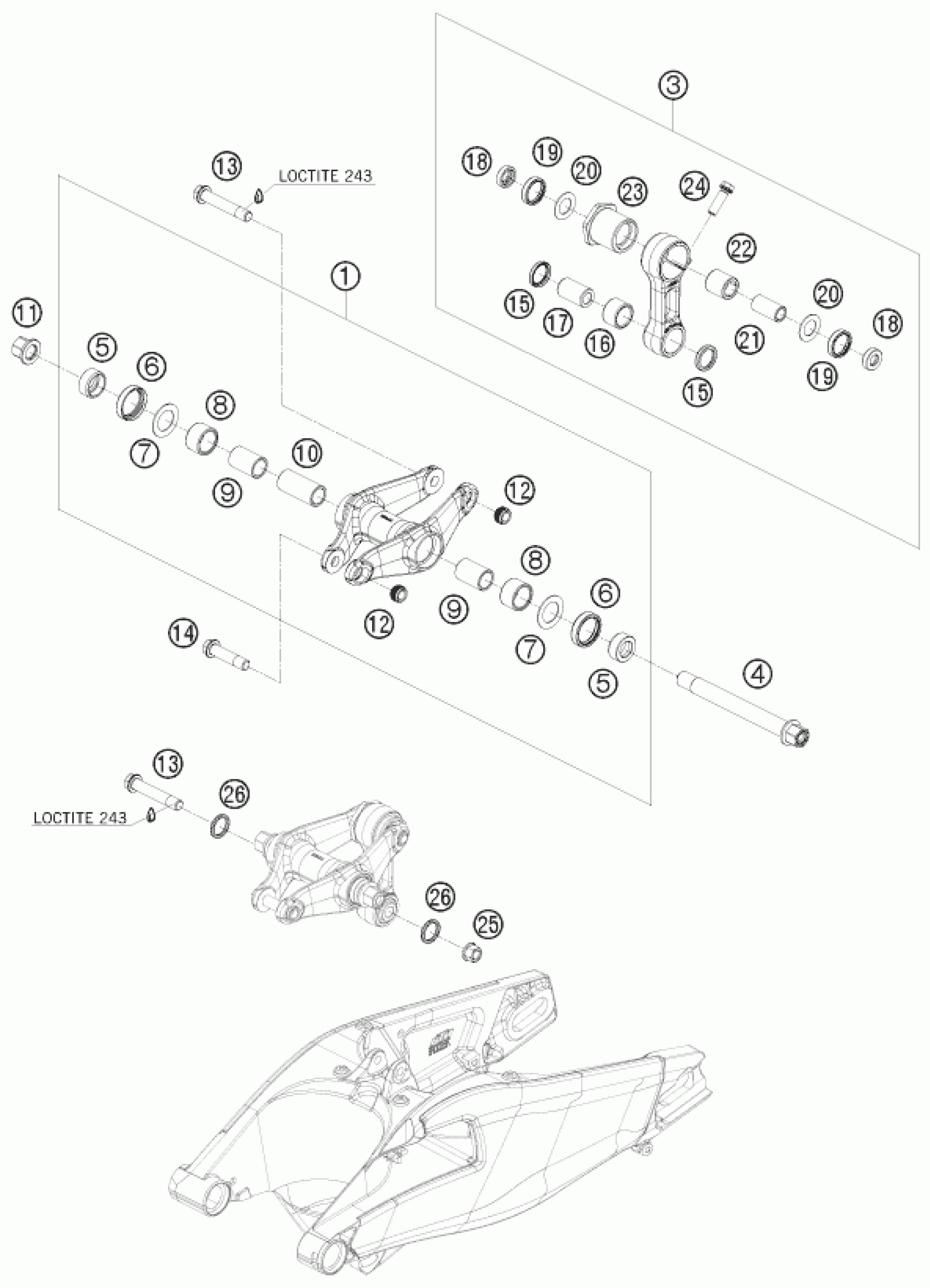

KTM 1190 RC 8 BLACK RRS 2009 PRO LEVER LINKING Diagram

#

Description
Price

1

SWING ARM DEFLECTION CPL.8 08

6900408004401S

$310.25

3

CONNECTING ROD CPL.

6900408304401S

$292.46

4

BEARING BOLT SWING LEVER CPL.

69004081044

$56.81

5

SPAC.F.SHAFT SEALRING 15X25X11

58303090000

$7.75

6

radial shaft seal 25x32x7

0760253270

$6.63

7

Shim 20x31.9x1

59033080000

$2.05

8

Needle bushing HK 2016 / 20x26

54603097000

$15.04

9

BEARING BUSHING

50203081800

$7.75

10

DIST. BUSHING SWING LEVER 08

69004087000

$8.41

11

FLANGE NUT M14X1,5 WS17

69004082000

$6.54

12

ADAPTOR NUT M10

69004095000

$5.23

13

HH COLLAR SCREW M10X56 WS13 08

69004094000

$5.23

14

HH COLLAR SCREW M10X42 WS13 08

69004089000

$5.23

15

SHAFT SEAL RING 18X24X4

0760182442

$5.79

16

NEEDLE BEARING HK 1816

56503195100

$13.92

17

BEAR. BUSH. CONN. ROD BELOW 08

69004085000

$14.02

18

BUCKET F. SHAFT SEAL RING 08

69004093000

$6.44

19

SHAFT SEAL RING 20X26X4 NBR

0760202640

$5.41

20

STOP DISC 15,1X25,9X1MM 08

69004092000

$4.35

21

BEAR. BUSH. CONN. ROD ABOVE 08

69004088000

$13.83

22

NEEDLE SLEEVE HK1522

0618152200

$14.39

23

ECCENTRIC PUSHROD 08

69004084000

$49.04

24

HH collar screw M8x25

0025080256

$2.05

25

COLLAR NUT M10 WS=13

54630044000

$1.49

26

QUAD-RING 17,12X2,62X2,62 NBR

69004096000

$2.05
