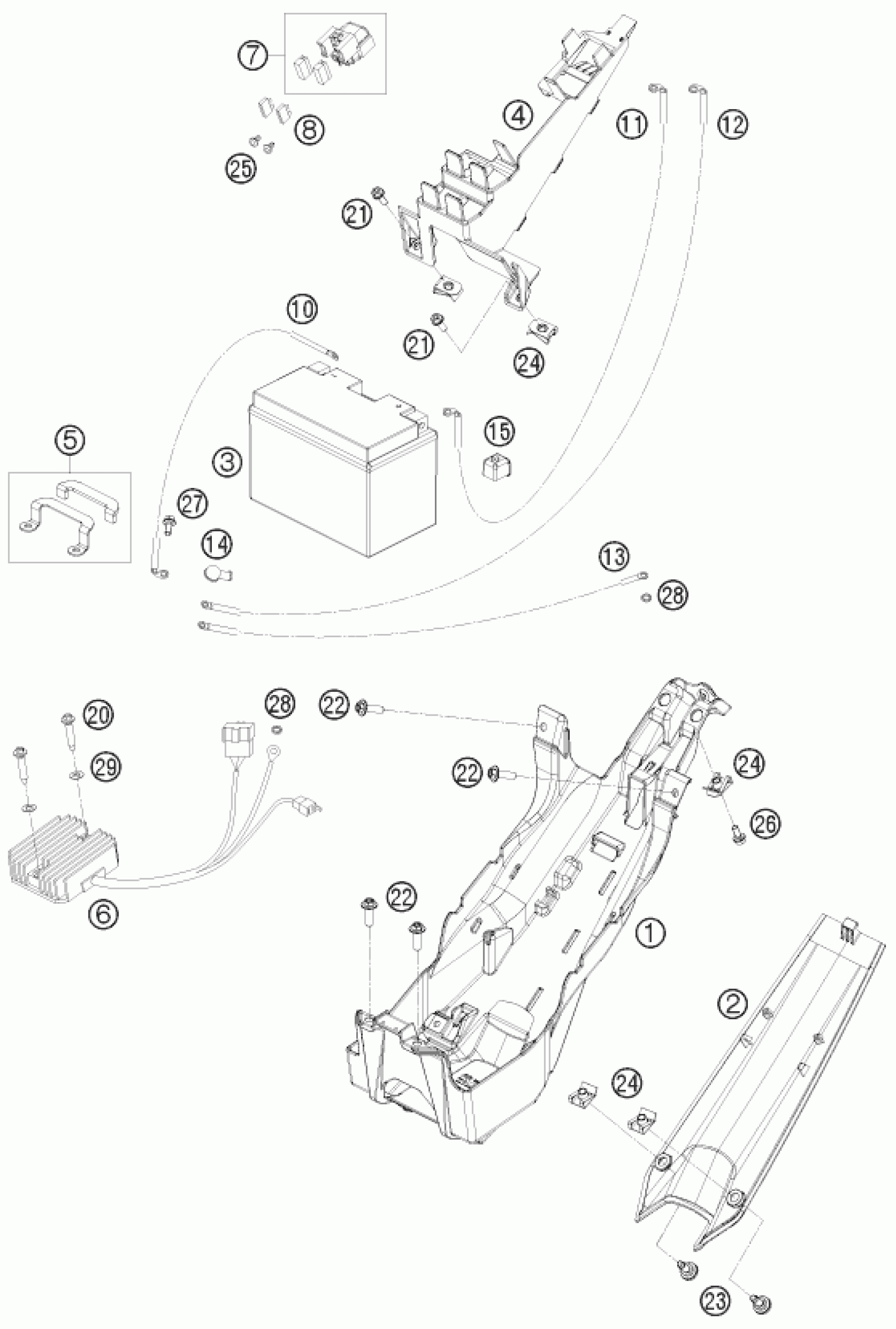

KTM 1190 RC 8 BLACK RRS 2009 BATTERY Diagram

#

Description
Price

1

TAIL END LOWER PART RC8

69008019000

Unavailable

2

LOWER REAR END PANEL

6900803200033

Unavailable

3

BATTERY 12V/11AH 03

60011053000

Unavailable

4

BRACKET FOR PLUGS

69011048000

Unavailable

5

BATTERY RETAINING PLATE CPL.

69011055044

Unavailable

6

VOLTAGE REGULATOR

60011034100

Unavailable

7

Starter reley 12V 99

58211058000

Unavailable

8

Plug-in fuse, big 30A

58011109130

Unavailable

10

GROUND CABLE

69011097000

Unavailable

11

BATTERY CABLE

69011059050

Unavailable

12

STARTER CABLE

69011059000

Unavailable

13

GROUND CABLE STARTER TO FRAME

69011096000

Unavailable

14

Rubber grommet, starter port 0

60040009000

Unavailable

15

COVER F. POSITIVE POLE RC8 08

69011059060

Unavailable

20

SPECIAL SCREW T60 6X30 WS=6

0017060303

Unavailable

21

SCREW TORX M5X10 05

58605083010

Unavailable

22

HH collar screw M6x20 TX30

0024060206

Unavailable

23

special screw M5x17

69008021060

Unavailable

24

clip nut M5

69008021080

Unavailable

25

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

26

HH collar screw M5x12 TX30

0025050126

Unavailable

27

HH collar screw M6x12 TX30

0025060126

Unavailable

28

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

29

PLASTIC WASHER 03

60007020040

Unavailable
