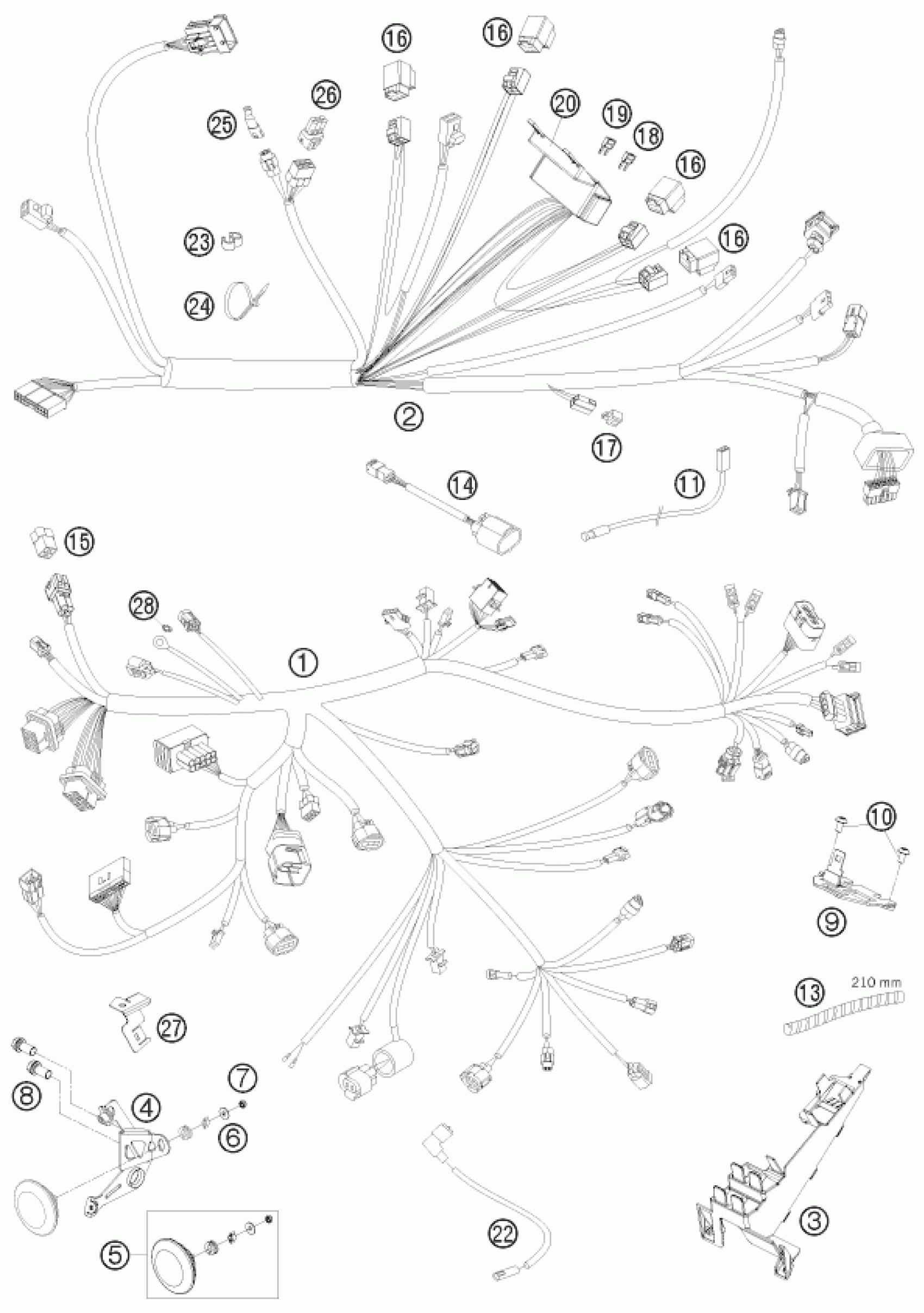

KTM 1190 RC 8 2009 WIRING HARNESS Diagram

WIRING HARNESS FRAME REARPART

69011077000

$274.25

MAIN WIRING HARNESS

69011075100

$1,100.70

BRACKET FOR PLUGS

69011048000

$6.35

HORN BRACKET RC8 CPL.

69011060010

$78.25

HORN CPL.

69011060000

$28.70

washer DIN 9021 A - 5.3

0021050003

$1.49

Self locking nut DIN 985 M5

0985050003

$2.05

HH collar screw M8x16 TX40 SL

0025080166S

$3.08

PLUG BORD STEERING HEAD

69011049000

$38.61

SCREW TORX M5X10 05

58605083010

$2.05

TEMPERATURE SENSOR 07

61111018000

$31.59

SPIRAL HOSE D=9MM PER METER

58513001000

Unavailable

STARTER INTERLOCK

61111020000

$97.89

SPARE CONNECTOR AN 4-PINS

000700000AN

$13.83

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

DIODE S3H-15 97

58411096100

$9.81

FUSE 15A 07

75011088015

Unavailable

FUSE 10A 07

75011088010

Unavailable

RUBBER CASING FOR FUSE BOX

75011087050

$11.59

OIL-PRESSURE SWITCH CABLE 03

60011092000

$4.11

CLIP 5/7 MM 06

60111094000

$3.08

Cable tie w. socket D=6.5

69011092000

$1.49

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

Cable tie 200/4.6mm black

44011076200

Unavailable

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

END PLUG CAN-BUS 08

69011040000

$20.00

SPARE CONNECTOR BH 6-PINS

000700000BH

$22.15

BRACKET F. PLUG RC8 08

69011078050

$13.64

CONTACT WASHER M6 VSV-K6

58411098100

$2.05
