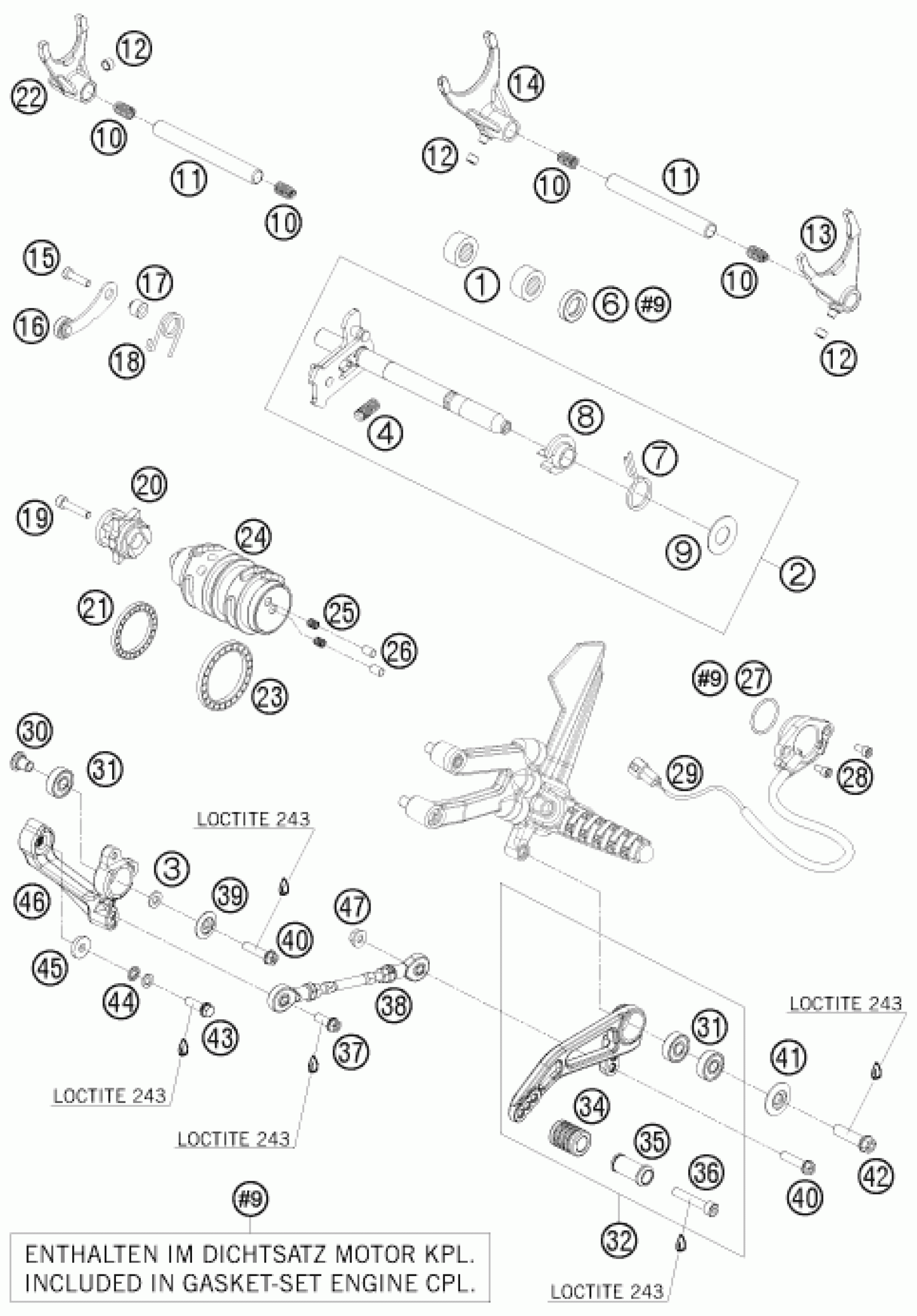

KTM 1190 RC 8 2009 SHIFTING MECHANISM Diagram

#

Description
Price

1

needle sleeve HK 1412 14x20x12

54632095000

$7.00

2

SHIFT SHAFT CPL.

61234005144

$85.09

4

TENSIONING SPRING 0,8MM

56534013100

$1.49

6

radial shaft seal 14x24x6 B

0760142460

$9.25

7

RETURNSPRING 2MM

61234014000

$6.44

8

SPRING GUIDE

54634020000

$6.44

9

STOP DISK 14X30X1

54634050000

$2.05

10

PRESSURE SPRING 0,9MM

58038023200

$4.11

11

SHIFT RAIL 11,8X105MM

59034020000

$13.36

12

SHIFTING ROLLER 6X8X5,2

50334018100

$4.11

13

SHIFTING FORK 08

61234002000

$51.60

14

SHIFTING FORK 08

61234001000

$48.89

15

HH collar screw M6x20 TX30

0024060206

$3.08

16

LOCKING LEVER CPL. 07

75034024044

$19.16

17

SLEEVE FOR LOCKING LEVER 07

75034052000

$4.11

18

SPRING - LOCKING LEVER

61234023000

$6.07

19

AH SCREW DIN0912-M 6X30

0912060303

$2.05

20

SHIFT DRUM LOCATING CPL.

61234015144

$25.42

21

BALL BEARING 6805 C3 JR

0625618052

$43.94

22

SHIFTING FORK 08

61234003000

$52.73

23

GROOVED BALL BEARING 6808 JRC3

0625068080

$32.16

24

SHIFT ROLLER CPL. 09

61234012100

$183.44

25

CONTACT SPRING 03

60034014000

$1.49

26

CONTACT BOLT 03

60034037000

$4.11

27

O-RING 27,5X2,5 NBR

0770275025

$1.49

28

AH SCREW DIN0912-M 5X12

0912050123

$2.05

29

GEAR-POSITION SENSOR 06

60011023100

$46.74

30

COLLAR BUSHING

69034040100

$12.43

31

Grooved ball bearing 608 2RS C

0625006087

$21.40

32

SHIFTING LEVER CPL. 09

6903403114401S

$115.29

34

RUBBER FOR SHIFT LEVER 05

61034035000

$6.91

35

GEAR LEVER

69034032100

$12.43

36

AH SCREW DIN0912-M 6X45

0912060453

$2.05

37

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

38

SHIFT ROD CPL.

69034036044

$68.81

39

SPECIAL WASHER 6,4X21,4X2,6

69034041000

$6.07

40

HH collar screw M6x25 TX30

0025060256

$3.08

41

SPECIAL WASHER D=26X3 ALU ELO.

6900303801001

$6.72

42

HH COLLAR SCREW M8X30 TX40

0025080306S

$3.08

43

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

44

Pair of washers M6 NORDLOCK

50233041000

$4.11

45

STEEL WASHER 6,4X17X3

50232050001

$5.23

46

RELAY LEVER SHIFT. SHAFT 08

6903403000001S

Unavailable

47

Self locking nut M6 - 10

56509064100

$2.05

3

WASHER 6X12X1 HRC 40-45

0988060121

$1.49
