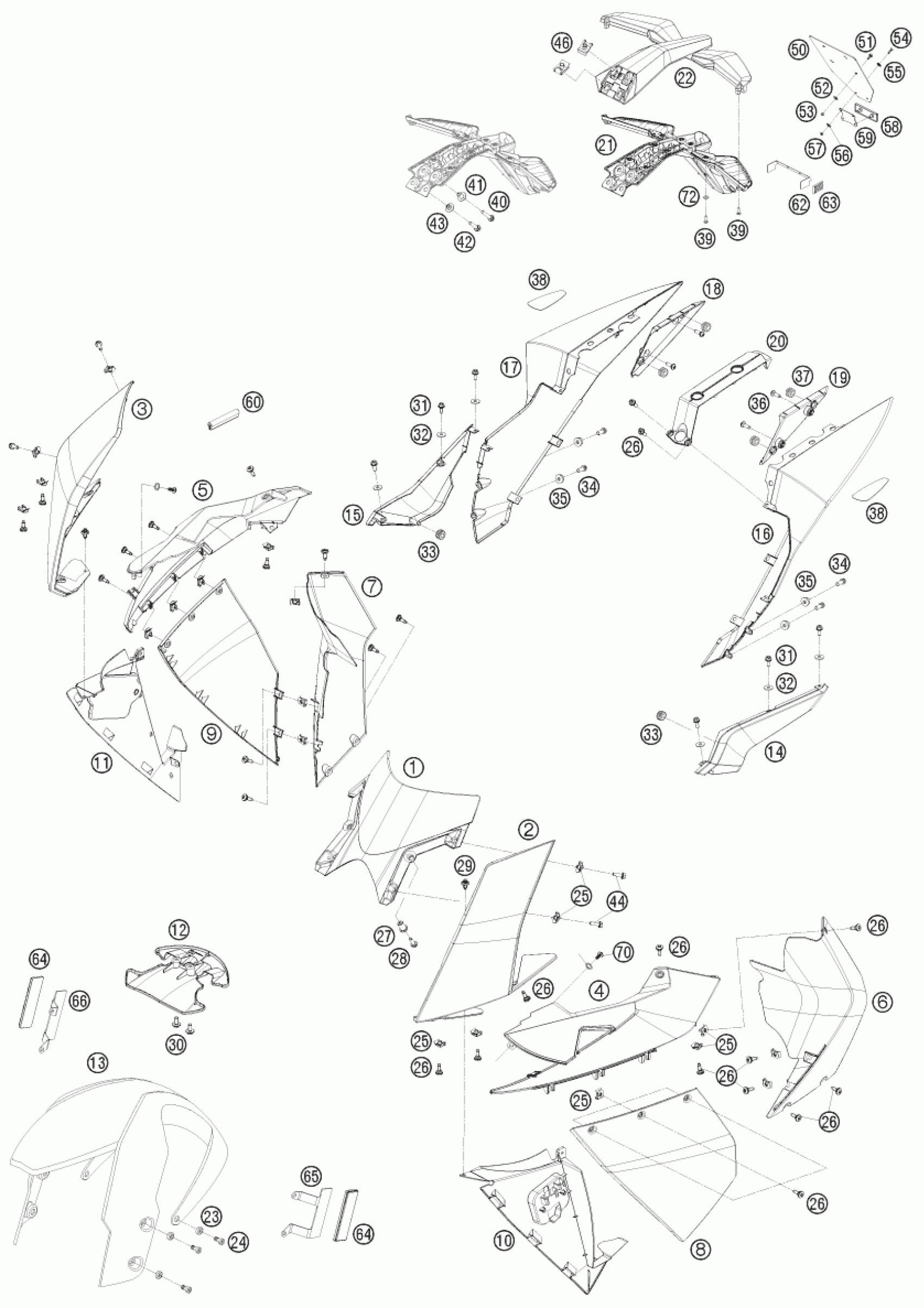

KTM 1190 RC 8 2009 MASK, FENDERS Diagram

#

Description
Price

1

FAIRING SCREEN HIGH 08

69008008000

Unavailable

2

FR.FAIR.UP.PART L/S ORBR RC8

6900800100077A

Unavailable

3

FR.FAIR.UP.PART R/S OR.BRRC8

6900800200077A

Unavailable

4

FR.FAIR.LO.PART L/S OR.MA. RC8

6900800300075A

Unavailable

5

FR.FAIR.LO.PART R/S OR.MA. RC8

6900800400075A

Unavailable

6

EXIT-AIR SHAFT L/S BL.MATT RC8

6900805200033A

Unavailable

7

EXIT-AIR SHAFT R/S BL.MATT RC8

6900805300033A

Unavailable

8

COOLER FAIRING L/S OR. BR. RC8

6900805000077A

Unavailable

9

COOLER FAIRING R/S OR. BR. RC8

6900805100077A

Unavailable

10

FRESH-AIR SHAFT L/S BL. MA.08

6900802200033

Unavailable

11

FRESH-AIR SHAFT R/SBL. MA.08

6900802300033

Unavailable

12

UP. FRESH-AIR SHAFT BL. MA. 08

6900802100033

Unavailable

13

FRONT FENDER OR. MATT 08

6110801000075A

Unavailable

14

SIDE COVER L/S BL. BR. RC8

6900804300030A

Unavailable

15

SIDE COVER R/S BL. GL. RC8

6900804400030A

Unavailable

16

REAR FAIRING L/S BL. BR. RC8

6900804100030A

Unavailable

17

REAR FAIRING R/S BL. BR. RC8

6900804200030A

Unavailable

18

REAR LIGHT ADAPTER R/S

69008039000

$7.47

19

REAR LIGHT ADAPTER L/S

69008038000

$7.47

20

UPPER REAR END PANEL

6900803100033

$15.98

21

LICENSE PLATE BRACKET LO.PART

69008016000

Unavailable

22

LICENSE PLATE BRACKET UP.PART

69008015000

Unavailable

23

SPECIAL WASHER

61108045000

$4.24

24

Cap head bold ISO 14580 M6x16

014580060166

$2.54

25

clip nut M5

69008021080

Unavailable

26

special screw M5x17

69008021060

Unavailable

27

blind plug nut M5 WN16A

60008008050

$4.24

28

HH collar screw M5x16 TX30

0025050166

$2.54

29

Spread rivet cmpl. 6.2mm

76503075000

$3.39

72

WASHER DIN9021-A 4,3

0021040003

$1.69

60

EDGE PROTECTOR 14X9,5X66 MM 06

60114010070

$3.39

70

EJOT PT SCREW K60X12 1451

0081060121

$2.54

71

WASHER PA 8,3X12X5

69008003050

$3.39

30

HH collar screw M6x13 TX30

0024060136

$3.39

31

SCREW TORX M5X10 05

58605083010

$2.54

32

Washer tail section UT D=14mm

75008023000

$3.39

33

rubber grommet D=8mm open

31008060000

$2.54

34

HH collar screw M8x20

0025080206

$2.05

35

WASHER MOUNT. REAR FAIRING

6900300405001

Unavailable

36

EJOT PT SCREW K50X16 1451

0081050161

$1.69

37

RUBBER SLEEVE 10X14X20 08

69014078000

$2.54

38

PASSENGER´S SEAT PLATE KIT

69007047050

$15.79

39

SCREW FOR PLASTIC K40X16 T20

0081040161

$1.69

40

HH collar screw M6x25 TX30

0025060256

$3.39

41

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

$5.23

42

HH collar screw M6x20 TX30

0025060206

$3.39

43

BUSHING LICENSE PLATE BRACKET

69008020000

$4.24

44

HH collar screw M5x20 TX30

0025050206

$2.54

46

clip nut M6

54603048100

$4.24

50

license plate mouning plate

60012081200

Unavailable

51

HH collar screw M6x15 TX30

0024060156

$3.39

52

Washer DIN9021-A 6.4

0021060003

$2.54

53

Self lock. nut DIN985-M6-A2

0985060003

$2.54

54

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.69

55

WASHER 6MM

40006006000

$1.69

56

WASHER DIN0125-A 5,3

0125050003

$1.69

57

Self locking nut DIN 985 M5

0985050003

$2.54

58

REFLECTOR RED

58412080000

Unavailable

59

BRACKET FOR REFLECTOR

58412080050

$6.07

62

BRACKET SIDE REFLECTOR 06

62512081000

$27.95

63

SIDE REFLECTOR RED REAR

16512180100

$7.10

64

SIDE REFLECTOR YELLOW 03

60012080000

Unavailable

65

BRACKET F. SIDE REFLECTOR L/S

69012080050

$12.43

66

BRACKET F. SIDE REFLECTOR R/S

69012080060

$12.43
