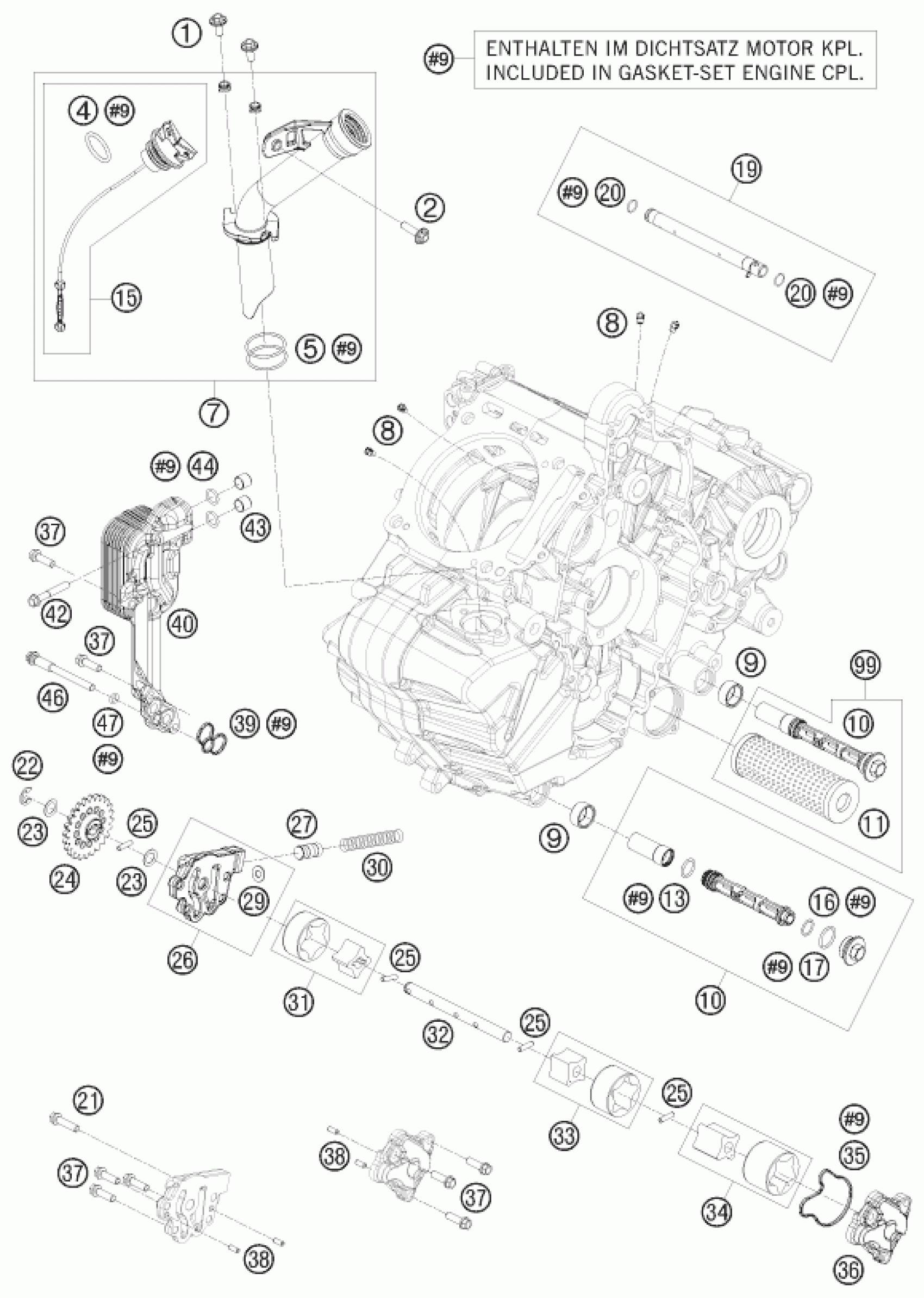

KTM 1190 RC 8 2009 LUBRICATING SYSTEM Diagram

#

Description
Price

1

HH collar screw M6x15 TX30

0024060156

$3.39

2

HH collar screw M6x20 TX30

0024060206

$3.39

4

O-RING 25,00X3,00 NBR 70

0770250030

$3.39

5

O-RING 30X2,0 FPM

0770300020

$3.39

7

OILFILLTUBE CPL.

61238085200

$75.17

8

oil jet 70 M5

60030063070

$8.59

9

OIL SCREEN BUSHING 08

61238017000

$6.91

10

oil screen cpl.

61238021100

Unavailable

11

OIL FILTER 03

60038015000

Unavailable

13

O-RING 14,00X2,00

0770140200

$2.54

16

O-RING 12,5X1,5 NBR

0770125015

$2.54

17

O-RING 17,00X2,00

0770170200

$2.54

19

OIL INJECTION TUBE CPL. 08

61230065000

$26.45

20

o-ring 10.00x1.00 NBR70

0770010010

$2.54

21

HH collar screw M6x25 TX30

0025060256

$3.39

22

retaining washer DIN 6799 - 8

0799080000

$1.69

23

washer 10x16x0.5

60038007010

$2.54

24

OIL PUMP GEAR 24-T

60038001124

Unavailable

25

needle roller NRB 4x15.8 G2

0402041580

$2.54

26

PRESSURE PUMP COVER CPL.

61238009144

$30.10

27

CONTROL PISTON LC8 03

60038028000

Unavailable

29

shim

50337073000

$2.54

30

CONTROL SPRING

61238026000

Unavailable

31

ROTOR-SET 19MM 03

60038009000

$52.91

32

OIL PUMP SHAFT 08

61238002000

$19.91

33

ROTOR-SET 22MM 08

61238011000

Unavailable

34

ROTOR-SET 30MM 08

61238010000

Unavailable

35

MOLDED RING SUCTION PUMP COVER

61238008150

$20.09

36

SUCTION PUMP COVER

61238008200

$23.65

37

HH collar screw M6x20 TX30

0025060206

$3.39

38

needle roller DIN 5402 5x9.8

0402050980

$1.69

39

MOLDED RING

61238051000

$5.23

40

OIL COOLER CPL.

6123805000033

Unavailable

42

HH collar screw M6x50 TX30

0025060506

$3.39

43

BUSHING

61238052000

$5.23

44

O-RING 12X2 VITON GREEN

0770012021

$2.54

46

REGULATING SCREW

61238055000

Unavailable

47

O-RING 6,00X2,00 NBR 70

0770060020

$2.54

15

OIL DIPSTICK CPL. W. O-RING

61238085244

Unavailable

99

OILFILTER SERVICE KIT

00050000068

Unavailable
