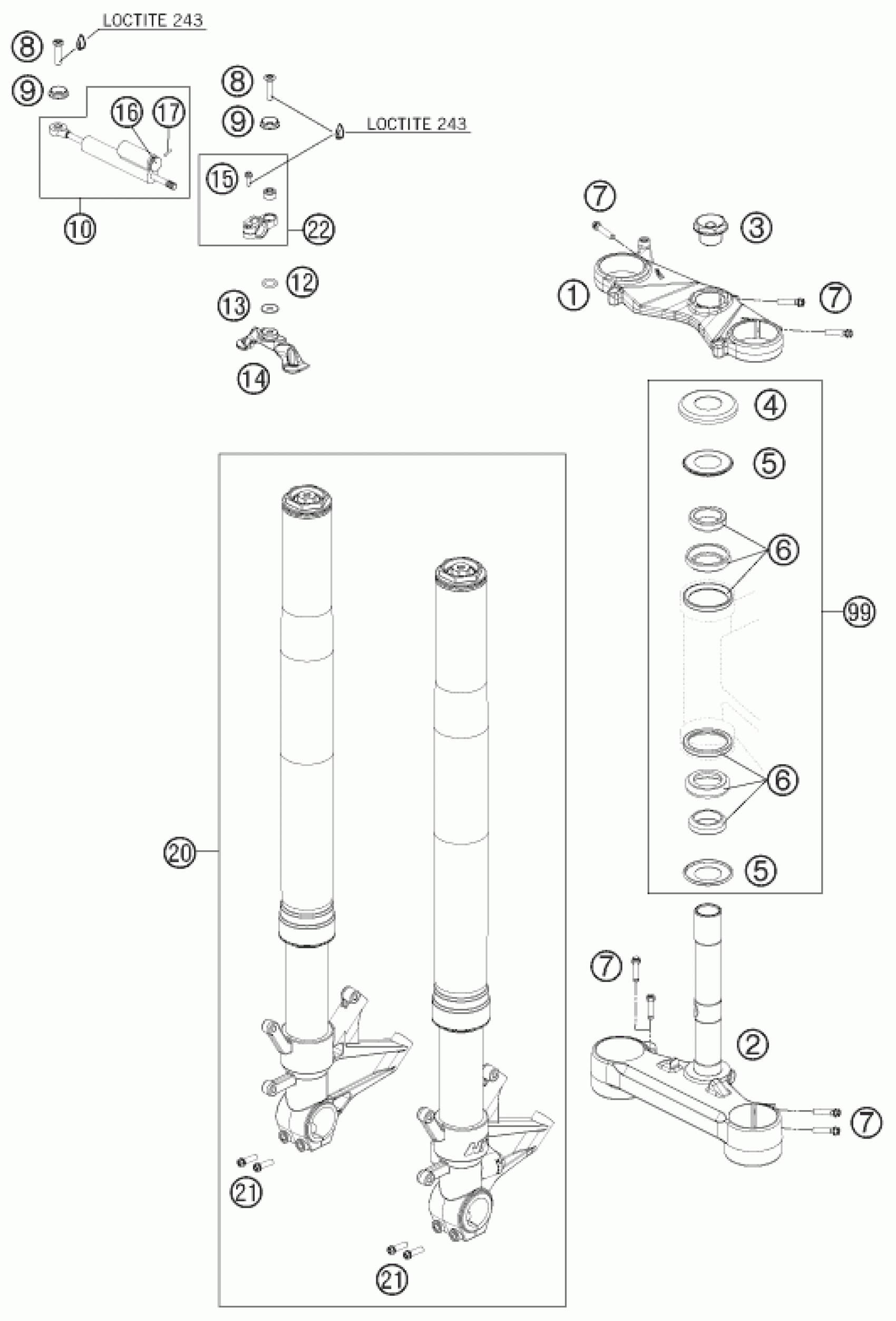

KTM 1190 RC 8 2009 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

TOP TRIPLE CLAMP RC8 210/34 09

6900103403401S

Unavailable

2

BOTTOM TRIPLE CLAMP CPL. 09

6900103203401S

Unavailable

3

STEERING HEAD SCREW 09

6900103600001

Unavailable

4

PROT. RING STEER. HEAD BEARING

69001086100

$5.23

5

O-RING SUPPORT W. SEALING LIP

69001084000

$7.85

6

STEERINGHEAD BEARING CPL.

69001081000

Unavailable

7

HH collar screw M8x35 TX40

0025080356

$4.11

8

COUNTERSUNK SCREW ISA45 M8X35

0019080356

$3.39

10

STEERING DAMPER WITHOUT CLAMP

16181D0103

Unavailable

12

O-RING 12X2,5 NBR 70

0770120025

$1.69

13

WASHER F. STEERING DAMPER RC8

69012060060

$5.23

14

STEERING DAMPER SUPPORT 09

6901200600092

$44.87

20

FORK KTM RC8 2009

05187E0701

Unavailable

21

HH collar screw M8x30

0025080306

$3.08

15

HH collar screw M5x16 TX30

0025050166

$2.54

22

CLAMP CPL. + SCREW 08

15080120S

Unavailable

16

ADJUSTING GEAR

15080122

Unavailable

17

ADJUSTING SCREW M3X12

15080106

Unavailable

9

SPECIAL WASHER ALU 8X22MM

69012005050

$7.28

99

STEARING HEAD REP. KIT RC8

69001081044

Unavailable
