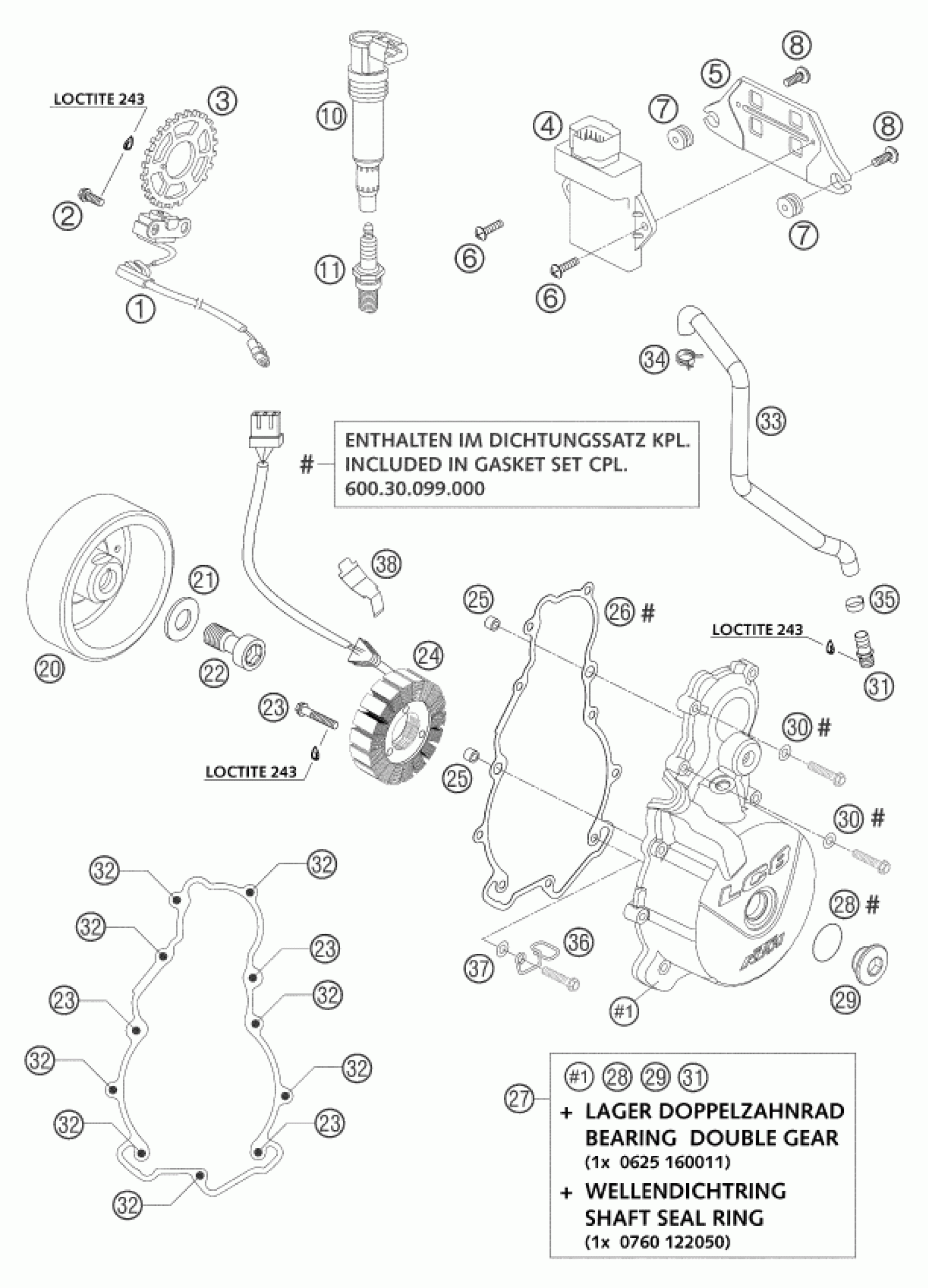

KTM 1190 RC 8 2007 IGNITION SYSTEM Diagram

#

Description
Price

1

PULSE GENERATOR LC8 04

60039034100

Unavailable

2

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

3

TRIGGER WHEEL 03

60039020100

Unavailable

4

DIGITALBOX LC8 03

60039031000

Unavailable

5

ADAPTER PLATE DIGITALBOX 03

60039028000

Unavailable

6

SCREW FOR PLASTIC D=5X18

0081500181

Unavailable

7

VIBRATION DAMPER DIGITALBOX 03

60039030000

Unavailable

8

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

10

STICK COIL 03

60039006000

Unavailable

11

SPARK PLUG CR8EK

59039093000

Unavailable

20

IGNITION ROTOR 04

60039005100

Unavailable

21

WASHER 17X32X4 03

60039040010

Unavailable

22

AH EXPAND. SCREW M16X35 8.8

60039003000

Unavailable

23

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

24

STATOR 03

60039004000

Unavailable

25

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

26

IGNIT.COVER GASK.MATRI.CS0,5MM

60030040100

Unavailable

27

IGNITION COVER CPL. 03

60030002044

Unavailable

28

O-RING 24X2,5 NBR

0770024025

Unavailable

29

SCREW PLUG M24X1,5 PA 6.6

60030094000

Unavailable

30

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

31

VENTILATION CONNECTOR M16X1,5

60030022000

Unavailable

32

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

33

ENGINE BREATHING HOSE

60030087000

Unavailable

34

CLAMP STD DN22

00049220121

Unavailable

35

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

Unavailable

36

CABLE SUPPORT 03

60011094000

Unavailable

37

WASHER DIN0125-A 6,4

0125060003

Unavailable

38

generator line bracket

60039040020

Unavailable
