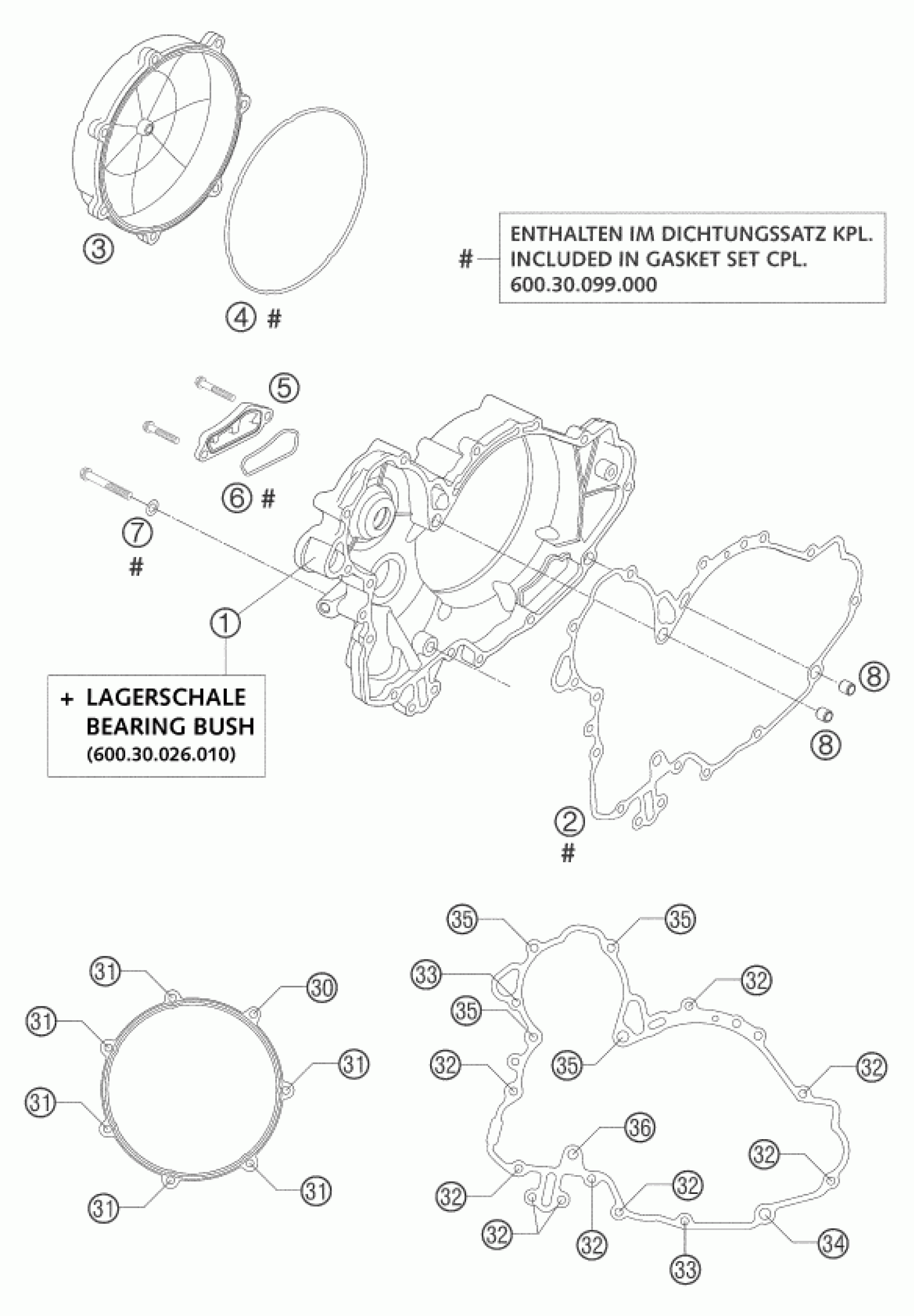

KTM 1190 RC 8 2007 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER LC8 CPL. 03

60030001044

$174.57

2

CLUT.COV. GASK. INSIDE KLI.SIL

60030025000

$24.49

3

CLUTCH COVER OUTSIDE 27,6MM

60030026000

$108.73

4

GASKET RING CLUTCH 2X3,1 VAMAC

60030027000

$14.02

5

CLOS. COVER OIL SCR. MILLED 03

60030012100

$20.21

6

MOLDED RING 1,8X2,5 VAMAC 03

60030012050

$9.72

7

COPPER Gask.DIN7603- 8.2X13X1

0603082131

$2.05

8

DOWEL 9,8 X 7 X 10

49030090000

$2.05

30

HH COLLAR SCREW M 6X85 WS=8

0015060853

$3.08

31

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

32

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

33

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

34

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

35

HH COLLAR SCREW M 6X60 WS=8

0015060603

$3.08

36

HH COLLAR SCREW M 8X60 WS=10

0015080603

$3.08
