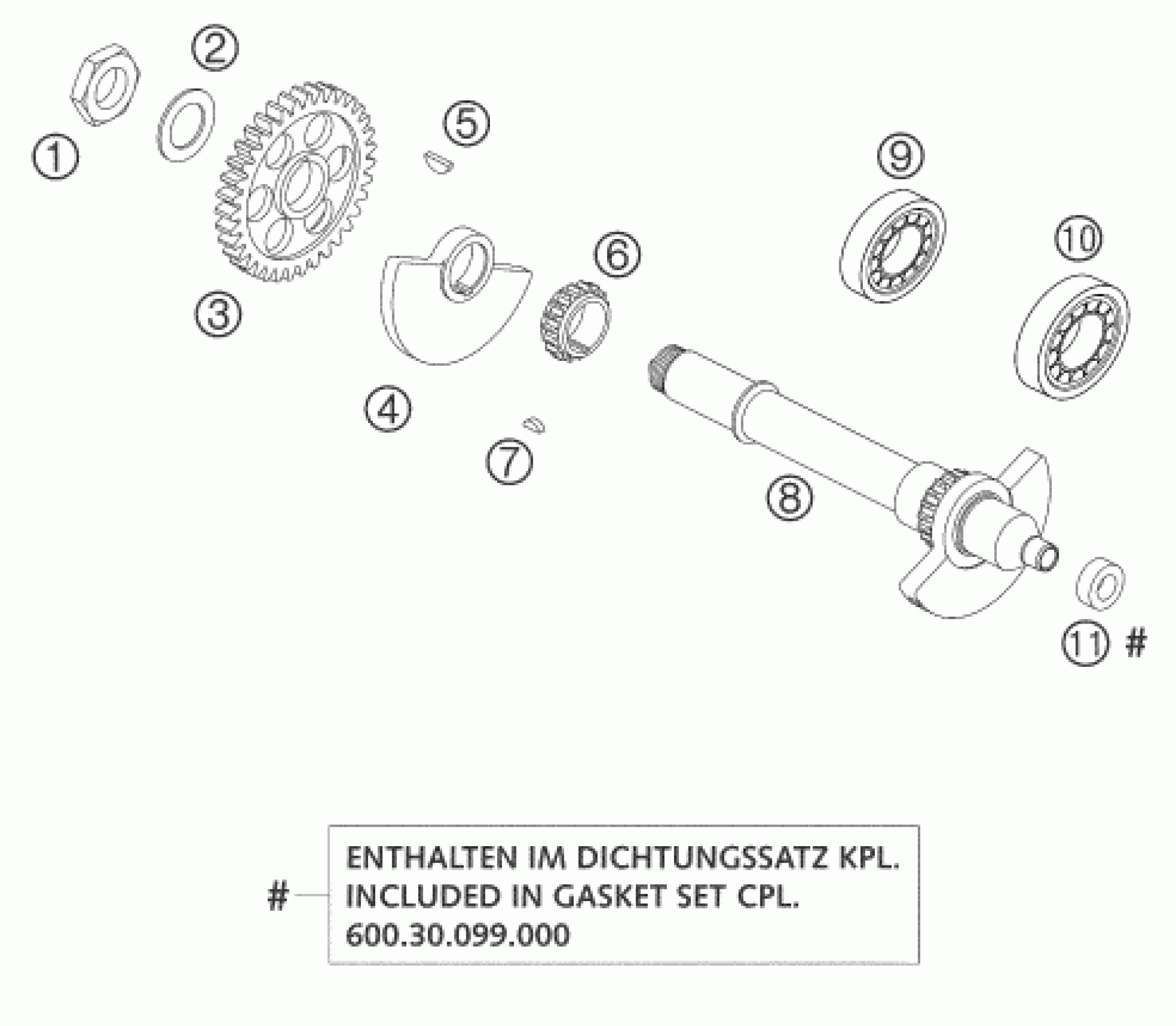

KTM 1190 RC 8 2007 BALANCER SHAFT Diagram

#

Description

Price

1

HEXAGON NUT M20X1,5 7MM

60036073050

$6.91

2

STOP DISK 20,2X33X1,5

54633015000

$4.11

3

TIMING GEAR 35-T BS-DRIVE 03

60036080035

$84.66

4

BALANCE WEIGHT 03

60036074050

$58.45

5

woodruff key DIN 6888 4x5x13

0888040050

$4.11

6

TIMING GEAR 18-T 03

60036014018

$51.23

7

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

8

TIMING VALVE JACKSHAFT CPL. 03

60036073000

$184.48

9

CYL.ROLL BEAR. NUP 204/22 C3

60030024000

$85.92

10

BALL BEARING 60/28 C4 JR2

0625602800

$24.13

11

SHAFT SEAL RING 12X20X5 B

0760122050

$8.03
