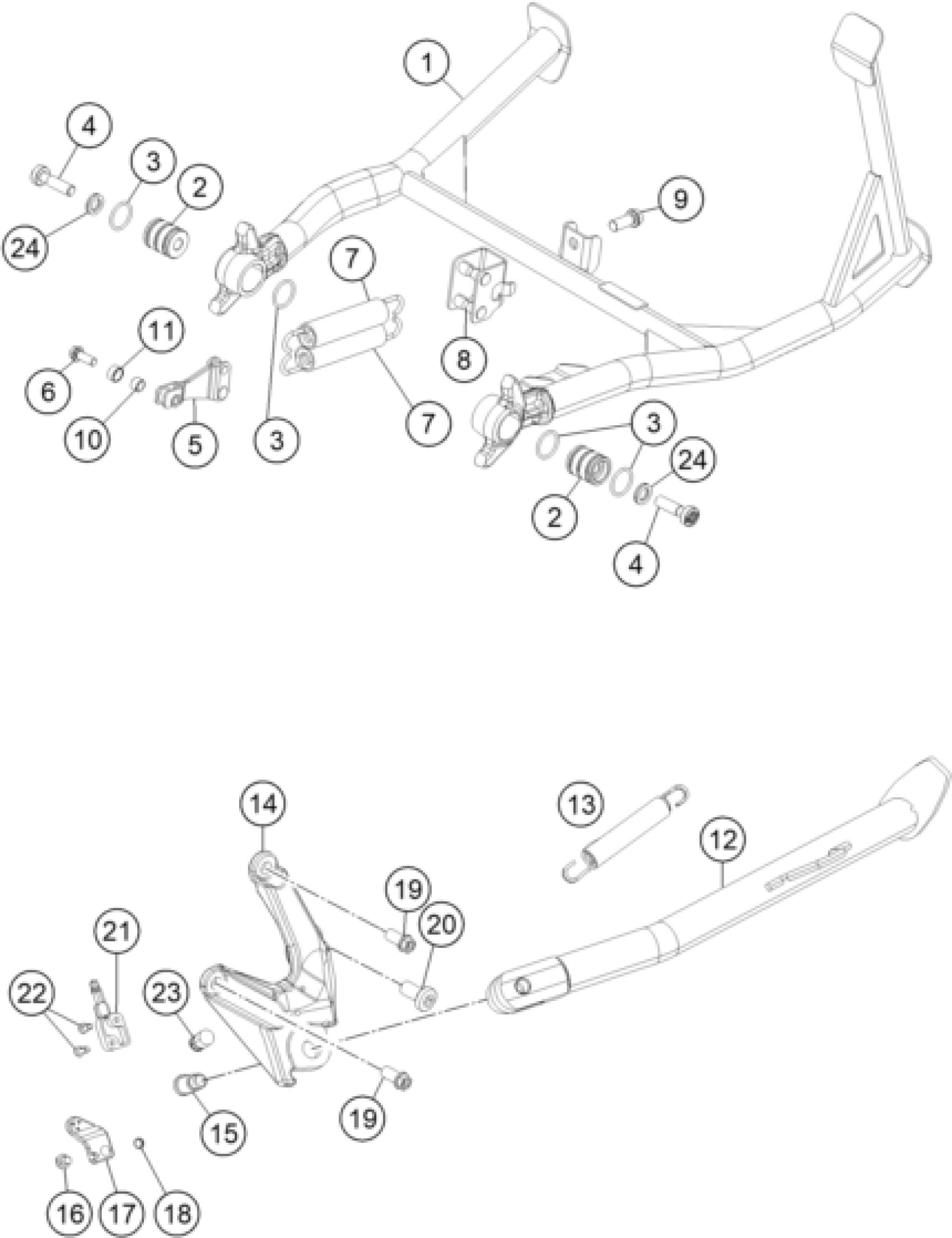

KTM 1190 ADVENTURE R ABS 2015 SIDE / CENTER STAND Diagram

#

Description
Price

1

CENTER STAND

6030302210030

Unavailable

2

BUSHING SUPPORT CENTRAL

60303022007

Unavailable

3

o-ring 18.00x2.00 NBR70

0770180020

Unavailable

4

SCREW M8X35 ISA45 SS

0035080356S

Unavailable

5

SPRING SUPPORT FRONT CPL.

60303022025

Unavailable

6

HH collar screw M6x16 TX30

0025060166

Unavailable

7

SIDESTAND SPRING L=118MM

60303030100

Unavailable

8

SPRING SUPPORT REAR CPL.

60303022026

Unavailable

9

HH collar screw M8x20

0025080206

Unavailable

10

BUSHING SPRINGSUPPORT FRONT

60303022031

Unavailable

11

BUSHING SPRING SUPPORT FRONT

60303022032

Unavailable

12

SIDE STAND CPL.

6030302310030

Unavailable

13

SIDE STAND SPRING

60303024100

Unavailable

14

SIDE STAND BRACKET

6030302610033S

Unavailable

15

Screw for side stand M10x31.2

62503027200

Unavailable

16

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

17

MAGNET HOLDER

60303029050

Unavailable

18

BUSHING MAGNET HOLDER

60303029051

Unavailable

19

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

20

AH collar screw M10x30 ISA45

0035100309S

Unavailable

21

Side stand sensor

61011045000

Unavailable

22

CYL.HEAD SCREW DIN84A M4x12

0084040123

Unavailable

23

RETAINING BOLT

60303023111

Unavailable

24

NORDLOCK WASHERS M8

60303022035

Unavailable
