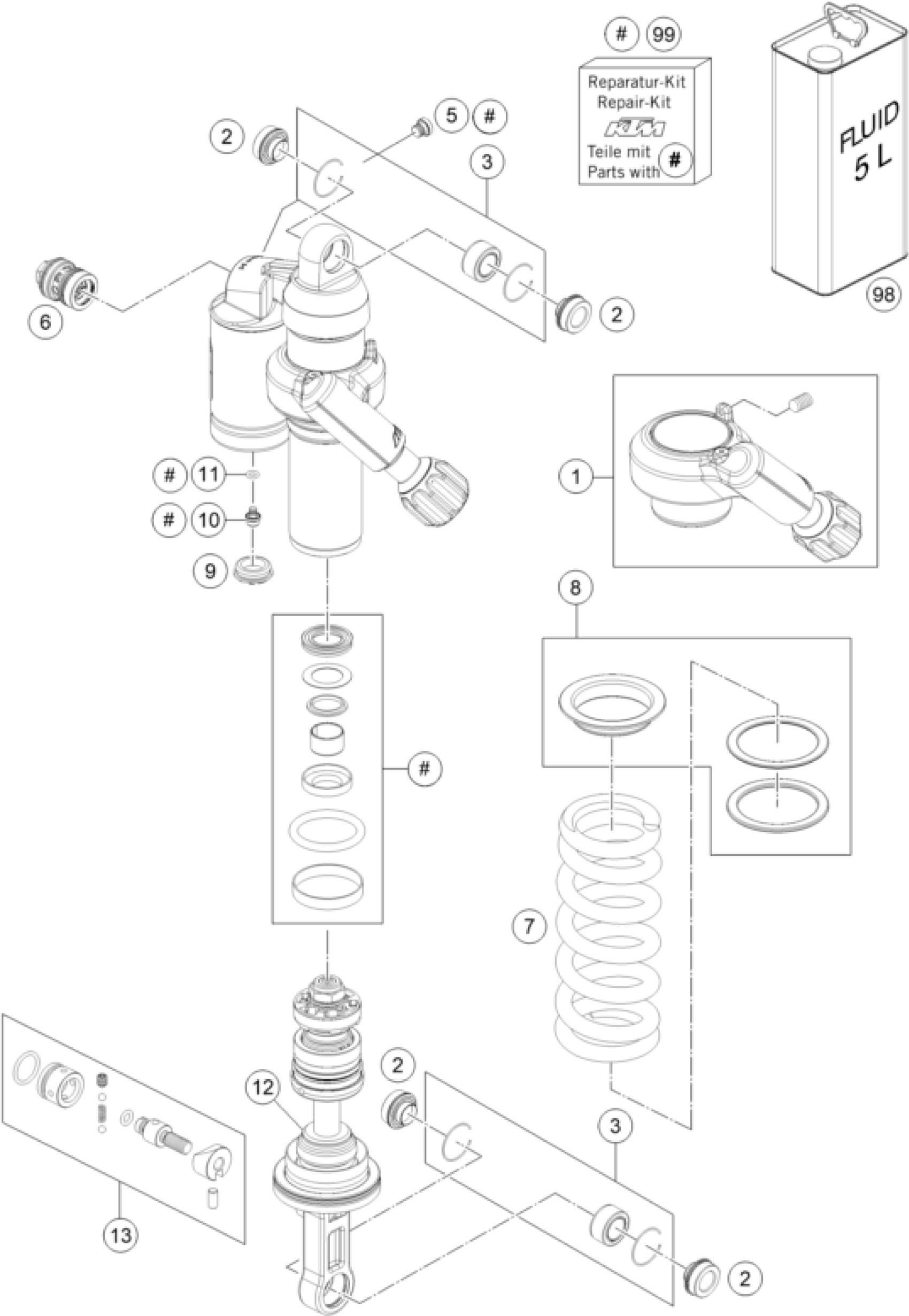

KTM 1190 ADVENTURE R ABS 2015 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description

Price

1

POWER ADJUSTER CPL. WITH SCREW

15000M01S1

$659.82

2

Bearing bush 14x15/23,5x14,45

46181307E

$12.45

3

Ball joint bearing kit top 12m

R12012

$35.71

5

HS cylinder-head screw R1/8 l8

50180095

$2.42

6

Compression cpl.

50180213S6

$333.34

7

SPRING (59) 180-205

91010333S

$132.19

8

REPAIR KIT GASKET BOTTOM

R15015

$58.71

9

Rubber cap do not open 22x5,5

46811208

$3.08

10

HS lock screw M5x6

36120151

$1.86

11

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

12

Rubber pad 17x50x54

50181080

$23.65

13

TAP ADJ. REBOUND

46180522S1

$50.11

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

$149.59

99

Rep. kit gasket rings

R15021

Unavailable
