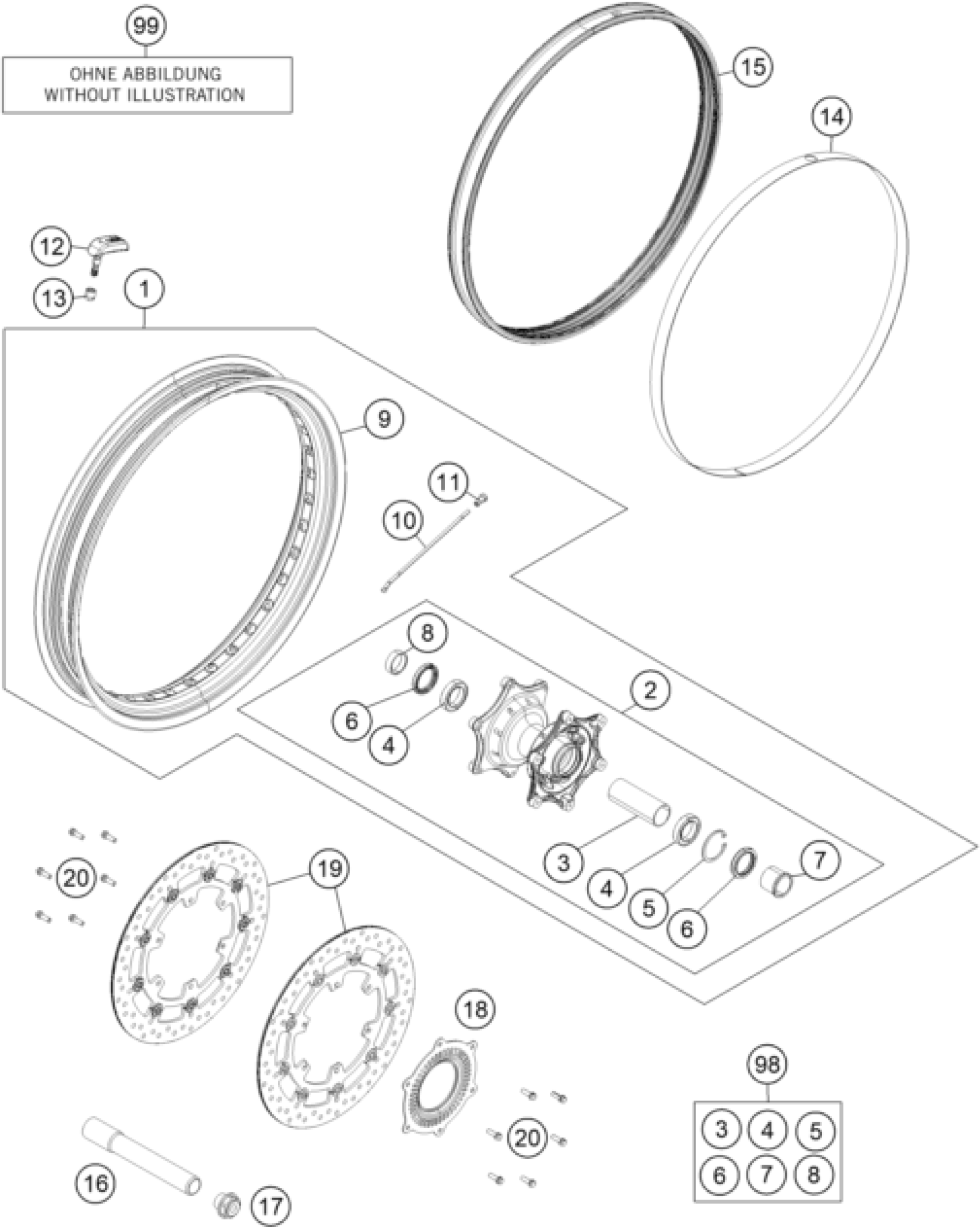

KTM 1190 ADVENTURE R ABS 2015 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL CPL. 2,5X21''

6030900114430

Unavailable

2

FRONT WHEEL HUB CPL. BLACK

6030901004433

Unavailable

3

BUSHING SPACER TUBE FRONT

60309011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

7

SPACER BUSH. FRONT WHEEL LEFT

60309012000

Unavailable

8

Spacer bush. fr. whee R/S 03

60009013000

Unavailable

9

RIM 2,5''X21'' TUBLESS BLACK

6030917020030

Unavailable

10

SPOKE 5/4.37/M5

60309071000

Unavailable

11

SPOKE NIPPLE QUADRAX M5

60310072100

Unavailable

12

TIRE AIR PRESSURE SENSOR

60312033000

Unavailable

13

NUT AIR PRESSURE SENSOR

60312033050

Unavailable

14

RIM BAND 21''

60309073100

Unavailable

15

GASKET RUBBER 2.5''X21''

60309177000

Unavailable

16

AXLE FRONT

60309081000

Unavailable

18

Phonic wheel ABS

60342020000

Unavailable

20

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

Unavailable

98

FRONT WHEEL REP. KIT ADV 13-14

60309015000

Unavailable

17

STEERING HEAD SCREW 09

6900103600001

Unavailable

19

BRAKE DISC FRONT D=320X4,5

6030906000030

Unavailable

99

VALVE KIT AIR PRESSURE SENSOR

60312034044

Unavailable
