Description

Price

1

Fork ADVENTURE R 2014

14188N2501

$2,120.49

2

HH collar screw M8x20 TX40 SL

0025080206S

$2.05

3

TOP TRIPLE CLAMP

6030103403233S

$165.05

4

BOTTOM TRIPLE CLAMP CPL.

6030103203233S

$293.16

5

STEER.HEAD SCREW M22X1,5 SW27

6030103600001

$15.61

6

AH-COLLAR SCREW M8X35 ISA45

0035080356

$4.11

7

STEER.HEAD NUT

57301036100

$21.96

8

STEERING HEAD COVER 05

61001086000

$13.92

9

STEARING HEAD GASKET TOP

54601184000

$7.10

10

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

11

HH collar screw M8x25

0025080256

$2.05

12

HANDLEBAR CLAMP 28MM

7720103800030

$21.03

13

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

14

HANDLEB.SUPP. D=28MM H=37MM

5940103903730

$36.55

15

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

16

STEERING DAMPER CPL.

16181N53ES

$173.43

17

CLAMP STEERING DAMPER

6031200700033S

$56.93

18

TRIPLECLAMP-FACEPLATE BELOW

60308024200

$16.54

19

HH collar screw M6x13 TX30

0024060136

$3.08

20

HH collar screw M8x20 TX40 SL

0025080206S

$2.05

21

HORN

60311060100

$39.82

22

REPAIR-KIT STEERING DAMPER

R14038

$16.43

25

EJOT PT screw K50x12

0081050121

$2.05

98

STEARING HEAD REP. KIT ADV 13

60301081010

Unavailable

99

HANDLEBAR SUPPORT KIT ADV.1190

00050000927

Unavailable

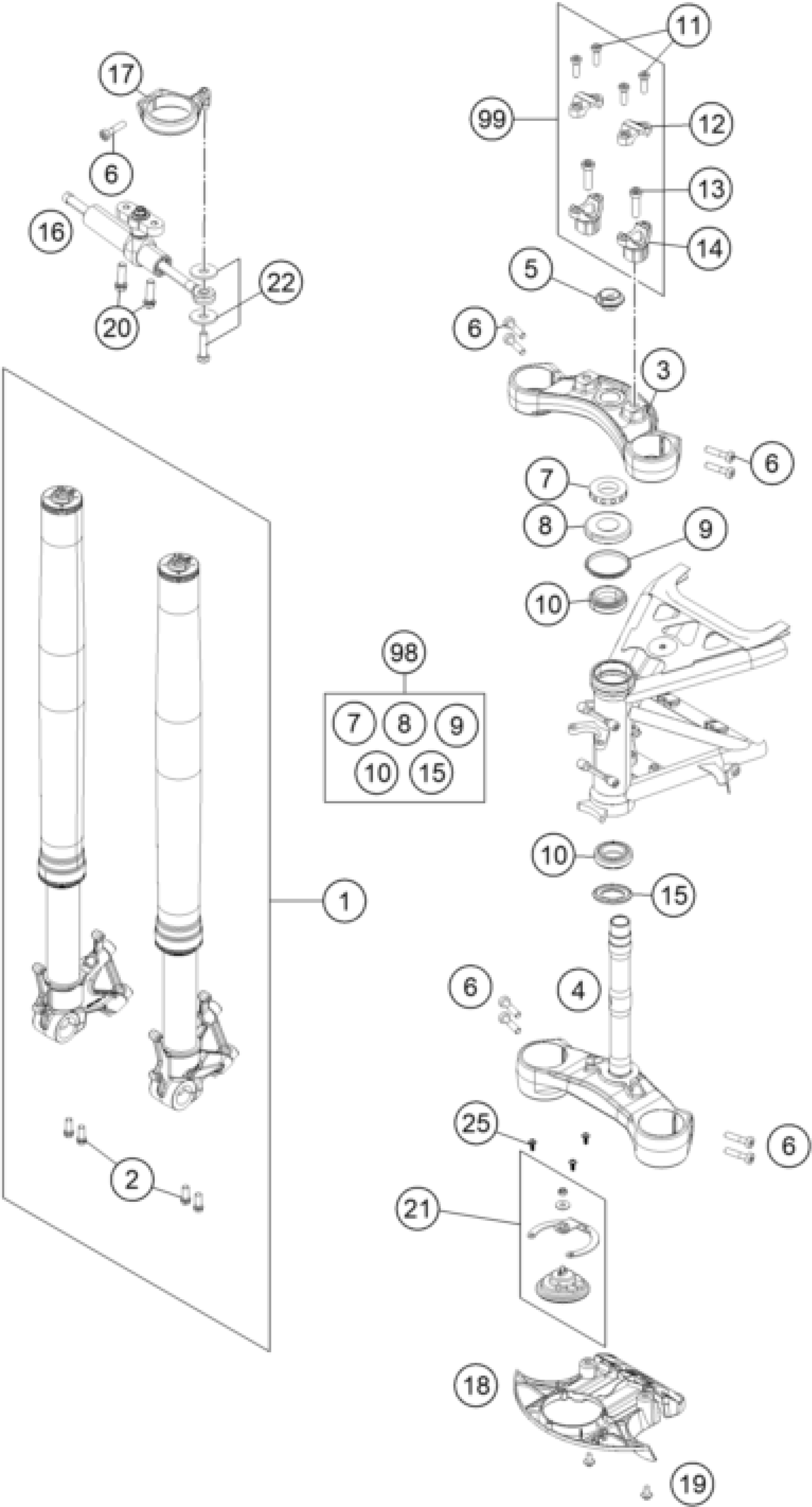

KTM 1190 ADVENTURE R ABS 2015 FRONT FORK, TRIPLE CLAMP Diagram

Fork ADVENTURE R 2014

HH collar screw M8x20 TX40 SL

TOP TRIPLE CLAMP

BOTTOM TRIPLE CLAMP CPL.

STEER.HEAD SCREW M22X1,5 SW27

AH-COLLAR SCREW M8X35 ISA45

STEER.HEAD NUT

STEERING HEAD COVER 05

STEARING HEAD GASKET TOP

TAPERED ROLLER BEARING CPL. 06

HH collar screw M8x25

HANDLEBAR CLAMP 28MM

AH-COLLAR SCREW M10X35 ISA45

HANDLEB.SUPP. D=28MM H=37MM

O-RING SUPPORT W. SEALING LIP

STEERING DAMPER CPL.

CLAMP STEERING DAMPER

TRIPLECLAMP-FACEPLATE BELOW

HH collar screw M6x13 TX30

HH collar screw M8x20 TX40 SL

HORN

REPAIR-KIT STEERING DAMPER

EJOT PT screw K50x12

STEARING HEAD REP. KIT ADV 13

HANDLEBAR SUPPORT KIT ADV.1190
