Description

Price

3

SCREW CAP M51X1.5 REB

48600431S3

$120.98

4

SCREW CAP M15X1.5 COM

48600431S4

$107.39

5

O-ring 45x2 NBR70 siliconized

46810340

$1.49

6

spring tensioner SET

R14026

$77.32

7

Cardridge kit cmpl. r/s

48601293S3

$353.12

8

Cardridge kit cmpl. l/s

48601294S3

$353.12

9

SPRING KIT

91410080S1

$131.94

10

AXLE CLAMP WITH INNER TUBE

48601304S1

$593.81

11

AXLE CLAMP WITH INNER TUBE

48601305S1

$593.81

12

Fork outer tube 49,13x600 dt54

48601174

$390.17

13

GASKET KIT CPL.

R14040

$66.75

14

Guide bushing 48x52x12

48601009

$12.05

15

Guide bushing 47x49x20

48601008

$12.05

16

pilot bushing set

R14028

$25.70

18

AH SCREW M10X20 SET

00501020S1

$11.49

97

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

99

REP. KIT ADV. 2013

R14037

Unavailable

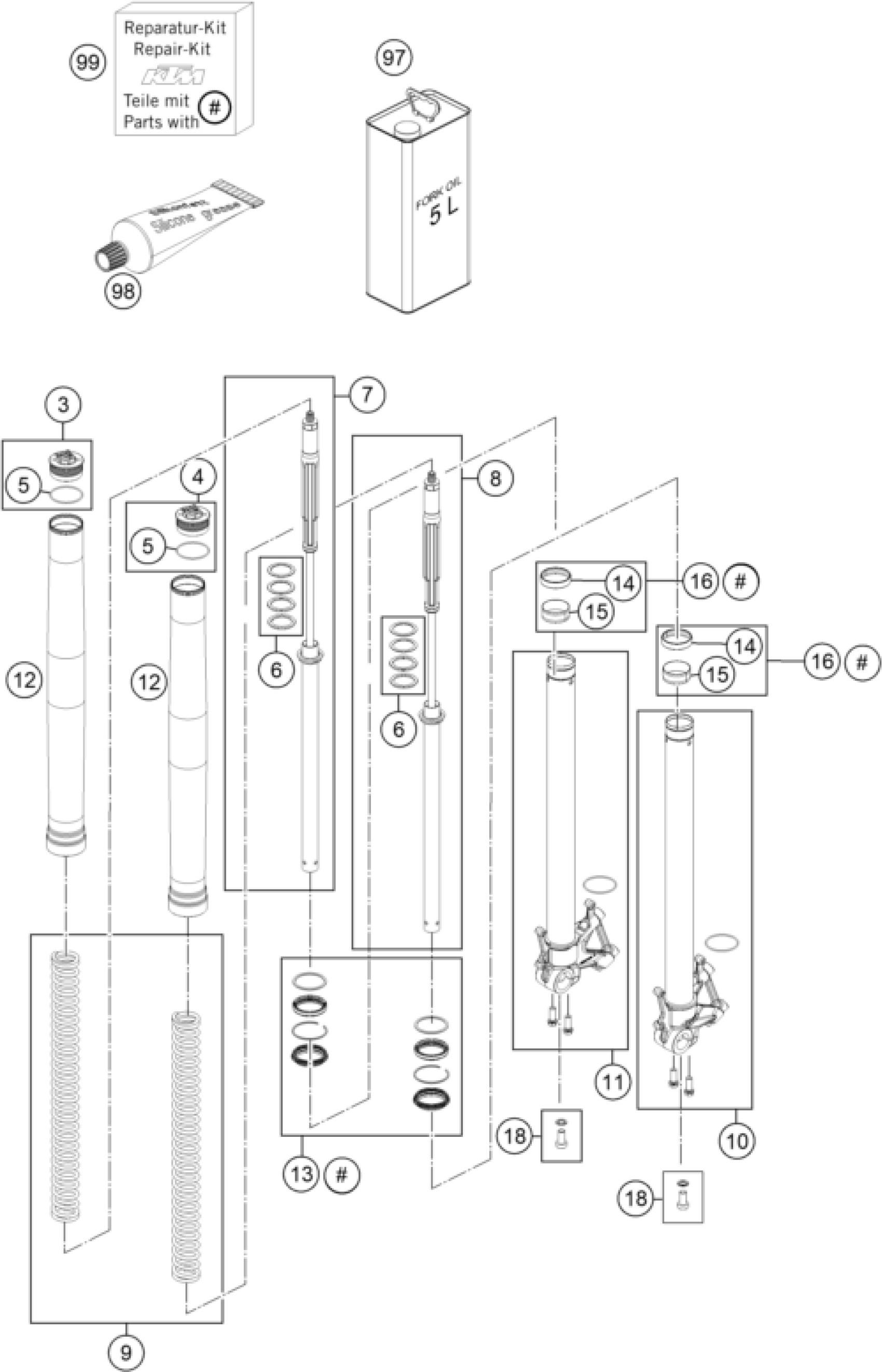

KTM 1190 ADVENTURE R ABS 2015 FRONT FORK DISASSEMBLED Diagram

SCREW CAP M51X1.5 REB

SCREW CAP M15X1.5 COM

O-ring 45x2 NBR70 siliconized

spring tensioner SET

Cardridge kit cmpl. r/s

Cardridge kit cmpl. l/s

SPRING KIT

AXLE CLAMP WITH INNER TUBE

AXLE CLAMP WITH INNER TUBE

Fork outer tube 49,13x600 dt54

GASKET KIT CPL.

Guide bushing 48x52x12

Guide bushing 47x49x20

pilot bushing set

AH SCREW M10X20 SET

Fork Fluid Viscosity 4.0 5L

SILICONE GREASE F. DUST STRI

REP. KIT ADV. 2013
