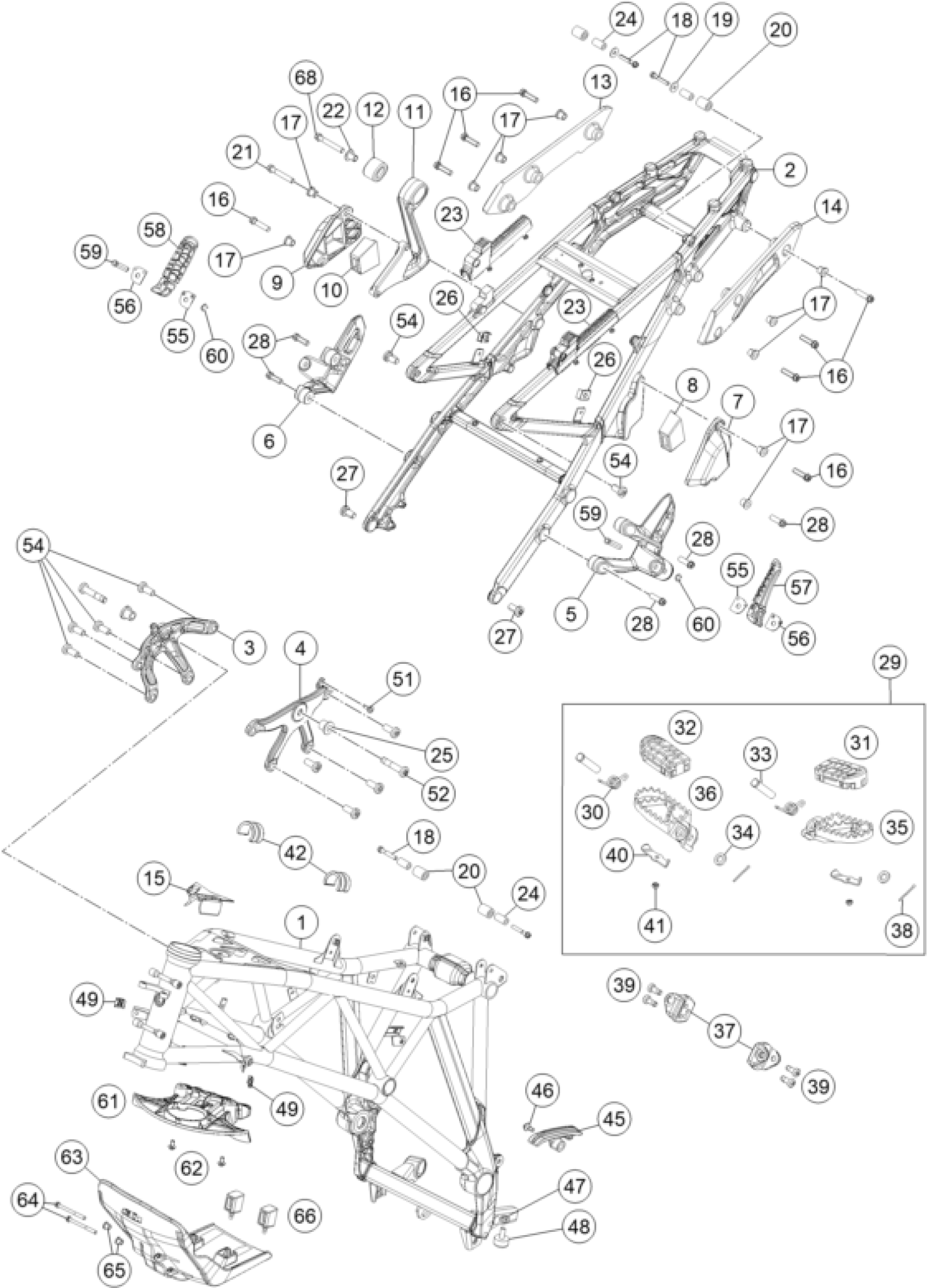

KTM 1190 ADVENTURE R ABS 2015 FRAME Diagram

#

Description
Price

1

FRAME ''603 OA'' ORANGE

6030300120004

Unavailable

2

SUB FRAME

6030300200033

Unavailable

3

ENGINE SUPPORT R/S BLACK

6030300600033S

Unavailable

4

ENGINE SUPPORTL/S BLACK

6030300500033S

Unavailable

5

FOOTR. SUP. REAR L/S BLACK

6030304800033S

Unavailable

6

FOOTR. SUP. REAR R/S BLACK

6030304900033S

Unavailable

7

SUITCASE HOOK L/S

60312010050

Unavailable

8

DAMPING RUBBER SUITCASE HOOK

60312010060

Unavailable

9

SUITCASE HOOK R/S

60312011050

Unavailable

10

DAMPING RUBBER SUITCASE HOOK

60312011060

Unavailable

11

EXHAUST BRACKET

6030508400033S

Unavailable

12

DAMPING RUBBER

61305068000

Unavailable

13

CASE BAR R/S

60312021250

Unavailable

14

CASE BAR L/S

60312020250

Unavailable

16

HH collar screw M8x35 TX40

0025080356

Unavailable

17

SPACER BUSHING 13X17X8,2

60303002058

Unavailable

18

HH collar screw M6x30 TX30

0025060306

Unavailable

19

Washer DIN9021-A 6.4

0021060003

Unavailable

20

RUBBER SEAT-CONTACT SURFACE

60307048000

Unavailable

21

HH collar screw M8x50 TX40

0025080506

Unavailable

22

BUSHING

60305069000

Unavailable

23

PLATE RUBBER SEAT

60307040041

Unavailable

24

BUSH 6.2X12X21.5

60307049000

Unavailable

25

SPACER BUSH ENGINE SUPPORT

60303007000

Unavailable

26

clip nut M6

54603048100

Unavailable

27

AH collar screw M10x20 ISA45

0035100209

Unavailable

28

HH collar screw M8x25

0025080256

Unavailable

29

FOOTPEG LS+RS CPL.

60003040133

Unavailable

30

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

31

FOOTREST RUBBER FRONT L/S 03

60003040010

Unavailable

32

FOOTREST RUBBER FRONT R/S 03

60003041010

Unavailable

33

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

34

washer DIN 125 A 10.5

0125100003

Unavailable

35

FOOT PEG L/S SILVER 02

59003040250

Unavailable

36

FOOT PEG R/S SILVER 02

59003041250

Unavailable

37

FOOTREST MOUNTING

6030310109533S

Unavailable

38

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

39

HH collar screw M8x16 TX40 SL

0025080166S

Unavailable

40

CLOSING PANEL FRONT L/S R/S 03

60003044010

Unavailable

41

Self locking nut DIN 985 M5

0985050003

Unavailable

42

SPACER FUEL TANK 05

61007014000

Unavailable

45

CHAIN GUIDE

60303070000

Unavailable

46

HH collar screw M6x15 TX30

0024060156

Unavailable

47

Hexagon nut DIN934 M8

0934080003

Unavailable

48

BUMP RUBBER M8X25MM

58303070100

Unavailable

49

RANGE CHANGE METAL NUT M5

54603048200

Unavailable

51

special screw M5x12

69008021160

Unavailable

52

AH collar screw M10x50 ISA45

0035100509S

Unavailable

54

AH collar screw M10x24 ISA45

0035100249

Unavailable

55

ENGAGE PANEL FOOTREST L/S 03

60003152000

Unavailable

56

ENGAGE PANEL FOOTREST R/S 03

60003052000

Unavailable

57

FOOTREST CPL. L/S REAR 03

60003050000

Unavailable

58

Footrest cmpl. r/s rear 03

60003051000

Unavailable

59

footrest bolt, rear

60003044100

Unavailable

60

retaining washer DIN 6799 - 6

0799060003

Unavailable

61

TRIPLE CLAMP COVER LOWER SIDE

60308024000

Unavailable

62

HH collar screw M6x13 TX30

0024060136

Unavailable

64

HH collar screw M6x40 TX30

0025060406

Unavailable

65

COLLAR BUSHING 6,3X8X13X9,5

45239060050

Unavailable

66

VIBRATION DAMPER 03

60003096000

Unavailable

63

SKID PLATE ADV

6030319000030

Unavailable

15

STEARING HEAD COVER

60303003010

Unavailable

68

countersunk screw M8x45 TX45

0019080456

Unavailable
