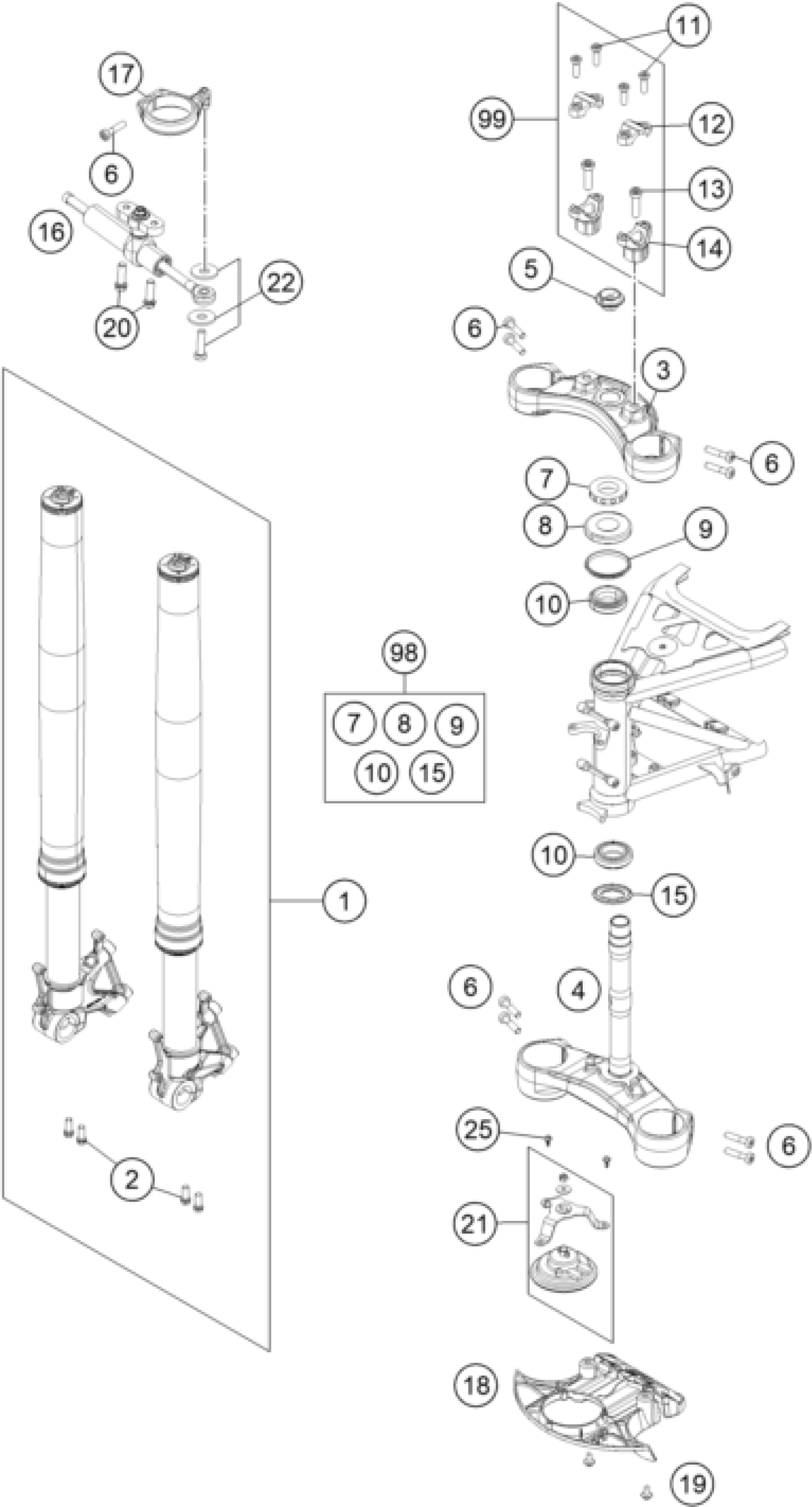

KTM 1190 ADVENTURE R ABS 2014 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork ADVENTURE R 2014

14188N2501

Unavailable

12

HANDLEBAR CLAMP 28MM

7720103800030

Unavailable

2

HH collar screw M8x20 TX40 SL

0025080206S

Unavailable

3

TOP TRIPLE CLAMP

6030103403233S

Unavailable

4

BOTTOM TRIPLE CLAMP CPL.

6030103203233S

Unavailable

5

STEER.HEAD SCREW M22X1,5 SW27

6030103600001

Unavailable

6

AH-COLLAR SCREW M8X35 ISA45

0035080356

Unavailable

7

STEER.HEAD NUT

57301036100

Unavailable

8

STEERING HEAD COVER 05

61001086000

Unavailable

9

STEARING HEAD GASKET TOP

54601184000

Unavailable

10

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

11

HH collar screw M8x25

0025080256

Unavailable

13

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

14

HANDLEB.SUPP. D=28MM H=37MM

5940103903730

Unavailable

15

O-RING SUPPORT W. SEALING LIP

77701084000

Unavailable

16

STEERING DAMPER CPL.

16181N53ES

Unavailable

17

CLAMP STEERING DAMPER

6031200700033S

Unavailable

18

TRIPLECLAMP-FACEPLATE BELOW

60308024100

Unavailable

19

HH collar screw M6x13 TX30

0024060136

Unavailable

20

HH collar screw M8x20 TX40 SL

0025080206S

Unavailable

21

HORN CPL.

60311060000

Unavailable

22

REPAIR-KIT STEERING DAMPER

R14038

Unavailable

25

EJOT PT screw K50x12

0081050121

Unavailable

99

HANDLEBAR SUPPORT KIT ADV.1190

00050000927

Unavailable

98

STEARING HEAD REP. KIT ADV 13

60301081010

Unavailable
