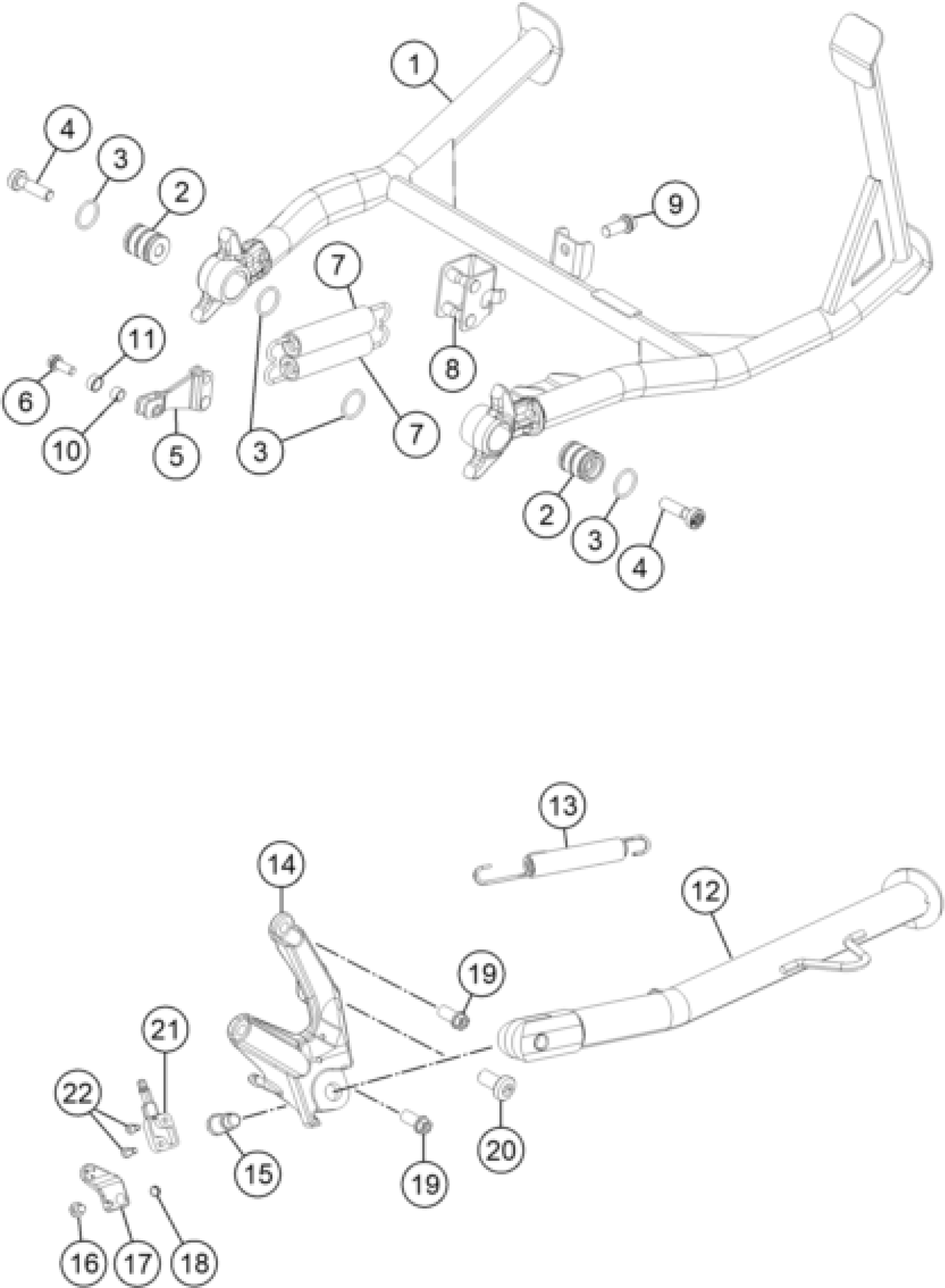

KTM 1190 ADVENTURE R ABS 2013 SIDE / CENTER STAND Diagram

#

Description
Price

4

AH collar screw M8x30 ISA45

0035080306S

$3.08

7

SIDESTAND SPRING L=118MM

60303030000

Unavailable

9

HH collar screw M8x20

0025080206

$2.05

8

SPRING SUPPORT REAR CPL.

60303022026

$52.35

6

HH collar screw M6x16 TX30

0025060166

$3.08

10

BUSHING SPRINGSUPPORT FRONT

60303022031

$5.23

11

BUSHING SPRING SUPPORT FRONT

60303022032

$5.23

14

SIDE STAND BRACKET

6030302600033S

Unavailable

21

Side stand sensor

61011045000

$59.64

13

SIDE STAND SPRING

60303024200

Unavailable

12

SIDE STAND L=308MM

6030302300030

Unavailable

18

BUSHING MAGNET HOLDER

60303029051

$1.49

17

MAGNET HOLDER

60303029050

$8.31

16

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

15

Screw for side stand M10x31.2

62503027200

$6.72

22

CYL.HEAD SCREW DIN84A M4x12

0084040123

$1.49

20

AH collar screw M10x30 ISA45

0035100309S

$3.08

19

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

1

CENTER STAND

6030302200030

Unavailable

5

SPRING SUPPORT FRONT CPL.

60303022025

$52.54

2

BUSHING SUPPORT CENTRAL

60303022007

$15.89

3

o-ring 18.00x2.00 NBR70

0770180020

$2.05
