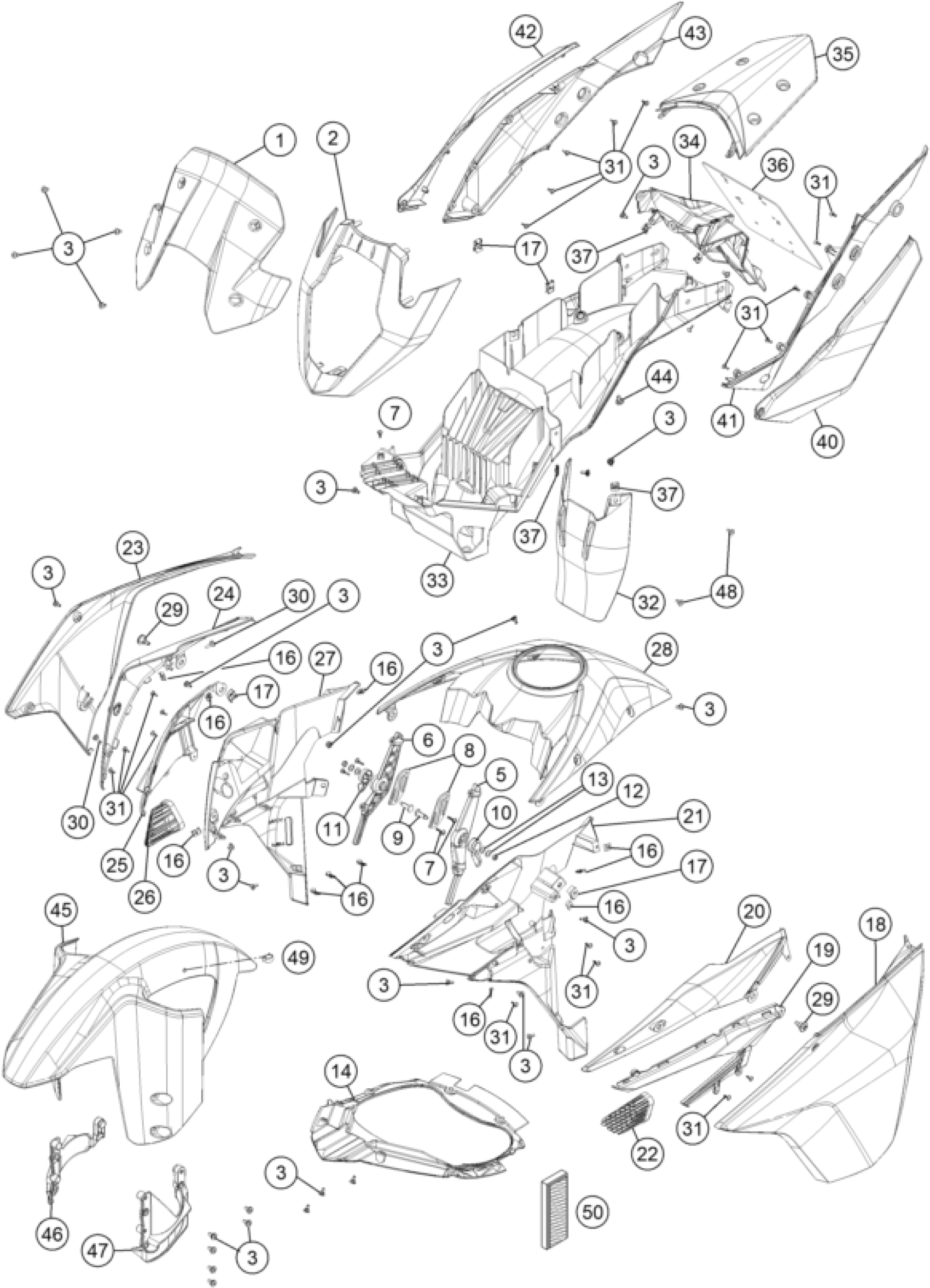

KTM 1190 ADVENTURE R ABS 2013 MASK, FENDERS Diagram

#

Description
Price

1

WIND SHIELD SHORT

60308008500

Unavailable

2

HEADLIGHT MASK WHITE

6030800100028A

$169.23

3

special screw M5x12

69008021160

$4.11

5

WIND SHIELD SUPPORT L/S

60308008050

$19.16

6

WIND SHIELD SUPPORT R/S

60308008051

$22.43

7

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

8

SLIDING SHEET WIND SHIELD

60308008055

$6.63

9

TENSION BOLT

60308008056

$11.02

10

TENSION LEVER L/S

60308008052

$6.35

11

TENSION LEVER R/S

60308008053

$6.35

12

Self lock. nut DIN985-M6-A2

0985060003

$2.05

13

BELLEVILLE SPRING 8,2X15X0,8

0093081508

$1.49

14

COCKPIT COVER LOWER SIDE

60308005000

$19.37

16

clip nut M5

69008021080

$3.08

17

clip nut M6

54603048100

$4.11

21

INNER COVER LEFT

60308025000

$28.72

18

SPOILER LEFT

6030805000030A

$328.18

19

AIR INTAKE L/S

6030800205033

$16.35

20

MASK SPOILER L/S

60308002000B1A

$97.14

22

COVERING GRID AIR INTAKE L/S

60308021050

$12.15

23

SPOILER RIGHT

6030805100030A

$328.18

24

MASK SPOILER R/S

60308003000B1A

$97.14

25

AIR INTAKE R/S

6030800305033

$17.10

26

COVERING GRID AIR INTAKE RIGHT

60308031050

$11.12

27

INNER COVER RIGHT

60308026000

$28.72

28

COVER FUEL TANK WHITE

6030803000028A

$329.39

29

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

30

special screw M5x17

69008021060

$3.08

31

EJOT PT screw K50x12

0081050121

$2.05

32

SPLASH PROTECTION

60304050000

$14.58

33

TAIL END LOWER PART

60308019000

$57.96

34

NUMBER PLATE SUPPORT

60308015000

$18.97

35

REAR FENDER

6030801300033

$13.46

36

NUMBER PLATE CARRIER AUS

60012181300

Unavailable

37

RANGE CHANGE METAL NUT M5

54603048200

$5.23

40

SIDE COVER LEFT WHITE

6030804100028A

$202.89

41

REAR SIDE COVER LEFT

6030804300033

$25.89

42

SIDE COVER RIGHT WHITE

6030804200028A

$202.89

43

REAR SIDE COVER RIGHT

6030804400033

$25.89

44

SPECIAL SCREW M6X15X3

83008000015

$3.08

45

FRONTFENDER

6030811000033

$63.76

46

FENDER SUPPORT R/S

60308010020

Unavailable

47

FENDER SUPPORT L/S

60308010010

Unavailable

48

HH collar screw M8x12 TX40

0025080126

$3.08

49

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

50

SIDE REFLECTOR YELLOW 03

60012080000

$6.44
