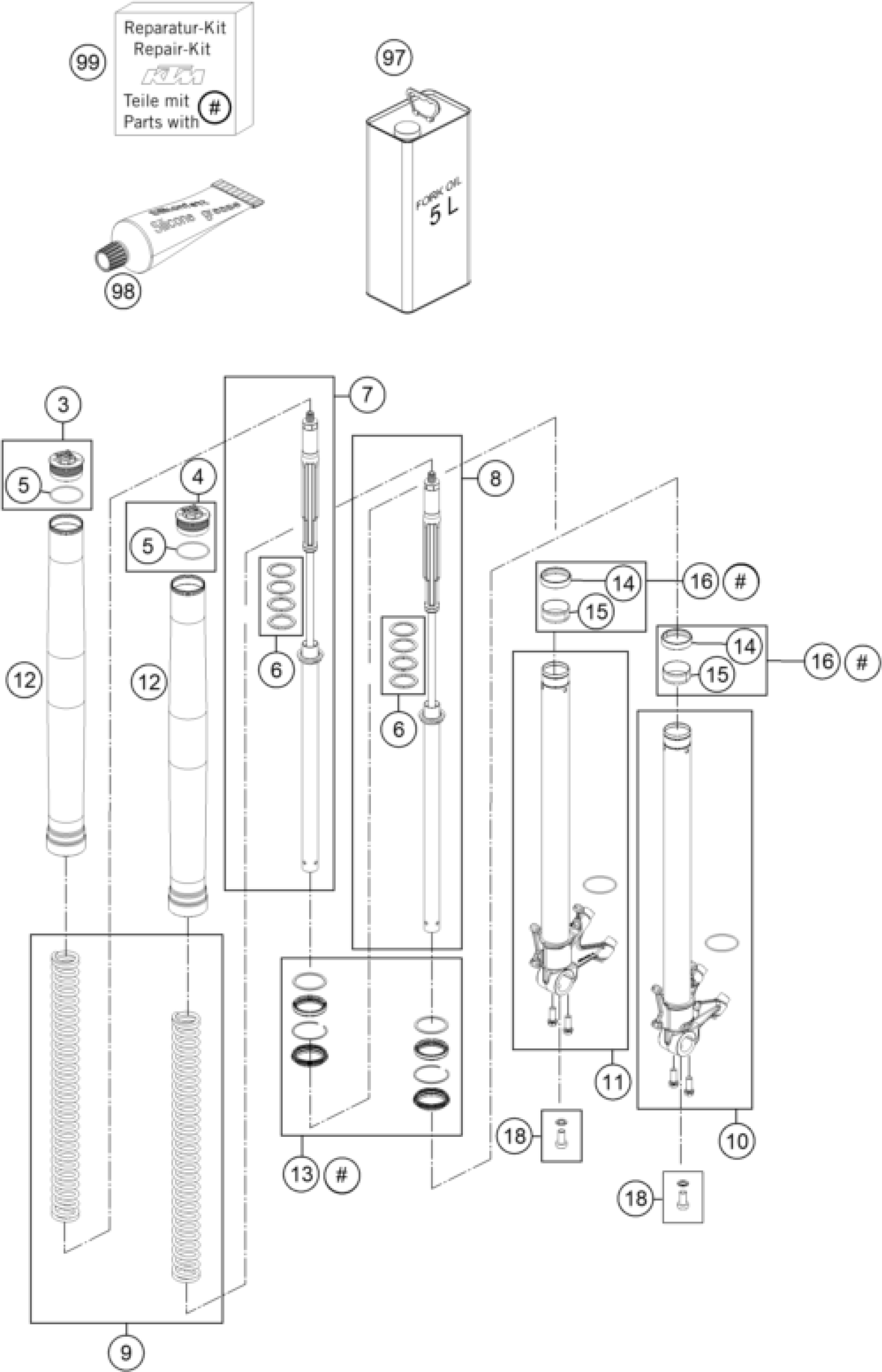

KTM 1190 ADVENTURE R ABS 2013 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

3

SCREW CAP M51X1.5 REB

48600431S3

Unavailable

4

SCREW CAP M15X1.5 COM

48600431S4

Unavailable

5

O-ring 45x2 NBR70 siliconized

46810340

Unavailable

6

spring tensioner SET

R14026

Unavailable

7

CARDRIDGE KIT CPL. R/S

48601293S1

Unavailable

8

CARDRIDGE KIT CPL. L/S

48601294S1

Unavailable

9

SPRING KIT

91410080S1

Unavailable

10

AXLE CLAMP W. INNER TUBE L/S

48601081S1

Unavailable

11

AXLE CLAMP W. INNER TUBE R/S

48601082S1

Unavailable

12

Fork outer tube 49,13x600 dt54

48601174

Unavailable

13

GASKET KIT CPL.

R14040

Unavailable

14

Guide bushing 48x52x12

48601009

Unavailable

15

Guide bushing 47x49x20

48601008

Unavailable

16

pilot bushing set

R14028

Unavailable

18

AH SCREW M10X20 SET

00501020S1

Unavailable

97

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

99

REP. KIT ADV. 2013

R14037

Unavailable
